ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

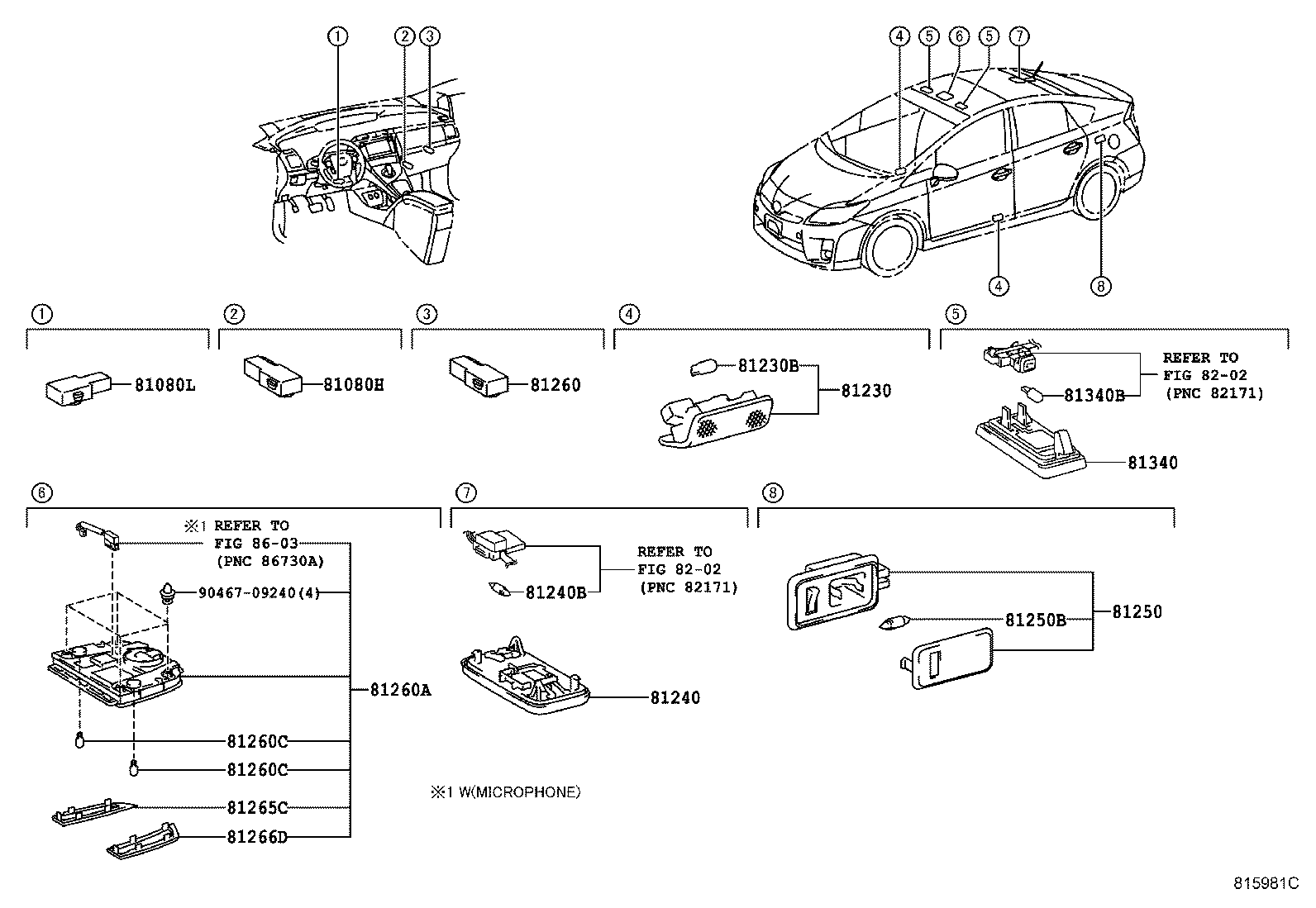

Click highlighted areas on diagram

diagram 81080H 81080L 81230 81230B 81240 81240B 81250 81250B 81260 81260A 81260C 81260C 81265C 81266D 81340 81340B 8202 8202 8603 9046709240
Part # Description Qty Price
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-48010

ZVW35..S

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

 1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-48010

ZVW35..S

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

 1
81230 - LAMP ASSY, COURTESY
81230-30200

ZVW35

 2
81230-47010

ZVW35

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ZVW35

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-60060B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
81240-60060B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ZVW35

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-58010

ZVW35

 1
81250-48010

ZVW35

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ZVW35

12V 5W

 1
99132-12050

ZVW35

12V 5W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-48010

ZVW35

 1
81260A - LAMP ASSY, MAP
81260-47140B0

ZVW35..L

MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,4#,6#

 1
81260-47150B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
81260-47150B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
81260-47140B0

ZVW35..S..USA

MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,2#,4#,6#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

ZVW35

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ZVW35

12V 5W

 2
81265C - LENS, MAP LAMP, NO.1
81265-47060

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
81265-47070

ZVW35

 1
81266D - LENS, MAP LAMP, NO.2
81266-47060

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
81266-47070

ZVW35

 1
81340 - LAMP ASSY, VANITY
81340-30110

ZVW35

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ZVW35

12V 8W

 2
Common parts
90467-09240
Linked diagrams
8202
8603
