ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

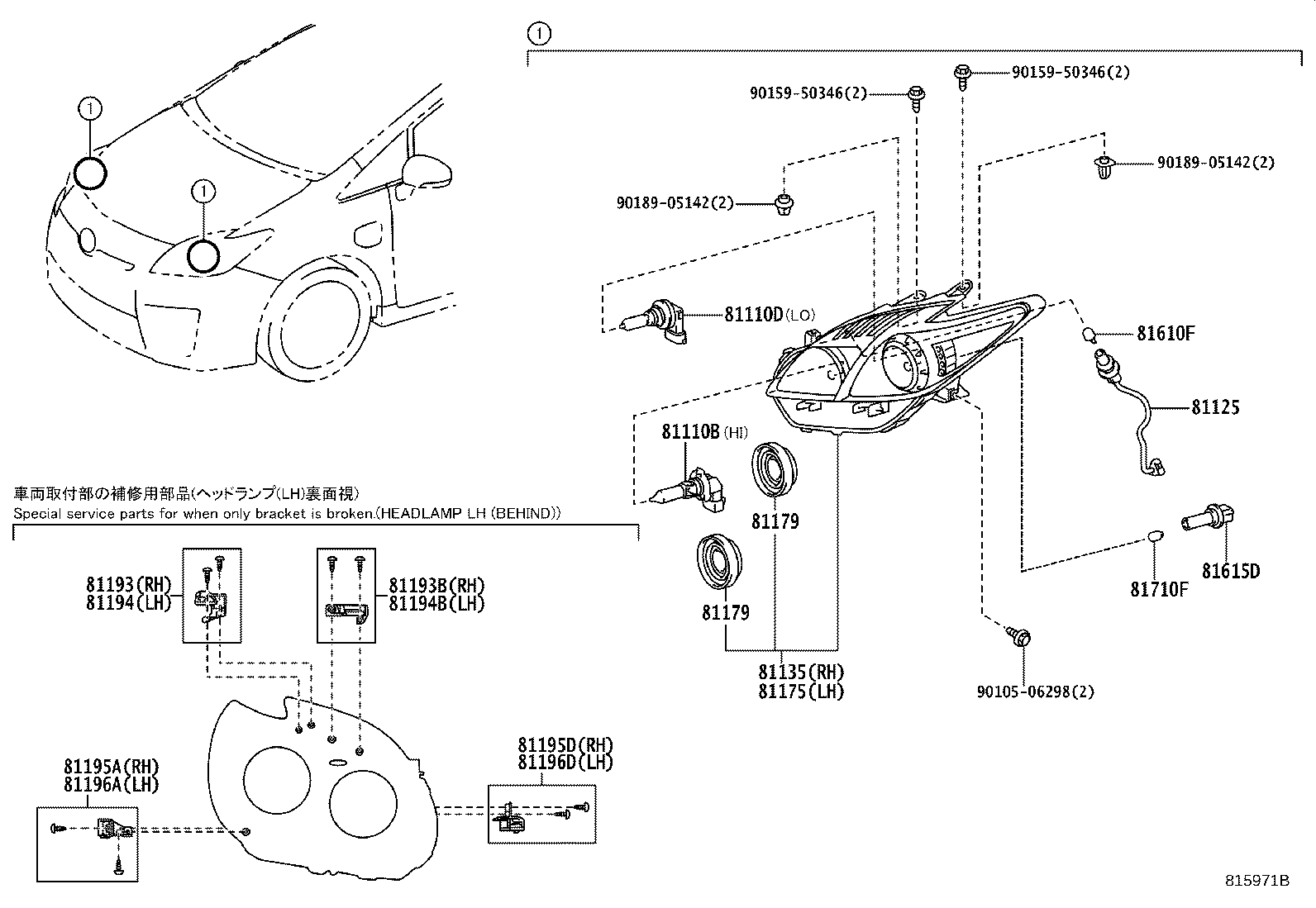

Click highlighted areas on diagram
HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ZVW35 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
ZVW35 12V 55W,HALOGEN |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-47230 |
ZVW35 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-47550 |
ZVW35 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-47550 |
ZVW35 |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZVW35 |
4 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZVW35 |
4 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-47030 |
ZVW35 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-47040 |
ZVW35 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-47030 |
ZVW35 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-47040 |
ZVW35 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-47030 |
ZVW35 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-47040 |
ZVW35 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-47030 |
ZVW35 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-47040 |
ZVW35 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZVW35 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ZVW35 |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
