ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

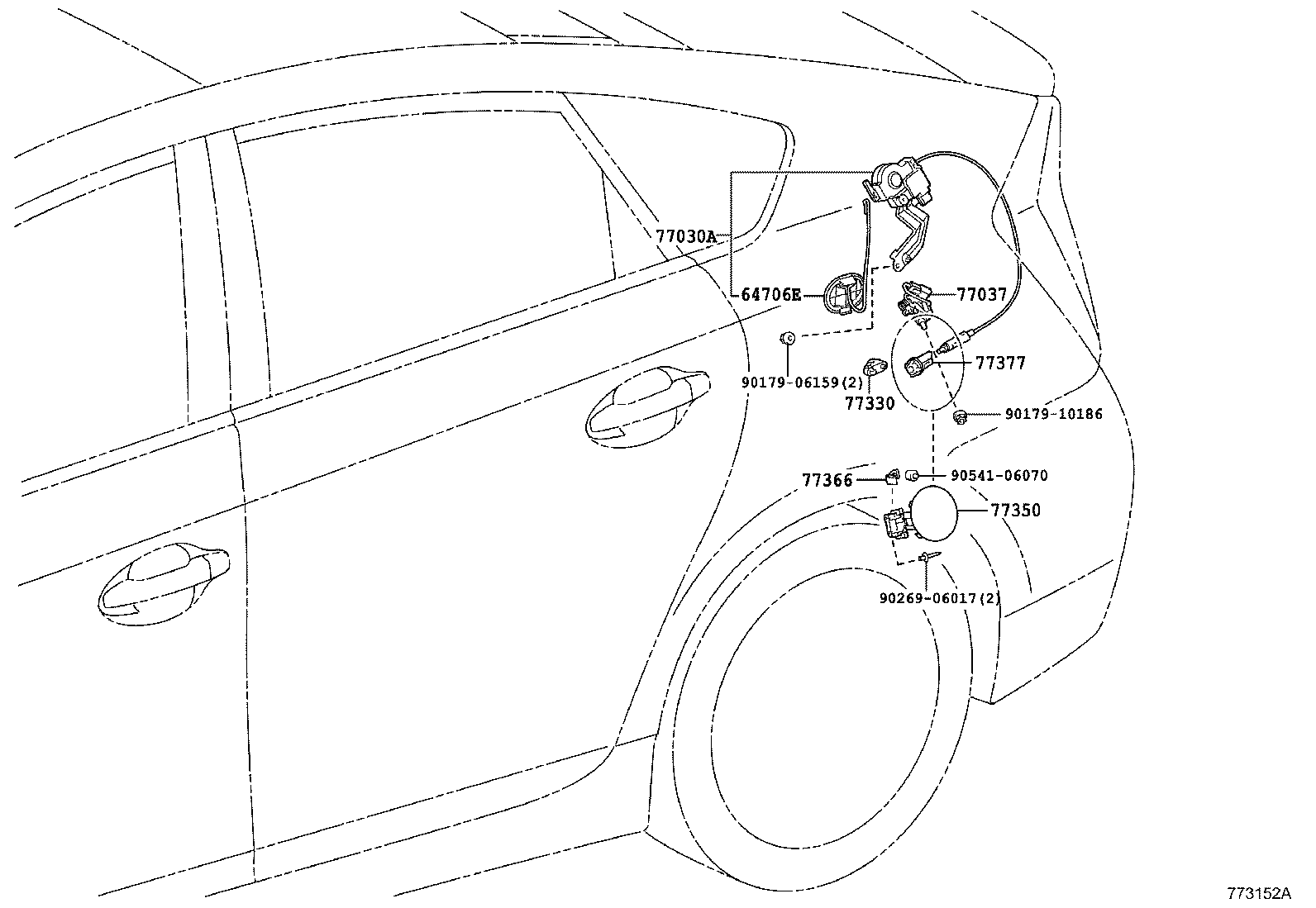

ILLUST NO. 3 OF 3(1201- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64706E - COVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64706-47020B0 |
ZVW35..G,S LT.GRAY,TRIM1#,6# |
1 | ||
| 64706-47030B0 |
ZVW35 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64706-47020B0 |
ZVW35..L LT.GRAY,TRIM1# |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-47020B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 77030-47021B0 |
ZVW35..L LT.GRAY,TRIM1# |
1 | ||
| 77030-47020B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 77030-47021B0 |
ZVW35..G,S LT.GRAY,TRIM1#,6# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-47010 |
ZVW35 |
1 | ||
| 77330 - CAP ASSY, FUEL LID SWITCH | ||||
| 77331-47010 |
ZVW35 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-47030 |
ZVW35 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
ZVW35 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 90179-10186 | ||||
| 90269-06017 | ||||
| 90541-06070 | ||||

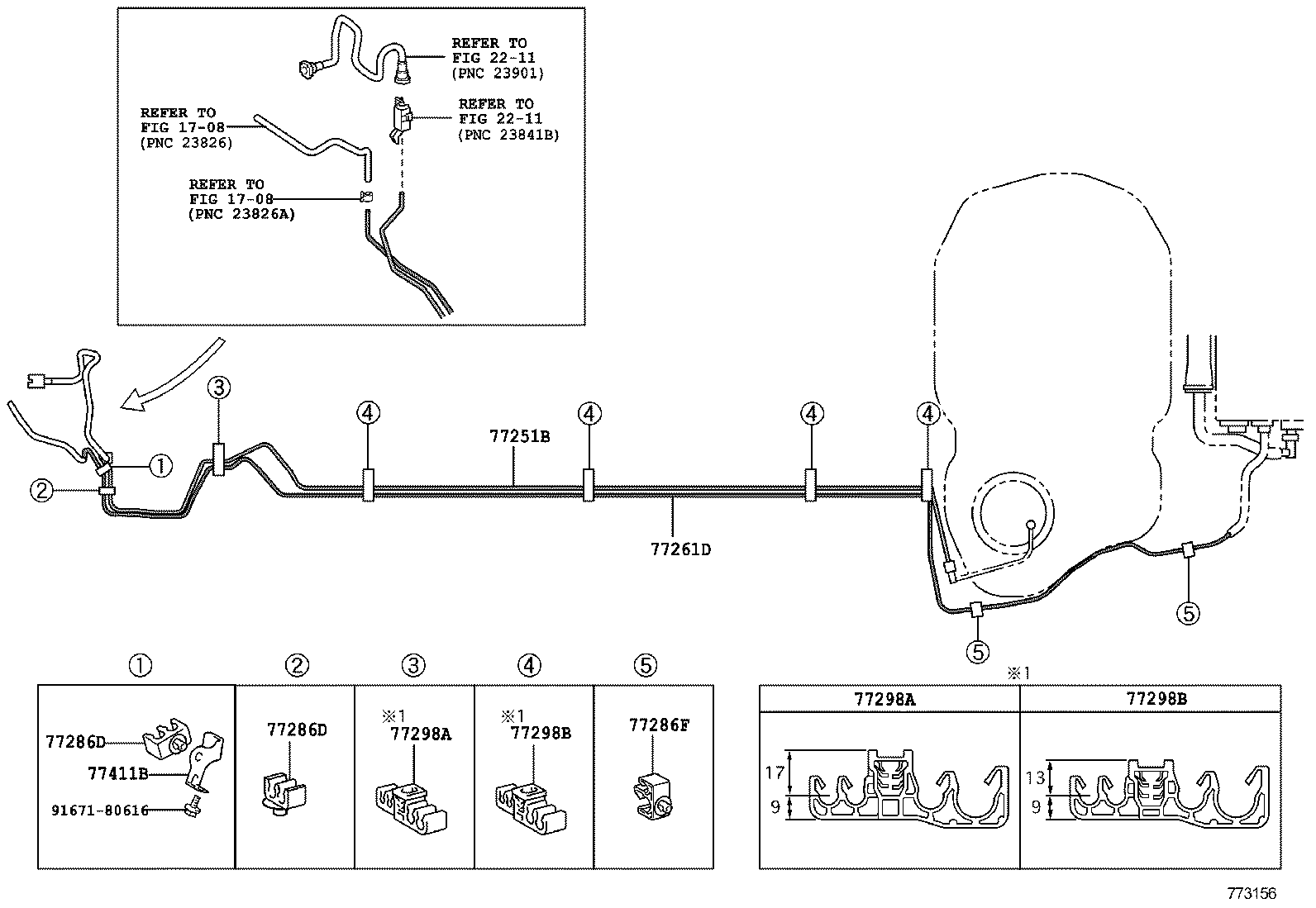

ILLUST NO. 2 OF 3(1201- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-47100 |
ZVW35 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-47080 |
ZVW35 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75010 |
ZVW35 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75010 |
ZVW35 |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75020 |
ZVW35 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-75010 |
ZVW35 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-75010 |
ZVW35 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-75020 |
ZVW35 |
4 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-75020 |
ZVW35 |
4 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

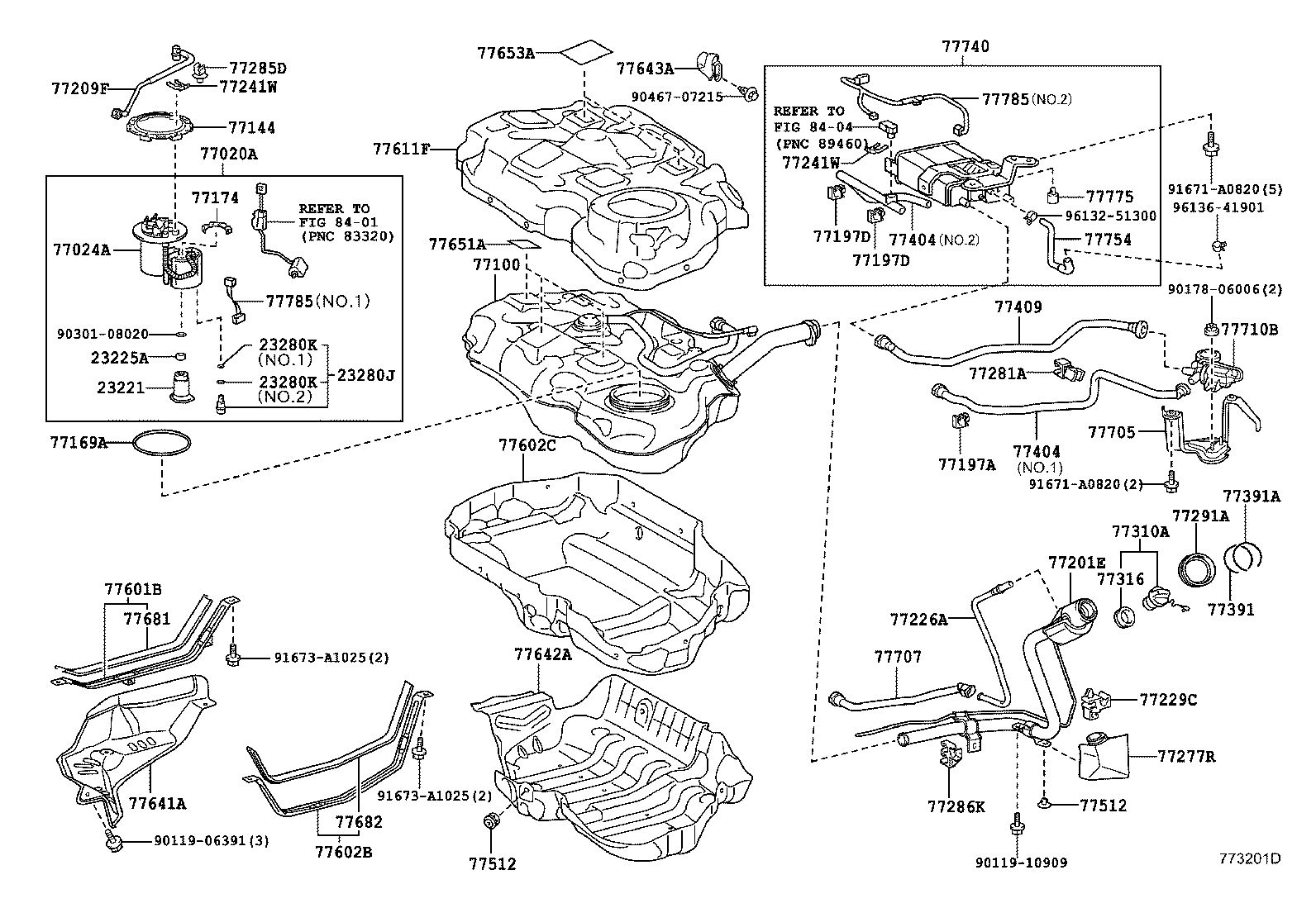

ILLUST NO. 1 OF 3(1201- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-47011 |
2ZRFXE..ZVW35 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFXE..ZVW35 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFXE..ZVW35 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 90301-04013 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 90301-04013 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-47081 |
ZVW35 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-47030 |
ZVW35 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-47210 |
ZVW35 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-47041 |
ZVW35 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
ZVW35 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-75010 |
ZVW35 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
ZVW35 |
1 | ||
| 77197D - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
ZVW35 |
3 | ||
| 77197D - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
ZVW35 |
3 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-47220 |
ZVW35 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-47051 |
ZVW35 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-47051 |
ZVW35 |
1 | ||
| 77226-47050 |
ZVW35 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-47120 |
ZVW35 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZVW35 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZVW35 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-47050 |
ZVW35 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-47130 |
ZVW35 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47090 |
ZVW35 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-47040 |
ZVW35 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-47030 |
ZVW35 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-47050 |
ZVW35 |
1 | ||
| 77300-53040 |
ZVW35 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
ZVW35 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZVW35 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-44020 |
ZVW35 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-47150 |
ZVW35 NO.1 |
1 | ||
| 77404-47160 |
ZVW35 NO.2 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-47150 |
ZVW35 NO.1 |
1 | ||
| 77404-47160 |
ZVW35 NO.2 |
1 | ||
| 77409 - HOSE SUB-ASSY, FUEL, NO.3 | ||||
| 77409-47010 |
ZVW35 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ZVW35 |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ZVW35 |
2 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-47090 |
ZVW35 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-47090 |
ZVW35 |
1 | ||
| 77602C - COVER SUB-ASSY, FUEL TANK, LOWER | ||||
| 77602-47080 |
ZVW35 |
1 | ||
| 77611F - COVER, FUEL TANK, UPPER | ||||
| 77611-47060 |
ZVW35 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-47020 |
ZVW35 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77641-47050 |
ZVW35 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77642-47040 |
ZVW35 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
ZVW35 |
3 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
ZVW35 |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-47020 |
ZVW35 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-47020 |
ZVW35 |
1 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-47010 |
ZVW35 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-47020 |
ZVW35 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-47030 |
ZVW35 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-47100 |
ZVW35 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-47080 |
ZVW35 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-47010 |
ZVW35 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-47040 |
ZVW35 NO.2 |
1 | ||
| 77785-12010 |
ZVW35 NO.1 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-47040 |
ZVW35 NO.2 |
1 | ||
| 77785-12010 |
ZVW35 NO.1 |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90178-06006 | ||||
| 90301-08020 | ||||
| 90467-07215 | ||||
| 91671-A0820 | ||||
| 91673-A1025 | ||||
| 96132-51300 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8404 | ||||
