ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

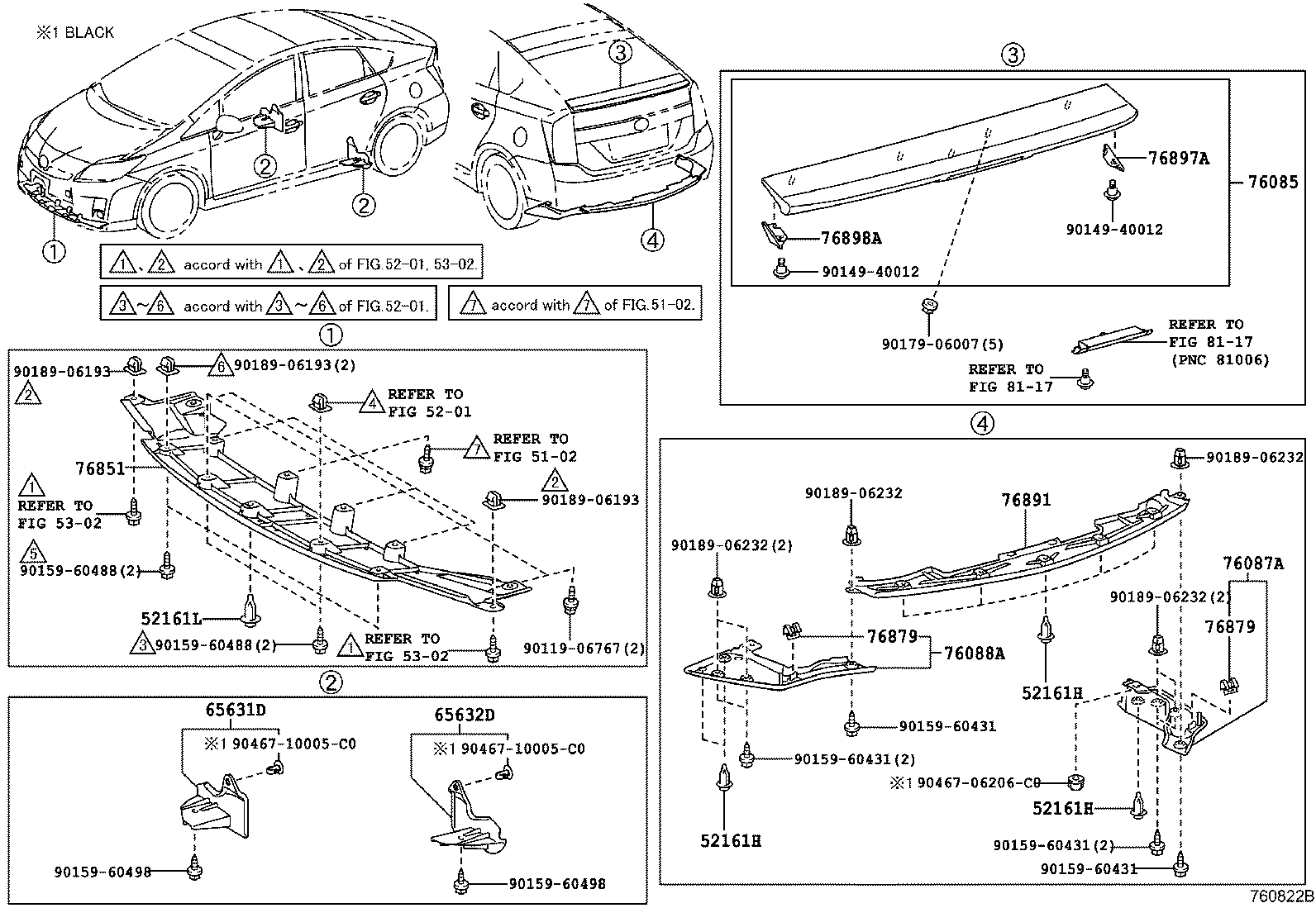

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
8 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
8 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
8 | ||
| 52161L - PIECE, FRONT SPOILER | ||||
| 52161-16010 |
ZVW35..G,S |
1 | ||
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-47070 |
ZVW35 |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-47070 |
ZVW35 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-47910 |
ZVW35 NO PAINT REQ. |
1 | ||
| 76087A - SPOILER SUB-ASSY, REAR SIDE | ||||
| 76087-47020 |
ZVW35 |
1 | ||
| 76088A - SPOILER SUB-ASSY, REAR SIDE | ||||
| 76088-47020 |
ZVW35 |
1 | ||
| 76851 - COVER, FRONT SPOILER | ||||
| 76851-47030 |
ZVW35..G,S |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-44010 |
ZVW35 |
2 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-44010 |
ZVW35 |
2 | ||
| 76891 - SPOILER, REAR NO.1 | ||||
| 76891-47020 |
ZVW35 |
1 | ||
| 76897A - SPOILER,REAR SIDE RH | ||||
| 76897-47020 |
ZVW35 |
1 | ||
| 76898A - SPOILER,REAR SIDE LH | ||||
| 76898-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90149-40012 | ||||
| 90159-60431 | ||||
| 90159-60488 | ||||
| 90159-60498 | ||||
| 90179-06007 | ||||
| 90189-06193 | ||||
| 90189-06232 | ||||
| 90467-06206C0 | ||||
| 90467-10005C0 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 5302 | ||||
| 8117 | ||||
