ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

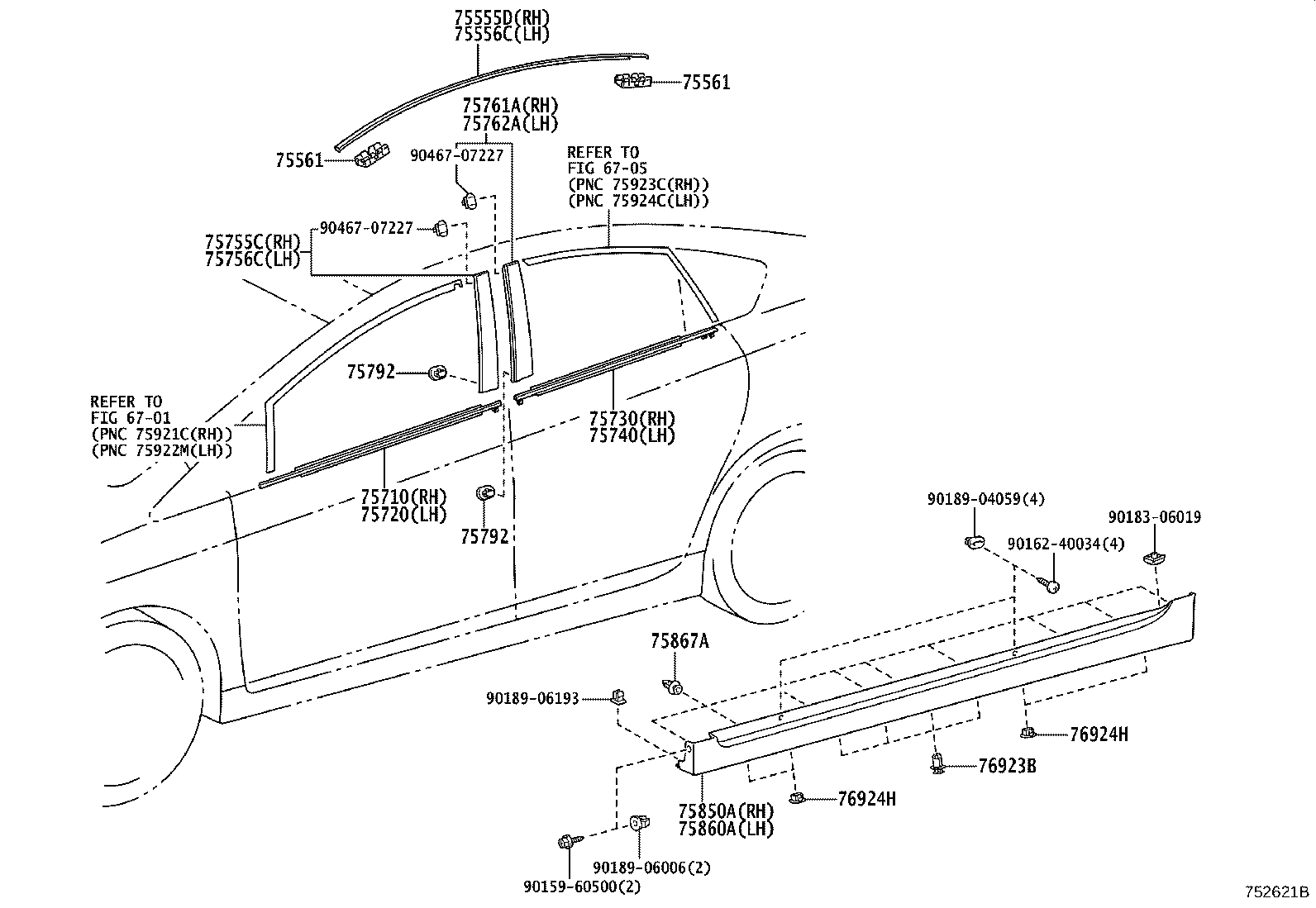

Click highlighted areas on diagram

diagram 6701 6705 75555D 75556C 75561 75561 75710 75720 75730 75740 75755C 75756C 75761A 75762A 75792 75792 75850A 75860A 75867A 76923B 76924H 76924H 9015960500 9016240034 9018306019 9018904059 9018906006 9018906193 9046707227 9046707227
Part # Description Qty Price
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-47030

ZVW35

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-47030

ZVW35

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

ZVW35

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

ZVW35

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-47021

ZVW35

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-47021

ZVW35

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-47021

ZVW35

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-47021

ZVW35

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-47020

ZVW35

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-47020

ZVW35

 1
75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-47020

ZVW35

 1
75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75762-47020

ZVW35

 1
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-47010

ZVW35

 4
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-47010

ZVW35

 4
75850A - MOULDING ASSY, BODY ROCKER PANEL, RH
75851-47900

ZVW35

 1
75860A - MOULDING ASSY, BODY ROCKER PANEL, LH
75852-47900

ZVW35

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-33030

ZVW35

 18
75867-68010

ZVW35

 18
76923B - RETAINER, SIDE MUDGUARD
76923-47010

ZVW35

 8
76924H - RETAINER, SIDE MUDGUARD, NO.2
76924-47020

ZVW35

 8
76924H - RETAINER, SIDE MUDGUARD, NO.2
76924-47020

ZVW35

 8
Common parts
90159-60500
90162-40034
90183-06019
90189-04059
90189-06006
90189-06193
90467-07227
Linked diagrams
6701
6705
