ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

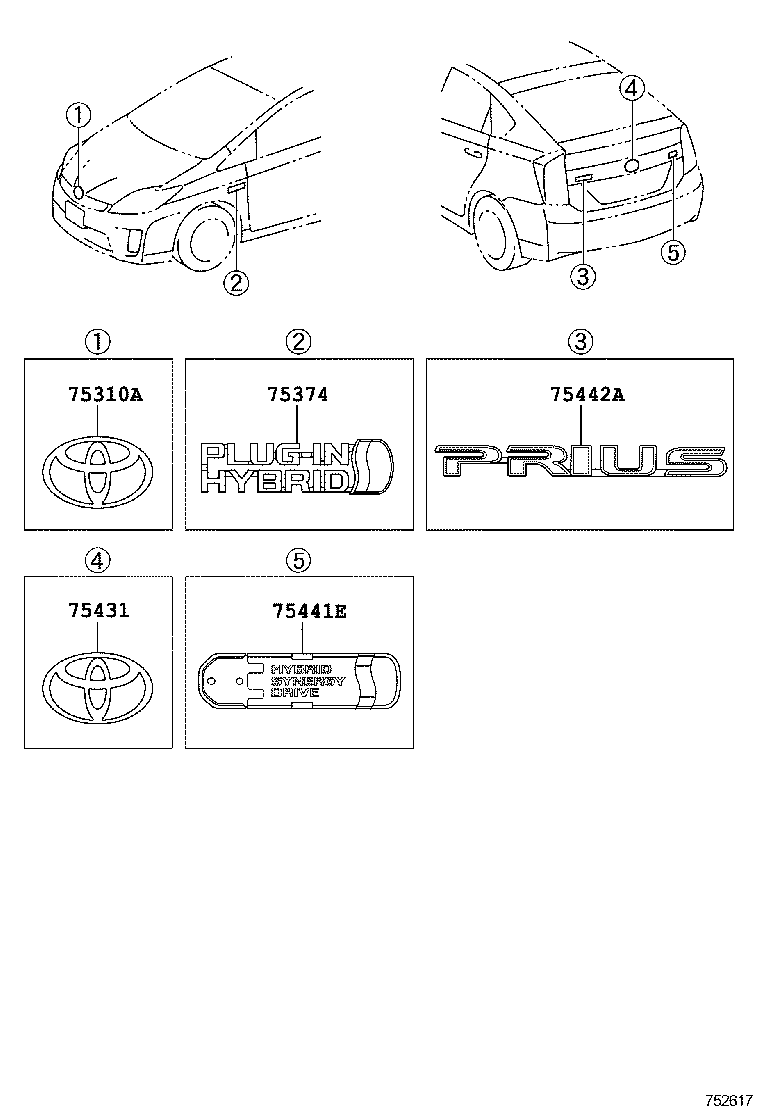

Click highlighted areas on diagram

diagram 75310A 75374 75431 75441E 75442A
Part # Description Qty Price
75310A - EMBLEM ASSY, RADIATOR GRILLE
75310-47010

ZVW35

 1
75374 - EMBLEM, SIDE PANEL
75374-47070

ZVW35

RH

 1
75374-47120

ZVW35

LH

 1
75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR
75310-47020

ZVW35

 1
75441E - PLATE, BACK DOOR NAME, NO.1
75441-47060

ZVW35

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-47020

ZVW35

PRIUS

 1
