ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

Click highlighted areas on diagram

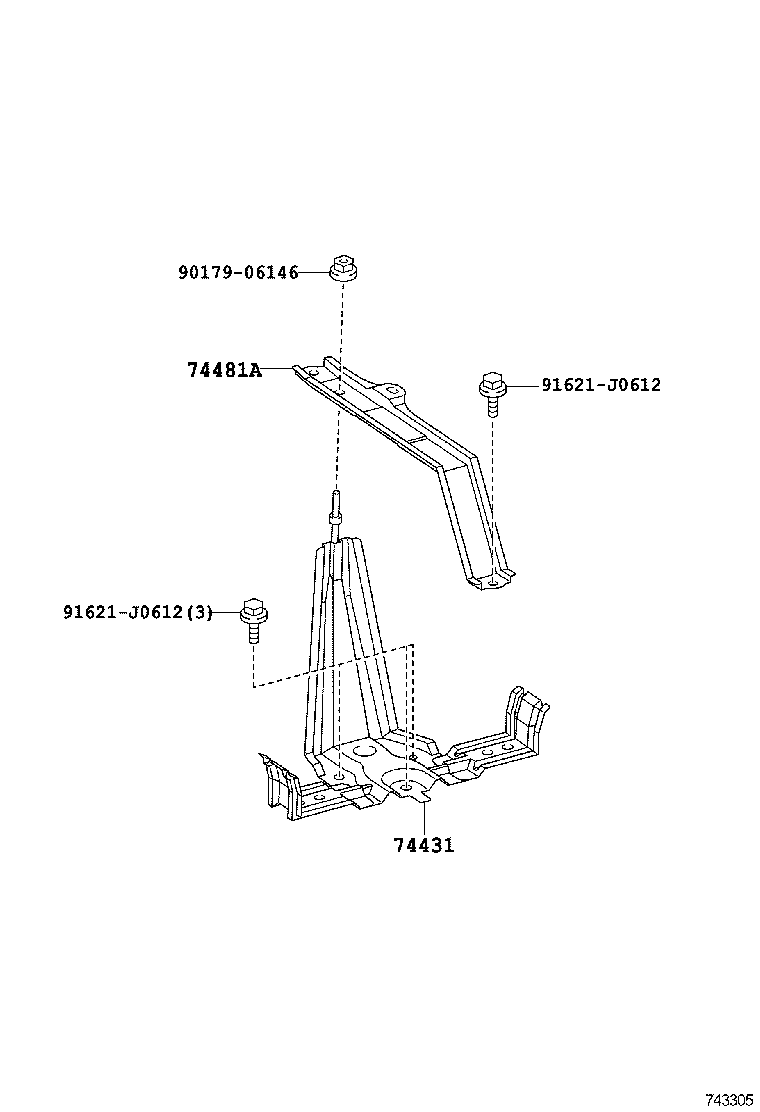

diagram 74431 74481A 9017906146 91621J0612 91621J0612
Part # Description Qty Price
74431 - TRAY, BATTERY
74440-47030

ZVW35

 1
74481A - CLAMP, BATTERY
74481-47050

ZVW35

 1
Common parts
90179-06146
91621-J0612
