ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)

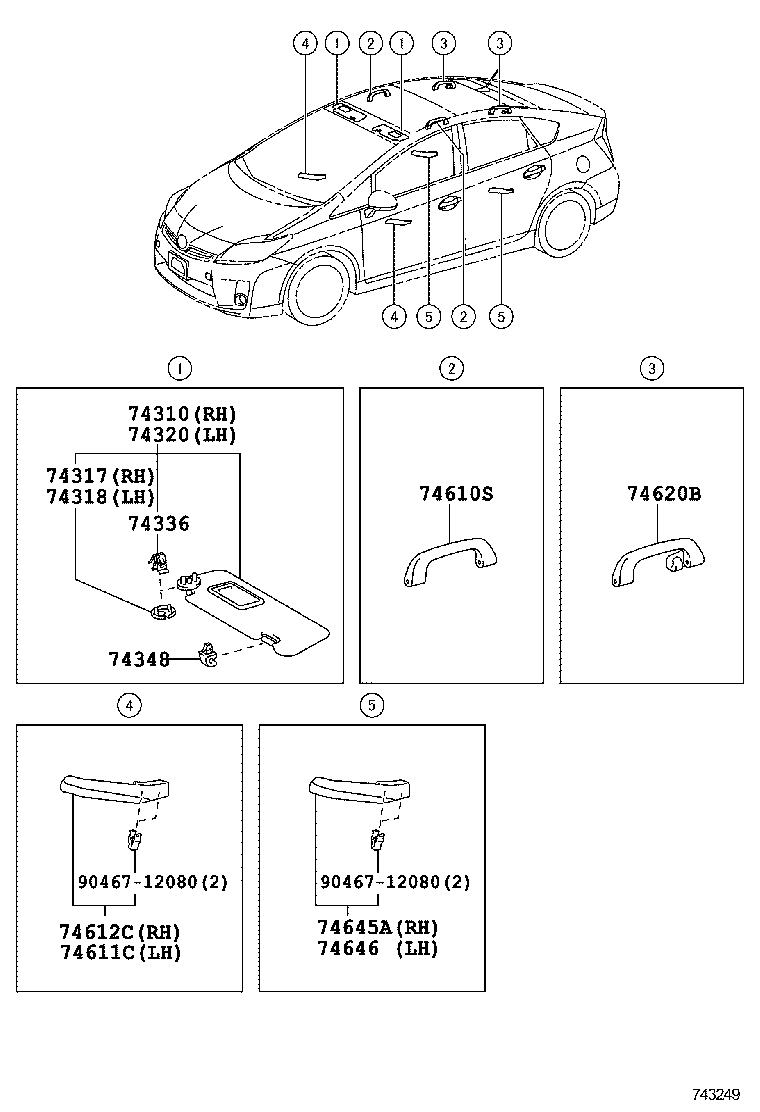

ILLUST NO. 2 OF 2(1201- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-47210B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 74310-47210B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-47010B1 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 74317-47010B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-47010B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74318-47010B1 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-47200B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74320-47200B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-47010 |
ZVW35 |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 74348-33040B1 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
2 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-52020B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 74610-52020B1 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
2 | ||
| 74611C - COVER, ASSIST GRIP, LH | ||||
| 74611-47040B0 |
ZVW35 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 74612C - COVER, ASSIST GRIP, RH | ||||
| 74612-47040B0 |
ZVW35 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-52030B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 74610-52030B1 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
2 | ||
| 74645A - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-47040B0 |
ZVW35 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 74646 - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-47040B0 |
ZVW35 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||

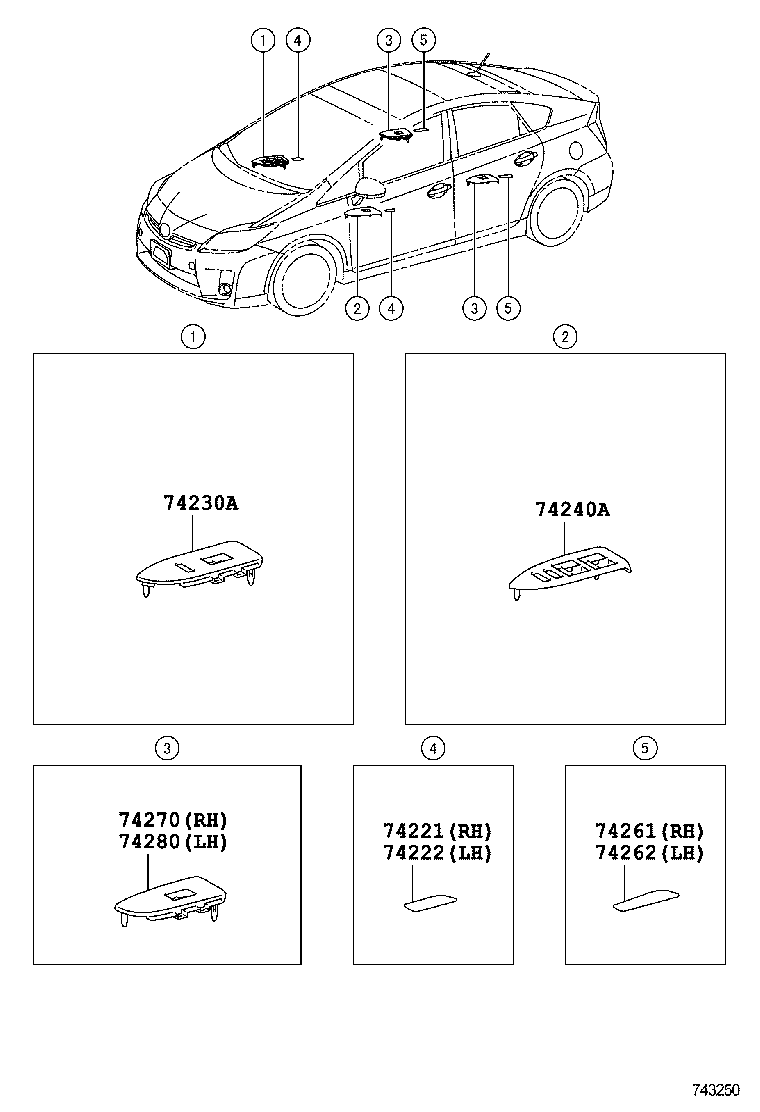

ILLUST NO. 1 OF 2(1201- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-47020 |
ZVW35 |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74221-47020 |
ZVW35 |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74231-47120 |
ZVW35 |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74232-47090 |
ZVW35 |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74261-47020 |
ZVW35 |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74261-47020 |
ZVW35 |
1 | ||
| 74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH | ||||
| 74271-47060 |
ZVW35 |
1 | ||
| 74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH | ||||
| 74272-47060 |
ZVW35 |
1 | ||
