ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
(1201- )

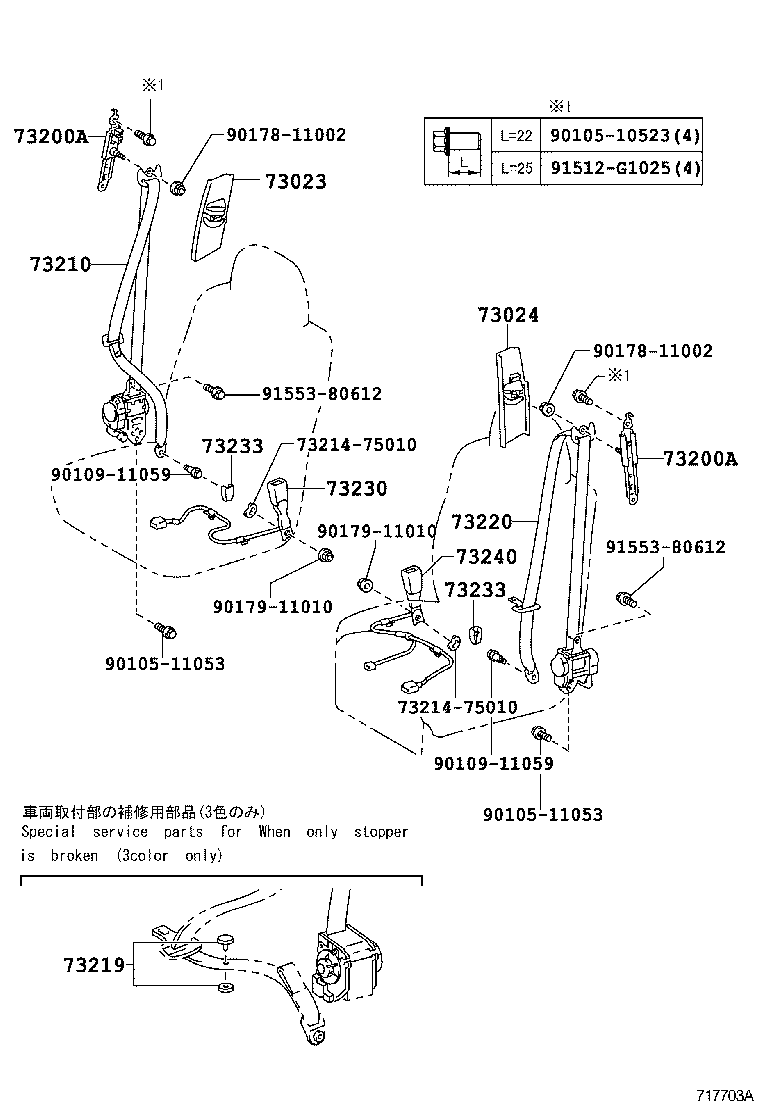

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-53020B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 73023-53020B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-53020B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 73024-53020B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZVW35 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZVW35 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-47122B1 |
ZVW35 GRAY/LT.GRAY,TRIM1#,6# |
1 | ||
| 73210-47230B0 |
ZVW35..G,S GRAY/LT.GRAY,TRIM1#,6# |
1 | ||
| 73210-47122B2 |
ZVW35 GREGE/LT.GRAY,TRIM4# |
1 | ||
| 73210-47230B0 |
ZVW35..L GRAY/LT.GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
ZVW35 GRAY |
1 | ||
| 73219-02030 |
ZVW35 BEIGE |
1 | ||
| 73219-02010 |
ZVW35 BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-47092B1 |
ZVW35 GRAY/LT.GRAY,TRIM1#,6# |
1 | ||
| 73220-47092B2 |
ZVW35 GREGE/LT.GRAY,TRIM4# |
1 | ||
| 73220-47180B0 |
ZVW35..L GRAY/LT.GRAY,TRIM1# |
1 | ||
| 73220-47180B0 |
ZVW35..G,S GRAY/LT.GRAY,TRIM1#,6# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73240-47080B0 |
ZVW35 MD.GRAY,TRIM1#,6# |
1 | ||
| 73240-47160B0 |
ZVW35..G,S MD.GRAY,TRIM1#,6# |
1 | ||
| 73240-47080E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73240-47160B0 |
ZVW35..L MD.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
2 | ||
| 73233-60020C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
2 | ||
| 73233-60020C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-47260E0 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 73230-47260B0 |
ZVW35..L,S MD.GRAY,TRIM1#,6# |
1 | ||
| 73230-47360B0 |
ZVW35..L MD.GRAY,TRIM1# |
1 | ||
| 73230-47360B0 |
ZVW35..S MD.GRAY,TRIM1#,6# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91512-G1025 | ||||
| 91553-80612 | ||||
(1201- )

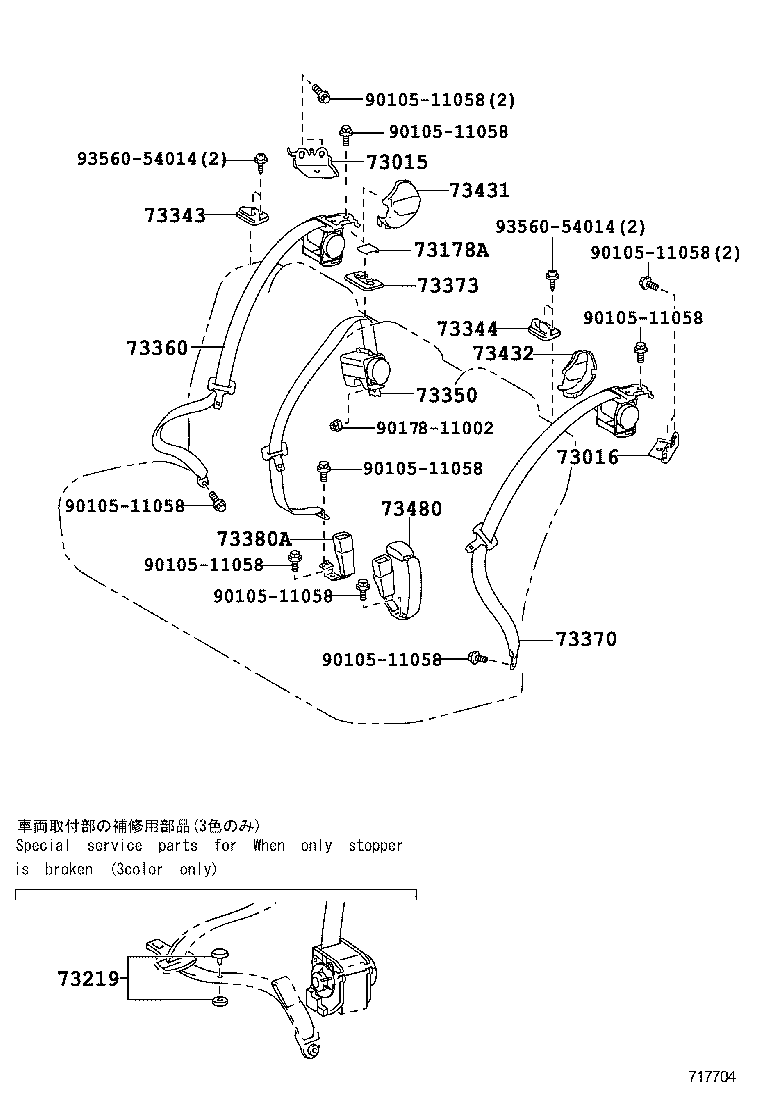

REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-47030 |
ZVW35 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-47020 |
ZVW35 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73178-12060C1 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 73178-12060B3 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 73178-12060E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
ZVW35 GRAY |
1 | ||
| 73219-02030 |
ZVW35 BEIGE |
1 | ||
| 73219-02010 |
ZVW35 BLACK |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73343-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73343-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 73343-47010C0 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 73344-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73344-47010C0 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 73344-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-47030E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73350-47030B0 |
ZVW35 MD.GRAY,TRIM10,6# |
1 | ||
| 73350-47030B0 |
ZVW35 MD.GRAY,TRIM1#,6# |
1 | ||
| 73350-47030C0 |
ZVW35..G,S BLACK,TRIM10,2# |
1 | ||
| 73350-47031B0 |
ZVW35..G,S MD.GRAY,TRIM1#,6# |
1 | ||
| 73350-47031B0 |
ZVW35..L MD.GRAY,TRIM1# |
1 | ||
| 73350-47030C0 |
ZVW35..L BLACK,TRIM10 |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-47062B0 |
ZVW35..G,S GRAY,TRIM1#,6# |
1 | ||
| 73360-47061E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73360-47062B0 |
ZVW35..L GRAY,TRIM1# |
1 | ||
| 73360-47061B0 |
ZVW35 GRAY,TRIM1#,6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-47061B0 |
ZVW35 GRAY,TRIM1#,6# |
1 | ||
| 73360-47062B0 |
ZVW35..G,S GRAY,TRIM1#,6# |
1 | ||
| 73360-47062B0 |
ZVW35..L GRAY,TRIM1# |
1 | ||
| 73360-47061E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-12020B3 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 73373-12020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73373-12020E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73373-12020C1 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-47021B1 |
ZVW35 MD.GRAY,TRIM1#,6# |
1 | ||
| 73380-47090B0 |
ZVW35..L MD.GRAY,TRIM1# |
1 | ||
| 73380-47090B0 |
ZVW35..G,S MD.GRAY,TRIM1#,6# |
1 | ||
| 73380-47021E1 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73431 - COVER, REAR SEAT BELT RETRACTOR, RH | ||||
| 73431-47020 |
ZVW35 |
1 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73432-47010 |
ZVW35 |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-47090B0 |
ZVW35..G,S GRAY,TRIM1#,6# |
1 | ||
| 73480-47090B0 |
ZVW35..L GRAY,TRIM1# |
1 | ||
| 73480-47051E1 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73480-47051B1 |
ZVW35 GRAY,TRIM1#,6# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90178-11002 | ||||
| 93560-54014 | ||||
