ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)

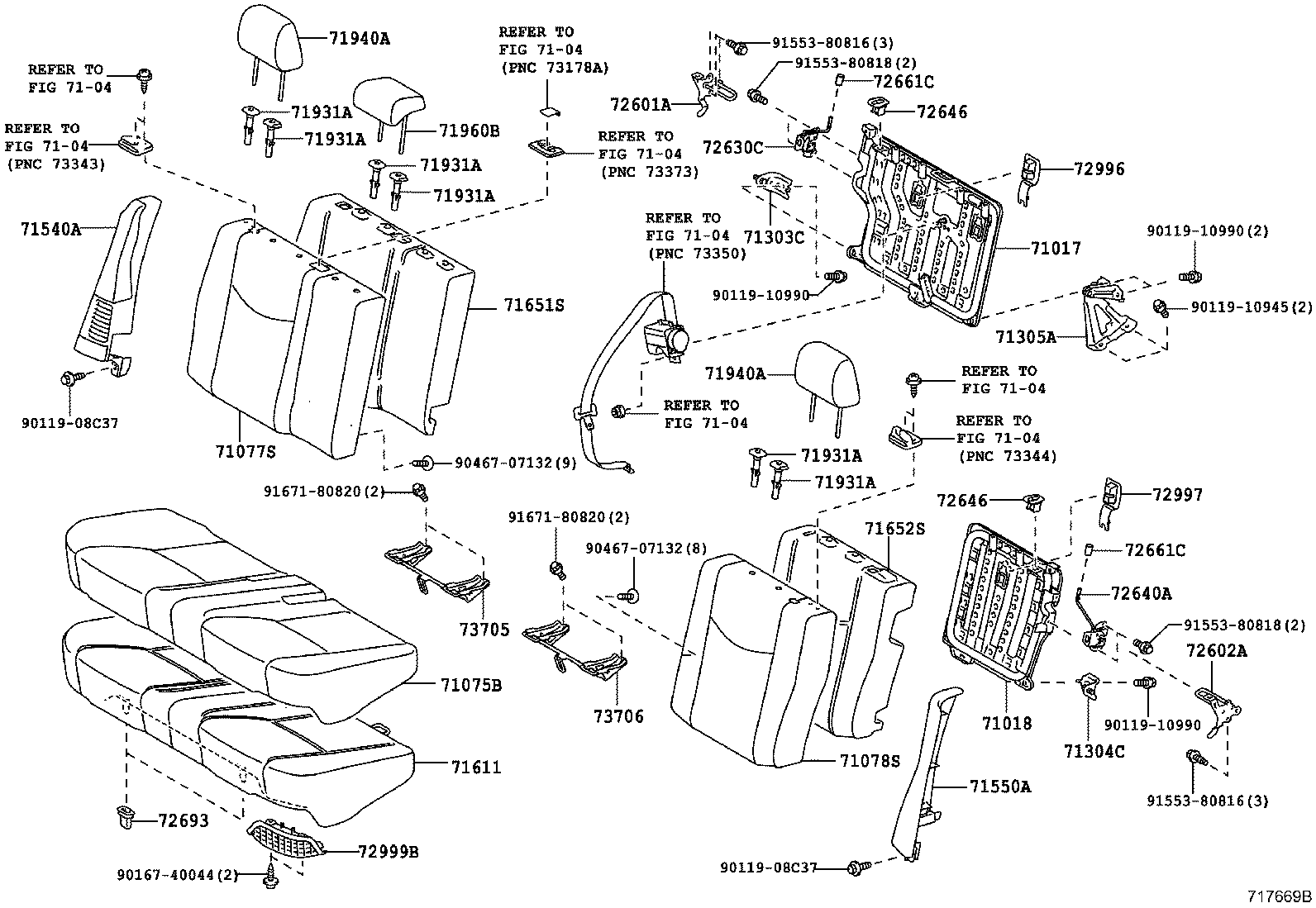

(1201- )G,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-47100 |
ZVW35..G,S |
1 | ||
| 71017-47140 |
ZVW35..L |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-47060 |
ZVW35..G,S |
1 | ||
| 71018-47050 |
ZVW35..L |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-47240E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71075-47240G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71075-47240B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-47252G6 |
ZVW35..S AQUA/LT.GRAY,TRIM6# |
1 | ||
| 71077-47252E5 |
ZVW35..S GREGE/LT.GRAY,TRIM4# |
1 | ||
| 71077-47252B5 |
ZVW35..S MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71077-47332B1 |
ZVW35..L MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-47171G6 |
ZVW35..S AQUA/LT.GRAY,TRIM6# |
1 | ||
| 71078-47171E5 |
ZVW35..S GREGE/LT.GRAY,TRIM4# |
1 | ||
| 71078-47171B5 |
ZVW35..S MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71078-47211B1 |
ZVW35..L MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-47020 |
ZVW35 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-47020 |
ZVW35 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-47030 |
ZVW35 |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-47040B3 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71540-47040E3 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 71540-47040G3 |
ZVW35..L,S AQUA,TRIM6# |
1 | ||
| 71540-47041 |
ZVW35..L,S |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-47040G3 |
ZVW35..L,S AQUA,TRIM6# |
1 | ||
| 71550-47040B3 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71550-47040E3 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-47110 |
ZVW35 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-47140 |
ZVW35..L |
1 | ||
| 71651-47130 |
ZVW35..G,S |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-47060 |
ZVW35..L |
1 | ||
| 71652-47070 |
ZVW35..G,S |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47131B1 |
ZVW35..S MD.GRAY,TRIM1# |
2 | ||
| 71940-47131E1 |
ZVW35..S GREGE,TRIM4# |
2 | ||
| 71940-47131G1 |
ZVW35..S AQUA,TRIM6# |
2 | ||
| 71940-47171B0 |
ZVW35..L MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47131B1 |
ZVW35..S MD.GRAY,TRIM1# |
2 | ||
| 71940-47131E1 |
ZVW35..S GREGE,TRIM4# |
2 | ||
| 71940-47131G1 |
ZVW35..S AQUA,TRIM6# |
2 | ||
| 71940-47171B0 |
ZVW35..L MD.GRAY,TRIM1# |
2 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010B0 |
ZVW35..G,S MD.GRAY,TRIM1# |
4 | ||
| 71955-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
4 | ||
| 71955-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
4 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010B0 |
ZVW35..G,S MD.GRAY,TRIM1# |
4 | ||
| 71955-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
4 | ||
| 71955-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
4 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010B0 |
ZVW35..G,S MD.GRAY,TRIM1# |
4 | ||
| 71955-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
4 | ||
| 71955-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
4 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010B0 |
ZVW35..G,S MD.GRAY,TRIM1# |
4 | ||
| 71955-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
4 | ||
| 71955-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
4 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-47070B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71960-47070E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71960-47070G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-47030 |
ZVW35 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-47020 |
ZVW35 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47031 |
ZVW35 |
1 | ||
| 72630-47030 |
ZVW35 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47031 |
ZVW35 |
1 | ||
| 72640-47030 |
ZVW35 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72646-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72646-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72646-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72646-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-13030E2 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72661-13030B7 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72661-13030G1 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-13030E2 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72661-13030B7 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72661-13030G1 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZVW35 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-47080B1 |
ZVW35..S MD.GRAY,TRIM1# |
1 | ||
| 72830-47080E1 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 72830-47080G1 |
ZVW35..S AQUQ,TRIM6# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 72622-47010 |
ZVW35..G,S |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 72622-47020 |
ZVW35..G,S |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-47020E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 72868-47020B0 |
ZVW35..G,S MD.GRAY,TRIM1# |
1 | ||
| 72868-47020G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-47030B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
2 | ||
| 72996-47030B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-47030B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 72996-47030B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 72999B - COVER, REAR SEAT CUSHION SIDE, LH | ||||
| 72999-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72999-47040E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 72999-47040G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-47040 |
ZVW35 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-47050 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90119-08C37 | ||||
| 90119-10945 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90467-07132 | ||||
| 91553-80816 | ||||
| 91553-80818 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

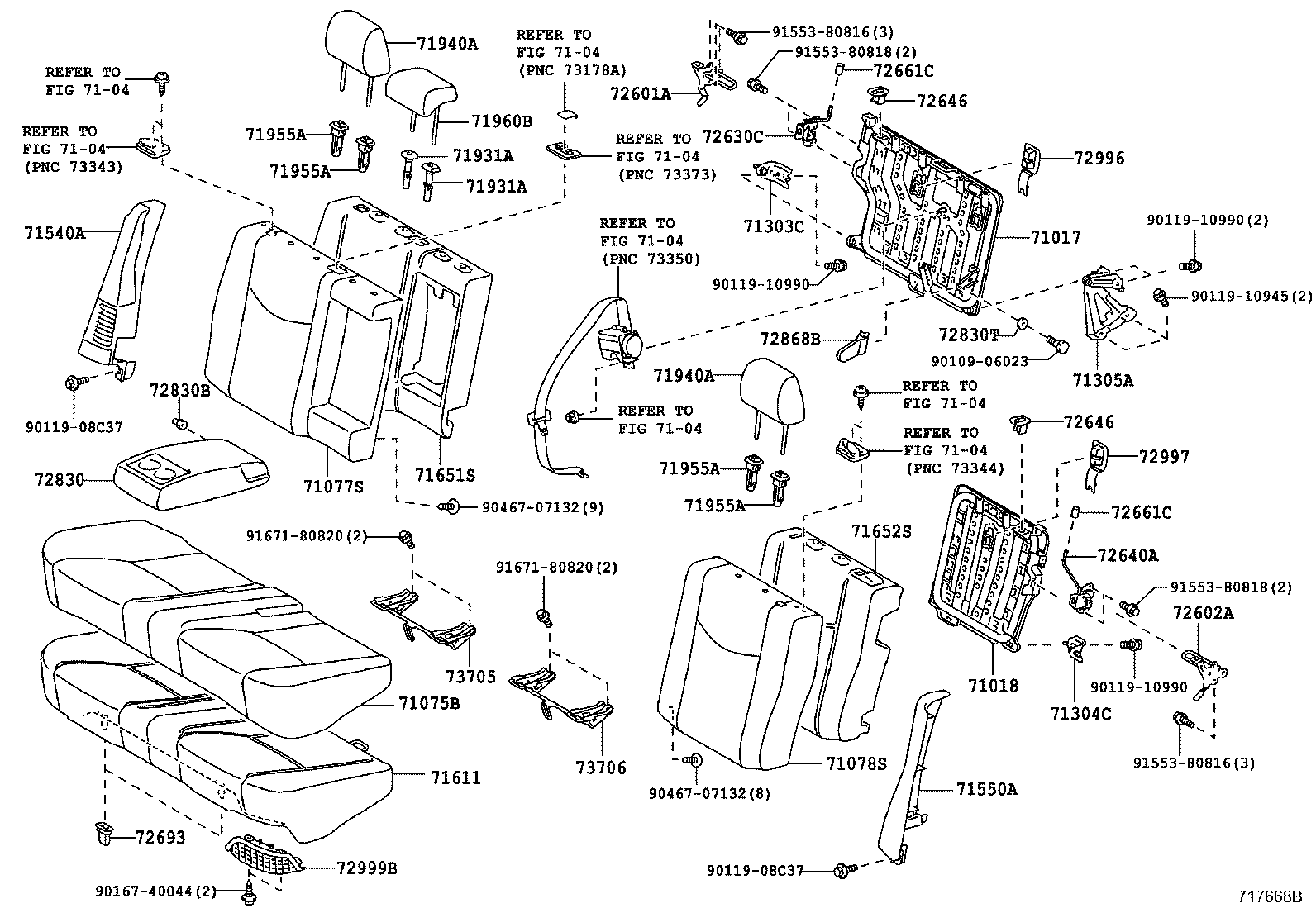

(1201- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-47100 |
ZVW35..G,S |
1 | ||
| 71017-47140 |
ZVW35..L |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-47060 |
ZVW35..G,S |
1 | ||
| 71018-47050 |
ZVW35..L |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-47240E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71075-47240G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71075-47240B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-47252G6 |
ZVW35..S AQUA/LT.GRAY,TRIM6# |
1 | ||
| 71077-47252E5 |
ZVW35..S GREGE/LT.GRAY,TRIM4# |
1 | ||
| 71077-47252B5 |
ZVW35..S MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71077-47332B1 |
ZVW35..L MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-47171G6 |
ZVW35..S AQUA/LT.GRAY,TRIM6# |
1 | ||
| 71078-47171E5 |
ZVW35..S GREGE/LT.GRAY,TRIM4# |
1 | ||
| 71078-47171B5 |
ZVW35..S MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71078-47211B1 |
ZVW35..L MD.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-47020 |
ZVW35 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-47020 |
ZVW35 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-47030 |
ZVW35 |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-47040B3 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71540-47040E3 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 71540-47040G3 |
ZVW35..L,S AQUA,TRIM6# |
1 | ||
| 71540-47041 |
ZVW35..L,S |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-47040G3 |
ZVW35..L,S AQUA,TRIM6# |
1 | ||
| 71550-47040B3 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71550-47040E3 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-47110 |
ZVW35 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-47140 |
ZVW35..L |
1 | ||
| 71651-47130 |
ZVW35..G,S |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-47060 |
ZVW35..L |
1 | ||
| 71652-47070 |
ZVW35..G,S |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
1 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
1 | ||
| 71930-47020B0 |
ZVW35..G,S W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-47020B0 |
ZVW35..L W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
1 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
1 | ||
| 71931-47020B0 |
ZVW35..G,S W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47020B0 |
ZVW35..L W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47131B1 |
ZVW35..S MD.GRAY,TRIM1# |
2 | ||
| 71940-47131E1 |
ZVW35..S GREGE,TRIM4# |
2 | ||
| 71940-47131G1 |
ZVW35..S AQUA,TRIM6# |
2 | ||
| 71940-47171B0 |
ZVW35..L MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47131B1 |
ZVW35..S MD.GRAY,TRIM1# |
2 | ||
| 71940-47131E1 |
ZVW35..S GREGE,TRIM4# |
2 | ||
| 71940-47131G1 |
ZVW35..S AQUA,TRIM6# |
2 | ||
| 71940-47171B0 |
ZVW35..L MD.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-47070B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71960-47070E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71960-47070G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-47030 |
ZVW35 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-47020 |
ZVW35 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47031 |
ZVW35 |
1 | ||
| 72630-47030 |
ZVW35 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47031 |
ZVW35 |
1 | ||
| 72640-47030 |
ZVW35 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72646-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72646-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72646-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72646-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-13030E2 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72661-13030B7 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72661-13030G1 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-13030E2 |
ZVW35..G,S GREGE,TRIM4# |
2 | ||
| 72661-13030B7 |
ZVW35 MD.GRAY,TRIM1# |
2 | ||
| 72661-13030G1 |
ZVW35..G,S AQUA,TRIM6# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZVW35 |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-47030B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
2 | ||
| 72996-47030B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-47030B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 72996-47030B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 72999B - COVER, REAR SEAT CUSHION SIDE, LH | ||||
| 72999-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72999-47040E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 72999-47040G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-47040 |
ZVW35 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-47050 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-08C37 | ||||
| 90119-10945 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90467-07132 | ||||
| 91553-80816 | ||||
| 91553-80818 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
