ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
(1201- )L

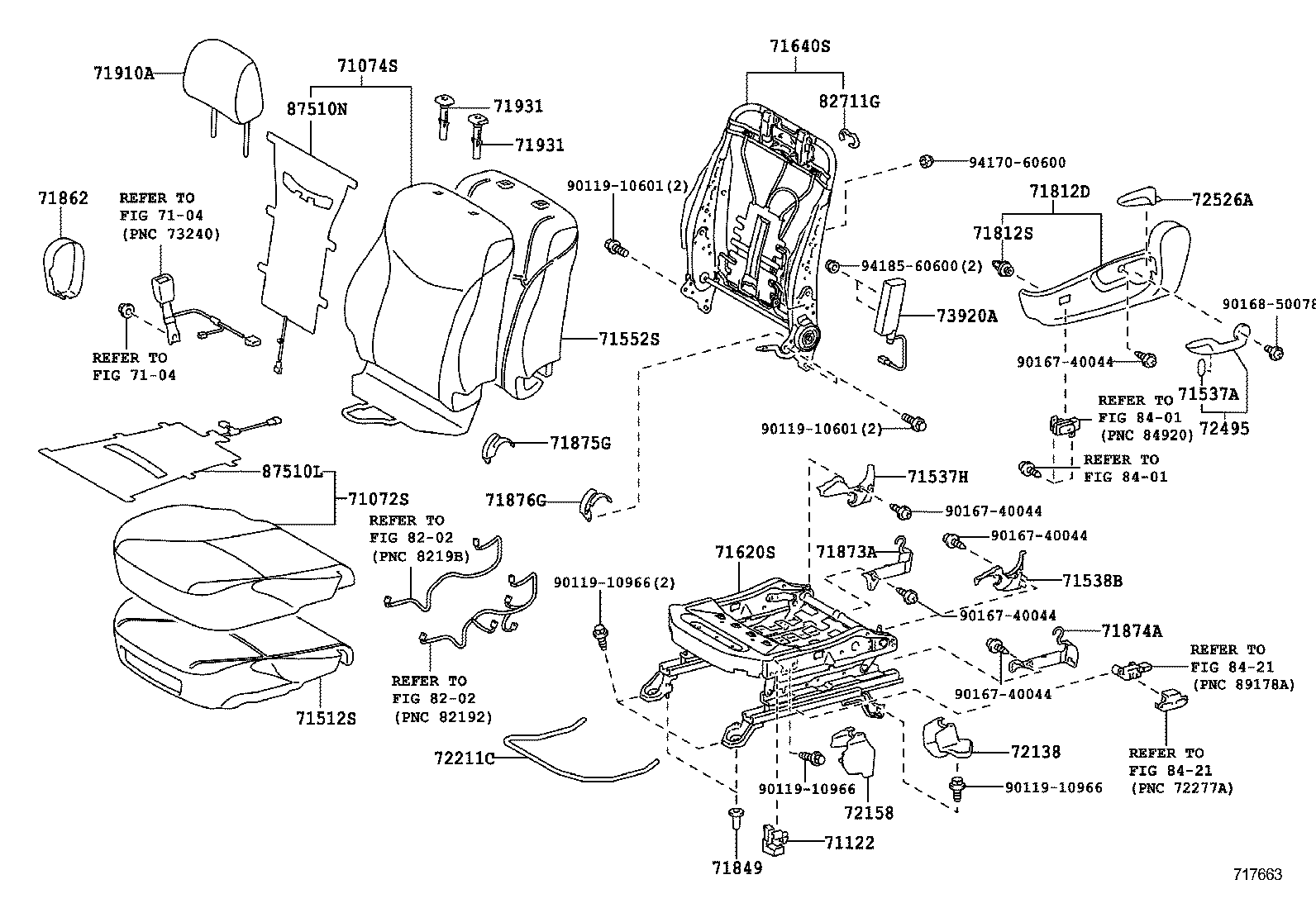

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47430E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71072-47430G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71072-47430B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47270E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71074-47270B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074-47271G3 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71074-47270G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71074-47271B3 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-47010 |
ZVW35..L,S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47070 |
ZVW35..L,S |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ZVW35..L,S |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71537-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71537-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-47010E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71538-47010G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71538-47010B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47160 |
ZVW35..L,S |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47190 |
ZVW35..L,S |
1 | ||
| 71620-47191 |
ZVW35..L,S |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-47020 |
ZVW35..L,S |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47100G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71812-47100B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71812-47100E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
ZVW35 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW35 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47040E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71862-47040B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71862-47040G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-47040 |
ZVW35..L,S |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ZVW35..L,S |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71875-47030B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71875-47030G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47030E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71876-47030G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71876-47030B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47110B1 |
ZVW35..L,S MD.GRAY,TRIM1# |
2 | ||
| 71910-47110G2 |
ZVW35..S AQUA,TRIM6# |
2 | ||
| 71910-47110E1 |
ZVW35..S GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW35 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW35 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW35 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW35 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72138-47040C0 |
ZVW35..L BLACK,TRIM4#,6# |
1 | ||
| 72138-47040C0 |
ZVW35..G,S BLACK,TRIM2#,4#,6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47040C0 |
ZVW35..G,S BLACK,TRIM2#,4#,6# |
1 | ||
| 72158-47040C0 |
ZVW35..L BLACK,TRIM4#,6# |
1 | ||
| 72158-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW35..L,S |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-47010B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 72495-47010E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 72495-47010G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 72526-47010G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 72526-47010B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47040 |
ZVW35 |
1 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW35 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-47070 |
ZVW35..L,S |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-47030 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(1201- )S

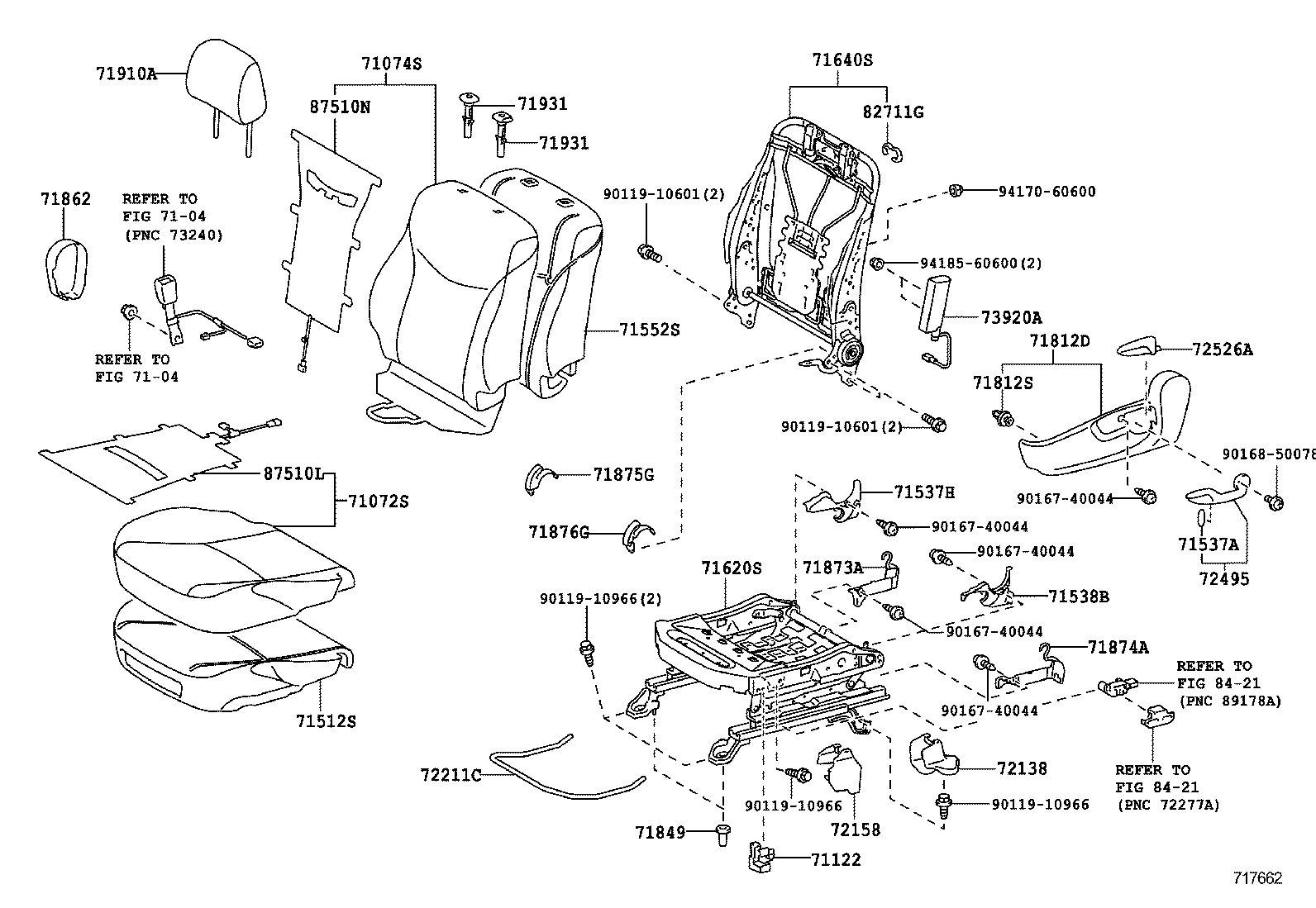

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47430E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71072-47430G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71072-47430B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47270E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71074-47270B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074-47271G3 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71074-47270G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71074-47271B3 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-47010 |
ZVW35..L,S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47070 |
ZVW35..L,S |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ZVW35..L,S |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71537-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71537-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-47010E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71538-47010G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71538-47010B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47160 |
ZVW35..L,S |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47190 |
ZVW35..L,S |
1 | ||
| 71620-47191 |
ZVW35..L,S |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-47020 |
ZVW35..L,S |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47100G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71812-47100B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71812-47100E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
ZVW35 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW35 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47040E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71862-47040B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71862-47040G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-47040 |
ZVW35..L,S |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ZVW35..L,S |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71875-47030B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71875-47030G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47030E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71876-47030G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71876-47030B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47110B1 |
ZVW35..L,S MD.GRAY,TRIM1# |
2 | ||
| 71910-47110G2 |
ZVW35..S AQUA,TRIM6# |
2 | ||
| 71910-47110E1 |
ZVW35..S GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW35 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW35 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW35 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW35 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72138-47040C0 |
ZVW35..L BLACK,TRIM4#,6# |
1 | ||
| 72138-47040C0 |
ZVW35..G,S BLACK,TRIM2#,4#,6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47040C0 |
ZVW35..G,S BLACK,TRIM2#,4#,6# |
1 | ||
| 72158-47040C0 |
ZVW35..L BLACK,TRIM4#,6# |
1 | ||
| 72158-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW35..L,S |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-47010B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 72495-47010E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 72495-47010G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 72526-47010G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 72526-47010B0 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47040 |
ZVW35 |
1 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW35 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-47070 |
ZVW35..L,S |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-47030 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

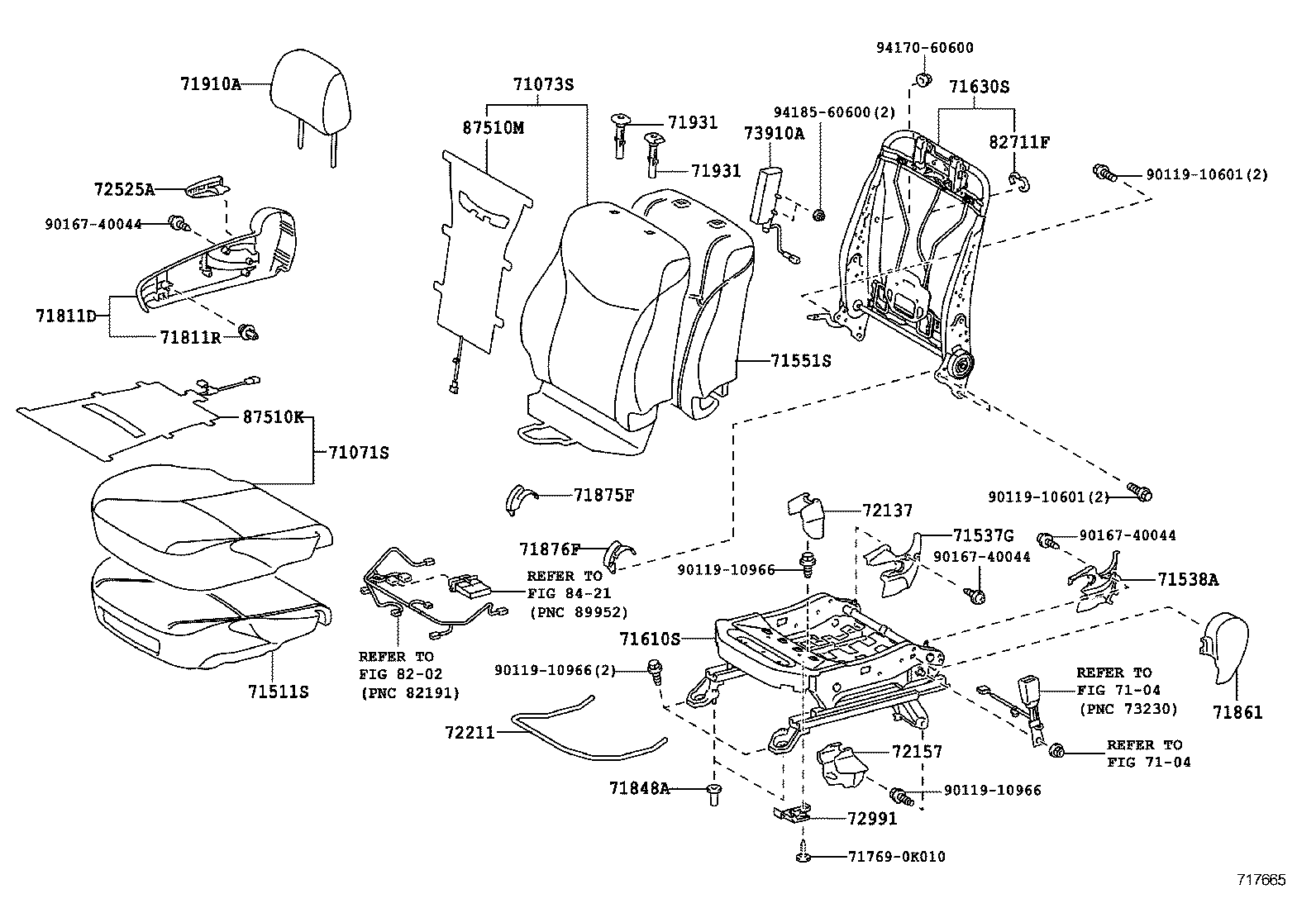

(1201- )
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47470E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71071-47470G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71071-47470B2 |
ZVW35..L,S MD.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47380G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71073-47380E2 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 71073-47381B3 |
ZVW35..S MD.GRAY,TRIM1# |
1 | ||
| 71073-47381G3 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 71073-47391B3 |
ZVW35..L MD.GRAY,TRIM1# |
1 | ||
| 71073-47380B2 |
ZVW35..S MD.GRAY,TRIM1# |
1 | ||
| 71073-47390B2 |
ZVW35..L MD.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-47100 |
ZVW35 |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47030B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71537-47030E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71537-47030G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47030G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71538-47030E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71538-47030B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47190 |
ZVW35 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-47221 |
ZVW35 |
1 | ||
| 71610-47220 |
ZVW35 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-47040 |
ZVW35 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47080B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71811-47080G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71811-47080E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
ZVW35 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
ZVW35 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47060B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71861-47060G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71861-47060E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47030G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71875-47030B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71875-47030E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-47030E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 71876-47030G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 71876-47030B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47110B1 |
ZVW35..L,S MD.GRAY,TRIM1# |
2 | ||
| 71910-47110G2 |
ZVW35..S AQUA,TRIM6# |
2 | ||
| 71910-47110E1 |
ZVW35..S GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW35 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW35 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW35 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW35 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW35..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW35..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW35..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-47040C0 |
ZVW35..G,S BLACK,TRIM2#,4#,6# |
1 | ||
| 72137-47040C0 |
ZVW35..L BLACK,TRIM4#,6# |
1 | ||
| 72137-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-47040C0 |
ZVW35..L BLACK,TRIM4#,6# |
1 | ||
| 72157-47040C0 |
ZVW35..G,S BLACK,TRIM2#,4#,6# |
1 | ||
| 72157-47040B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW35 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010B0 |
ZVW35 MD.GRAY,TRIM1# |
1 | ||
| 72525-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 72525-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-47060 |
ZVW35 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47040 |
ZVW35 |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW35 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-47070 |
ZVW35 |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-47030 |
ZVW35 |
1 | ||
| Common parts | ||||
| 71769-0K010 | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
