ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

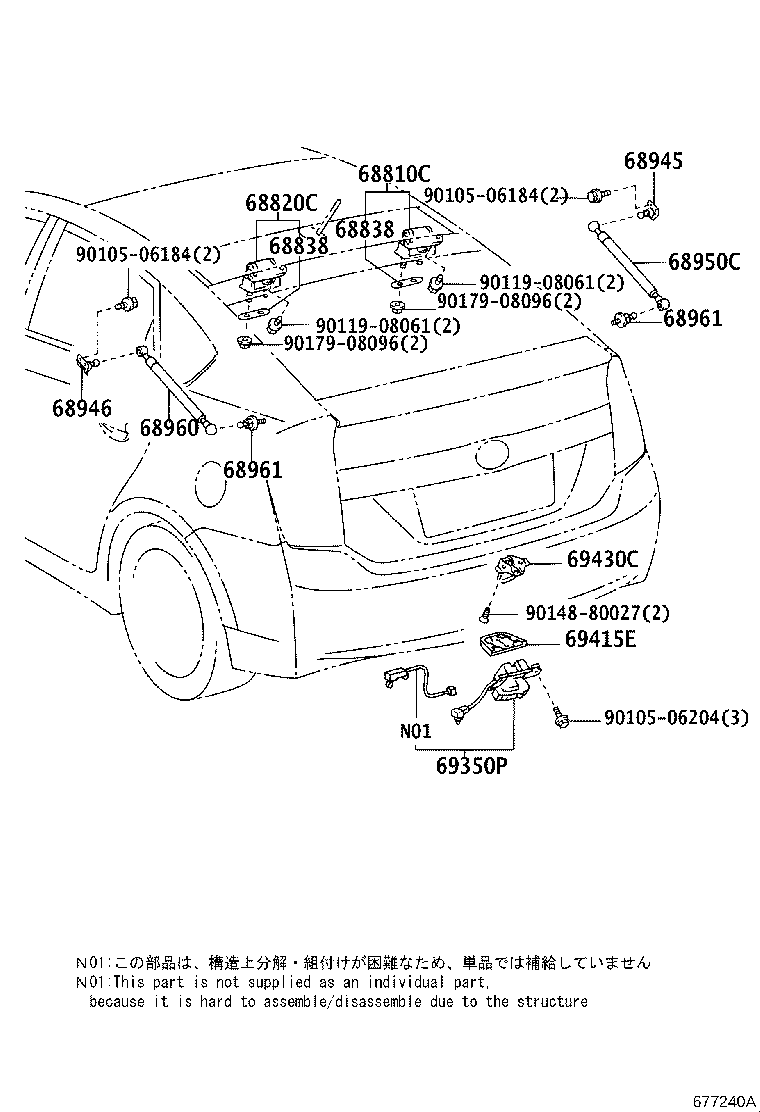

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-47010 |
ZVW35 PAD T=1.0 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-47010 |
ZVW35 PAD T=1.0 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-32010 |
ZVW35 T=2.0 |
2 | ||
| 68838-44020 |
ZVW35 T=1.0 |
2 | ||
| 68838-52020 |
ZVW35 T=1.6 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-32010 |
ZVW35 T=2.0 |
2 | ||
| 68838-44020 |
ZVW35 T=1.0 |
2 | ||
| 68838-52020 |
ZVW35 T=1.6 |
2 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-47010 |
ZVW35 |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68945-47010 |
ZVW35 |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-0W541 |
ZVW35 |
1 | ||
| 68950-0W542 |
ZVW35 |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-0W531 |
ZVW35 |
1 | ||
| 68960-0W532 |
ZVW35 |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20140 |
ZVW35 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20140 |
ZVW35 |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-47030 |
ZVW35 |
1 | ||
| 69350-47040 |
ZVW35 |
1 | ||
| 69415E - COVER, BACK DOOR LOCK STRIKER | ||||
| 69415-47020 |
ZVW35 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69431-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90105-06204 | ||||
| 90119-08061 | ||||
| 90148-80027 | ||||
| 90179-08096 | ||||
