ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)

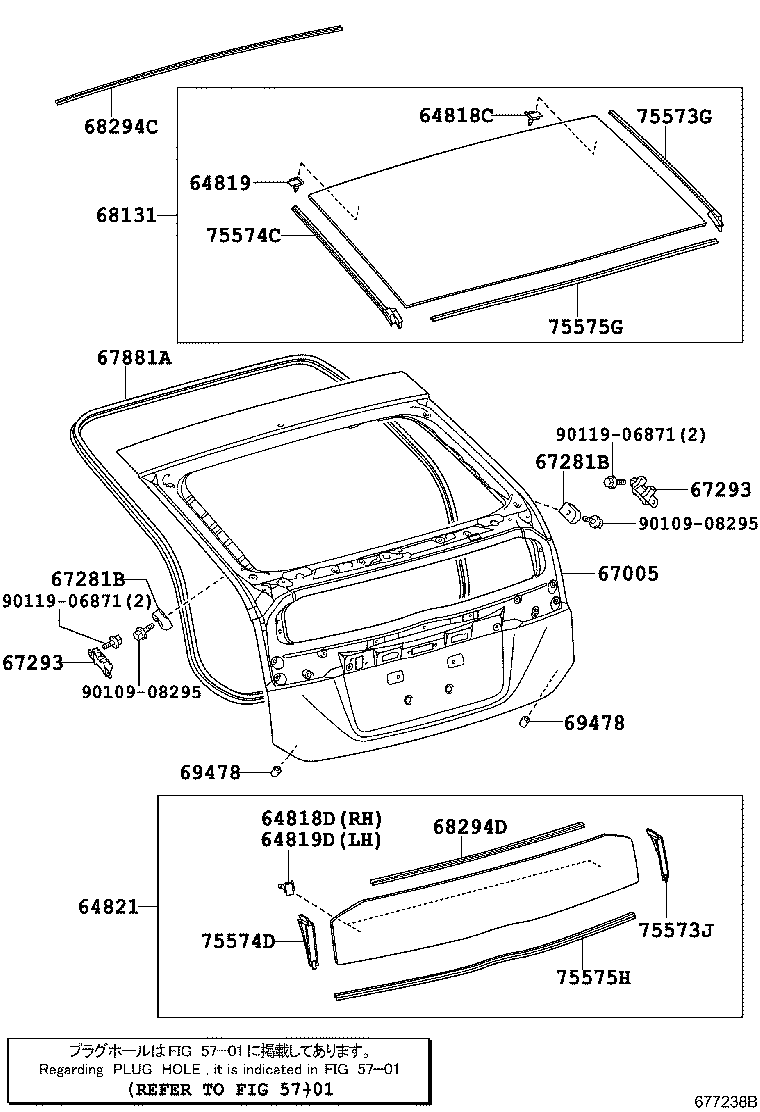

ILLUST NO. 1 OF 2(1201- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-47060 |
ZVW35 |
1 | ||
| 64818D - SPACER, BACK WINDOW GLASS, NO.3 | ||||
| 64818-47050 |
ZVW35 |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-47060 |
ZVW35 |
1 | ||
| 64819D - SPACER, BACK WINDOW GLASS, NO.4 | ||||
| 64819-47050 |
ZVW35 |
1 | ||
| 64821 - GLASS, BACK WINDOW FIX | ||||
| 64821-47030 |
ZVW35 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-47251 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 67005-47121 |
ZVW35..L |
1 | ||
| 67005-47211 |
ZVW35..(L,S)..USA |
1 | ||
| 67005-47212 |
ZVW35..(L,S)..USA |
1 | ||
| 67005-47251 |
ZVW35..S..USA |
1 | ||
| 67005-47261 |
ZVW35..S..USA BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 67005-47261 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 67005-47221 |
ZVW35..(L,S)..USA BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 67005-47222 |
ZVW35..(L,S)..USA BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-47010 |
ZVW35 |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-47010 |
ZVW35 |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-47020 |
ZVW35 |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-47020 |
ZVW35 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-47022 |
ZVW35 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-47122 |
ZVW35..G,S T=3.1,GREEN |
1 | ||
| 68105-47150 |
ZVW35..L T=3.1,GREEN |
1 | ||
| 68105-47122 |
ZVW35..L T=3.1,GREEN |
1 | ||
| 68105-47122 |
ZVW35..L T=3.1,GREEN,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 68294C - DAM, BACK DOOR GLASS ADHESIVE, NO.1 | ||||
| 56117-50140 |
ZVW35 |
1 | ||
| 68294D - DAM, BACK DOOR GLASS ADHESIVE, NO.2 | ||||
| 68294-47050 |
ZVW35 |
1 | ||
| 69478 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-47010 |
ZVW35 |
2 | ||
| 69478 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-47010 |
ZVW35 |
2 | ||
| 75573G - MOULDING, BACK WINDOW, OUTSIDE RH NO.1 | ||||
| 75573-47080 |
ZVW35 |
1 | ||
| 75573J - MOULDING, BACK WINDOW, OUTSIDE RH NO.2 | ||||
| 75573-47090 |
ZVW35 |
1 | ||
| 75574C - MOULDING, BACK WINDOW, OUTSIDE LH NO.1 | ||||
| 75574-47020 |
ZVW35 |
1 | ||
| 75574D - MOULDING, BACK WINDOW, OUTSIDE LH NO.2 | ||||
| 75574-47010 |
ZVW35 |
1 | ||
| 75575G - MOULDING, BACK WINDOW, LOWER NO.1 | ||||
| 75575-47030 |
ZVW35 |
1 | ||
| 75575H - MOULDING, BACK WINDOW, LOWER NO.2 | ||||
| 75575-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06871 | ||||
| Linked diagrams | ||||
| 5701 | ||||

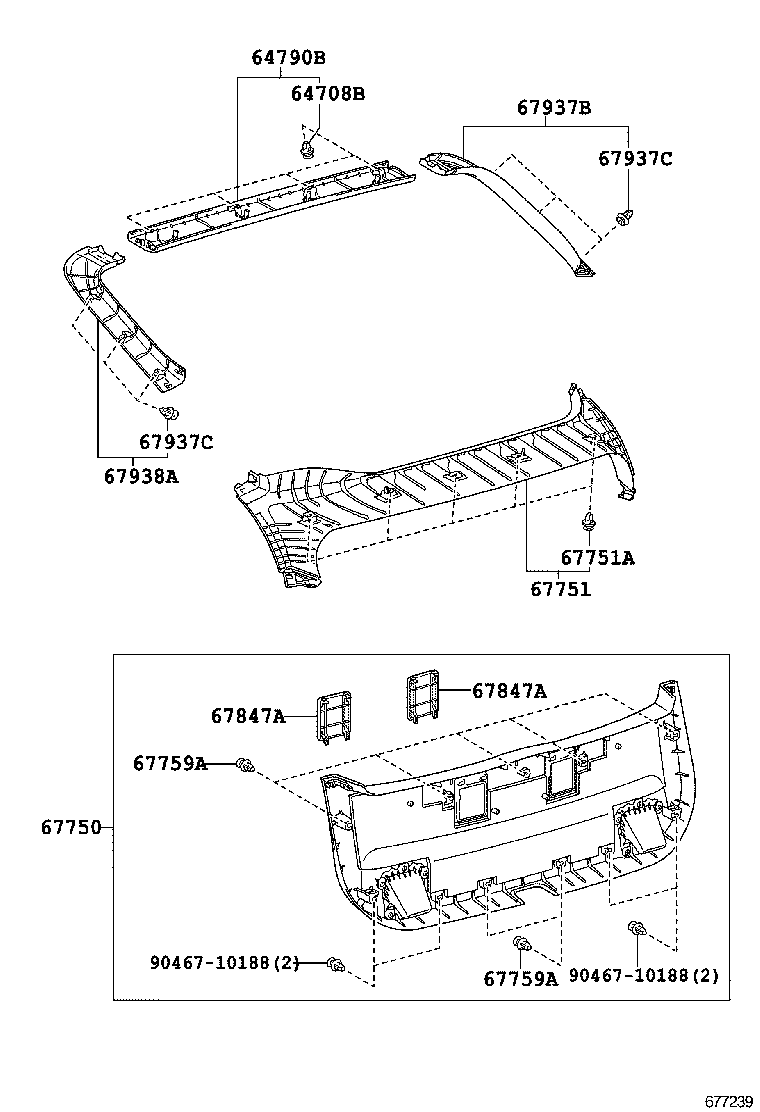

ILLUST NO. 2 OF 2(1201- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64708B - CLIP, BACK DOOR TRIM | ||||
| 90467-10161 |
ZVW35 |
4 | ||
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-47030C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 64790-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-47071C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 67750-47071C0 |
ZVW35..G,S BLACK,TRIM1#,4#,6# |
1 | ||
| 67750-47070C0 |
ZVW35 BLACK,TRIM1#,4#,6# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 67751-47040C0 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER),BLACK,TRIM1#,4#,6# |
1 | ||
| 67751-47050C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 67751-47040C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 62217-13010 |
ZVW35 |
5 | ||
| 67759A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
ZVW35 |
7 | ||
| 67759A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
ZVW35 |
7 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-47010C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
2 | ||
| 67847-47010C0 |
ZVW35..G,S BLACK,TRIM1#,4#,6# |
2 | ||
| 67847-47010C0 |
ZVW35..L BLACK,TRIM1# |
2 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-47010C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
2 | ||
| 67847-47010C0 |
ZVW35..G,S BLACK,TRIM1#,4#,6# |
2 | ||
| 67847-47010C0 |
ZVW35..L BLACK,TRIM1# |
2 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-47031C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 67937-47031C0 |
ZVW35..G,S BLACK,TRIM1#,4#,6# |
1 | ||
| 67937-47030C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 67937-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
ZVW35 |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
ZVW35 |
6 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-47030C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 67938-47031C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 67938-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 67938-47031C0 |
ZVW35..G,S BLACK,TRIM1#,4#,6# |
1 | ||
| Common parts | ||||
| 90467-10188 | ||||
