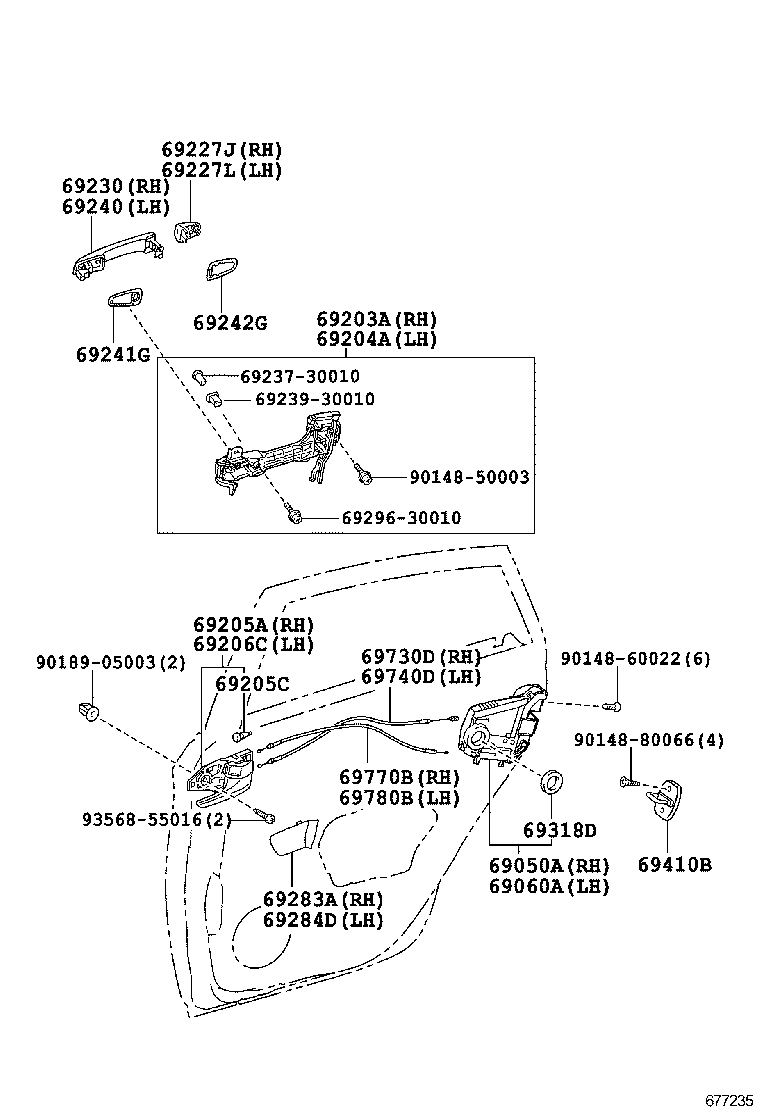

ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-47070 |
ZVW35 |
1 | ||
| 69050-47090 |
ZVW35 |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-47090 |
ZVW35 |
1 | ||
| 69060-47070 |
ZVW35 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-47020 |
ZVW35 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-47020 |
ZVW35 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-47050E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69205-47050C0 |
ZVW35..G,S BLACK,TRIM1#,2#,6# |
1 | ||
| 69205-47050C0 |
ZVW35..L BLACK,TRIM1#,6# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
ZVW35 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-47050C0 |
ZVW35..G,S BLACK,TRIM1#,2#,6# |
1 | ||
| 69206-47050E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69206-47050C0 |
ZVW35..L BLACK,TRIM1#,6# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-47010P1 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69227-47010B0 |
ZVW35 SILVER ME.,8W1 |
1 | ||
| 69227-47010P4 |
ZVW35 SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-47010B0 |
ZVW35 SILVER ME.,8W1 |
1 | ||
| 69227-47010P4 |
ZVW35 SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69227-47010P1 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69211-74020P2 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69211-74020P5 |
ZVW35 SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69211-74020B0 |
ZVW35 SILVER ME.,8W1 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69211-74020B0 |
ZVW35 SILVER ME.,8W1 |
1 | ||
| 69211-74020P5 |
ZVW35 SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69211-74020P2 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-30111 |
ZVW35 |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-47020 |
ZVW35 |
2 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-47010B2 |
ZVW35..G,S DK.GRAY,TRIM1#,60 |
1 | ||
| 69283-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69283-47010B2 |
ZVW35..L DK.GRAY,TRIM1# |
1 | ||
| 69283-47010G0 |
ZVW35..G,S AQUA,TRIM60 |
1 | ||
| 69283-47010G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 69283-47010C0 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69284-47010C0 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 69284-47010B2 |
ZVW35..G,S DK.GRAY,TRIM1#,60 |
1 | ||
| 69284-47010G0 |
ZVW35..G,S AQUA,TRIM60 |
1 | ||
| 69284-47010B2 |
ZVW35..L DK.GRAY,TRIM1# |
1 | ||
| 69284-47010G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
ZVW35 |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-33010 |
ZVW35 |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-47030 |
ZVW35 |
1 | ||
| 69730-47050 |
ZVW35 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-47050 |
ZVW35 |
1 | ||
| 69730-47030 |
ZVW35 |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-47040 |
ZVW35 |
1 | ||
| 69770-47070 |
ZVW35 |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-47040 |
ZVW35 |
1 | ||
| 69770-47070 |
ZVW35 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||
| 93568-55016 | ||||
