ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)

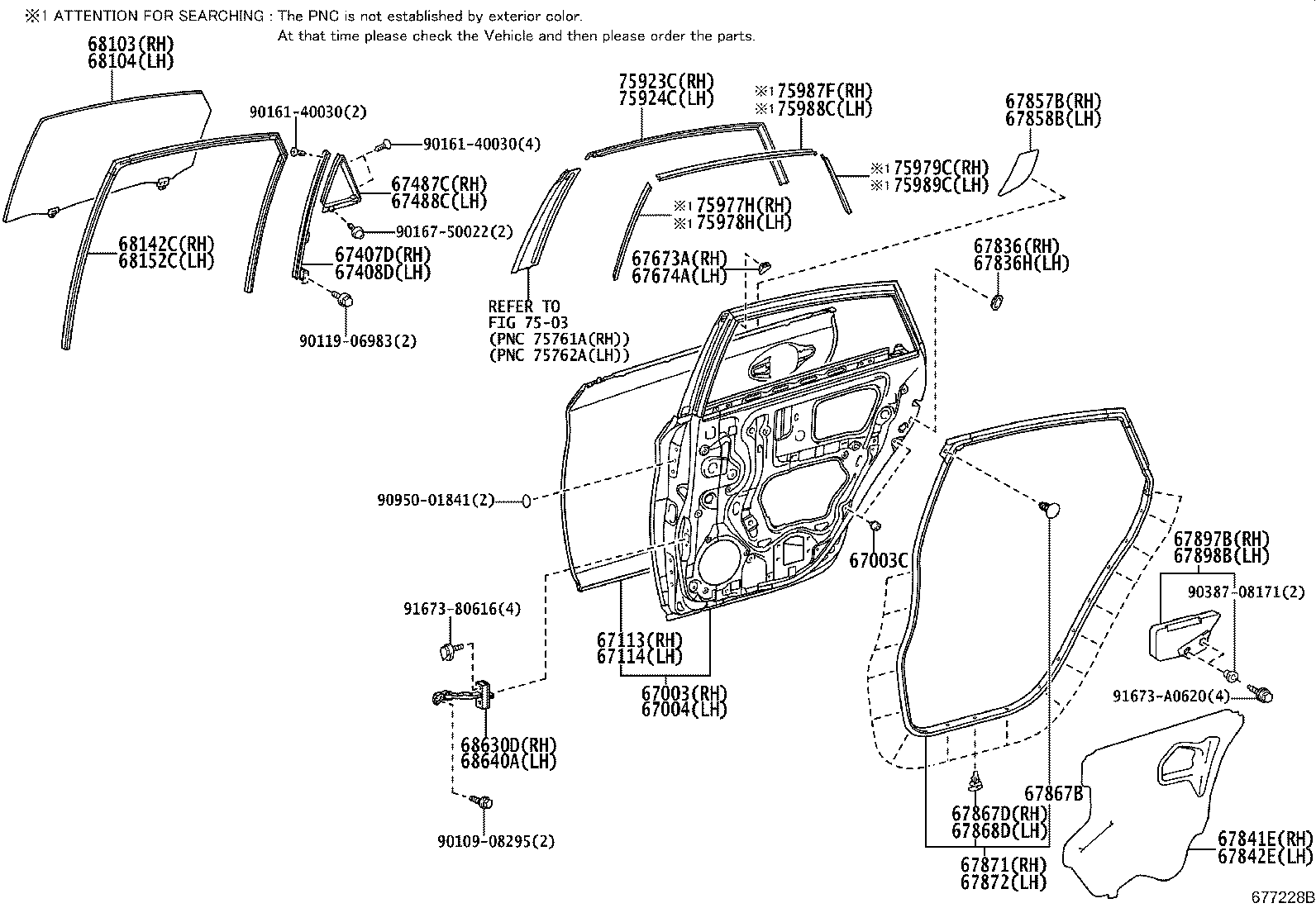

ILLUST NO. 1 OF 2(1201- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-47070 |
ZVW35..USA |
1 | ||
| 67003-47090 |
ZVW35..USA |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
ZVW35 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-47070 |
ZVW35..USA |
1 | ||
| 67004-47090 |
ZVW35..USA |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-47030 |
ZVW35 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-47030 |
ZVW35 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-47030 |
ZVW35 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-47030 |
ZVW35 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-47041 |
ZVW35 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-47041 |
ZVW35 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
ZVW35 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
ZVW35 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
ZVW35 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
ZVW35 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-47090 |
ZVW35 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-47080 |
ZVW35 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-47020 |
ZVW35 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-47010 |
ZVW35 |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-05017C0 |
ZVW35 BLACK |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZVW35 |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZVW35 |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-47030 |
ZVW35 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-47030 |
ZVW35 |
1 | ||
| 67897B - CUSHION, REAR DOOR, RH | ||||
| 67897-47010 |
ZVW35 |
1 | ||
| 67898B - CUSHION, REAR DOOR, LH | ||||
| 67898-47010 |
ZVW35 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-47051 |
ZVW35 *UVCT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-47051 |
ZVW35 *UVCT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-47030 |
ZVW35 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-47030 |
ZVW35 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-47031 |
ZVW35 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-47031 |
ZVW35 |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-47020 |
ZVW35 |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-47020 |
ZVW35 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-47020 |
ZVW35 REFER TO ILLUST. |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-47020 |
ZVW35 REFER TO ILLUST. |
1 | ||
| 75979C - STRIPE, REAR DOOR, OUTSIDE UPPER RH | ||||
| 75979-47020 |
ZVW35 REFER TO ILLUST. |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-47020 |
ZVW35 REFER TO ILLUST. |
1 | ||
| 75988C - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-47020 |
ZVW35 REFER TO ILLUST. |
1 | ||
| 75989C - STRIPE, REAR DOOR, OUTSIDE UPPER LH | ||||
| 75989-47020 |
ZVW35 REFER TO ILLUST. |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90161-40030 | ||||
| 90167-50022 | ||||
| 90387-08171 | ||||
| 90950-01841 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 7503 | ||||

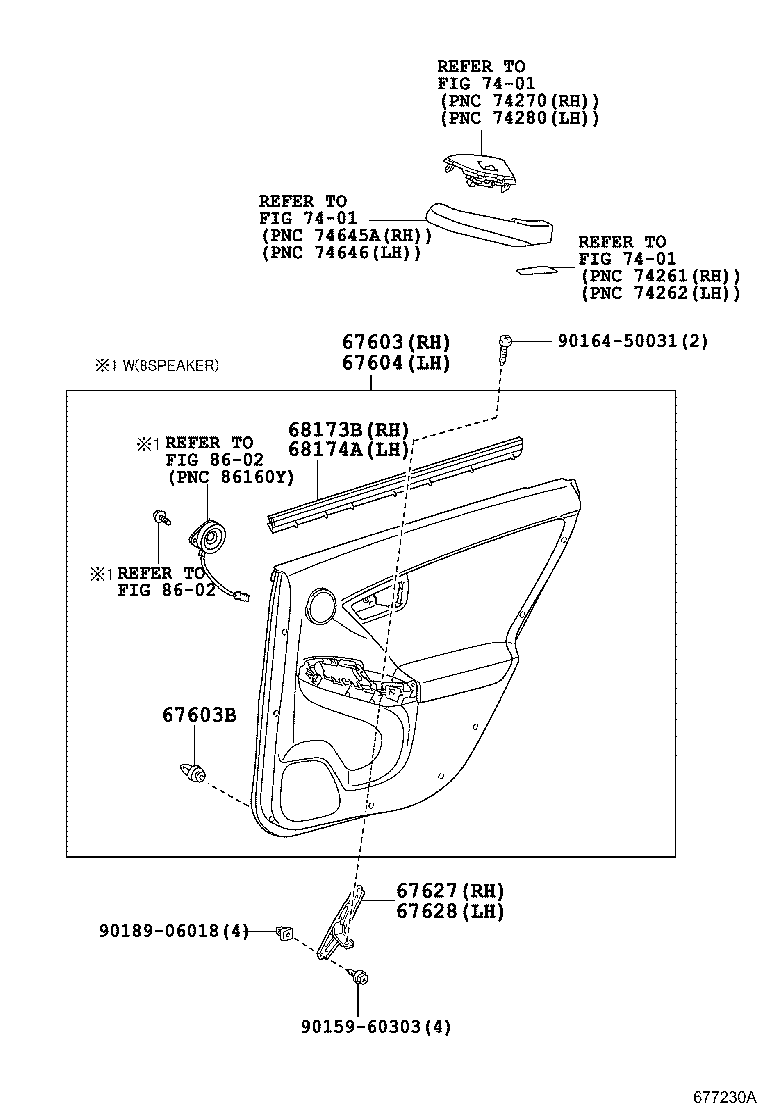

ILLUST NO. 2 OF 2(1201- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-47A20E0 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 67630-47A20G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 67630-47A20G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 67630-47A21C0 |
ZVW35..L,S BLACK,TRIM1# |
1 | ||
| 67630-47A20C0 |
ZVW35..L,S BLACK,TRIM1# |
1 | ||
| 67630-47A21G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW35 |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-47870E0 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 67640-47870C0 |
ZVW35..L,S BLACK,TRIM1# |
1 | ||
| 67640-47870G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 67640-47871G0 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 67640-47870G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 67640-47871C0 |
ZVW35..L,S BLACK,TRIM1# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67627-47010 |
ZVW35 |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67628-47010 |
ZVW35 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-47040 |
ZVW35 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-47040 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||
