ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
(1201- )

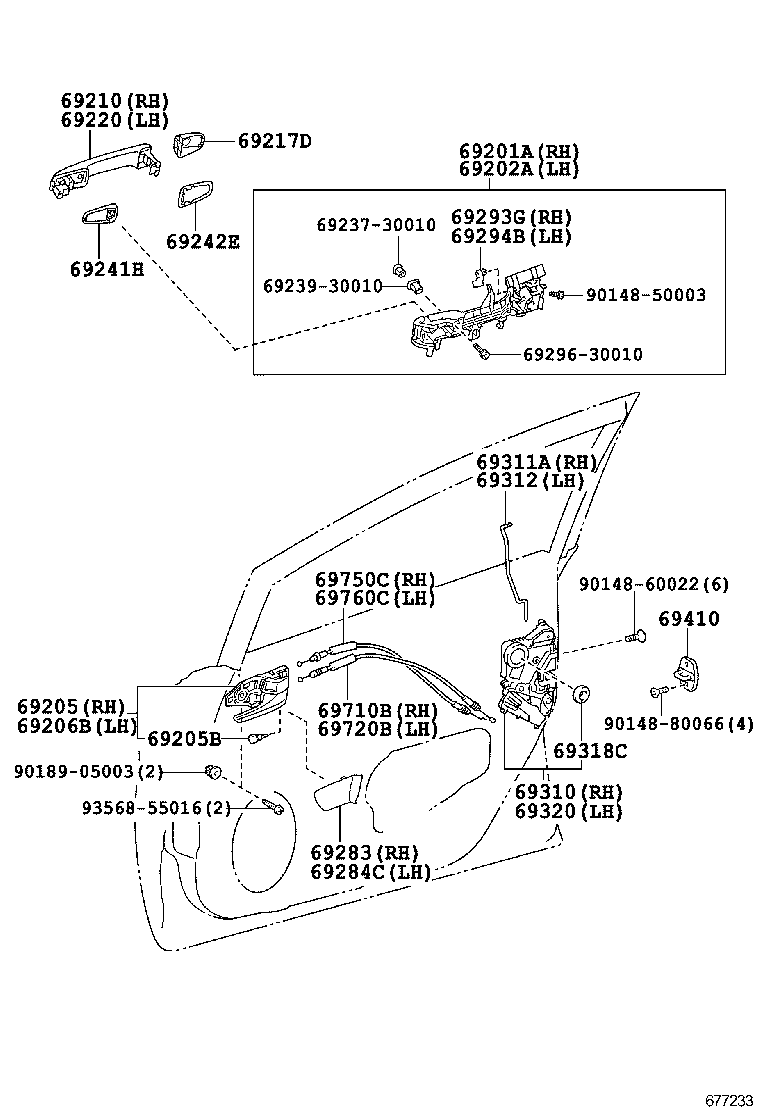

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30071 |
ZVW35 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-30061 |
ZVW35 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-47050E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69205-47050C0 |
ZVW35..L BLACK,TRIM1#,6# |
1 | ||
| 69205-47050C0 |
ZVW35..G,S BLACK,TRIM1#,2#,6# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
ZVW35 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-47050C0 |
ZVW35..G,S BLACK,TRIM1#,2#,6# |
1 | ||
| 69206-47050C0 |
ZVW35..L BLACK,TRIM1#,6# |
1 | ||
| 69206-47050E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-74020P5 |
ZVW35..L,S SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69210-74030B0 |
ZVW35..S SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),SILVER ME.,8W1 |
1 | ||
| 69211-74020B0 |
ZVW35..L,S SILVER ME.,8W1 |
1 | ||
| 69210-74030P2 |
ZVW35..S SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69210-74030B9 |
ZVW35..S SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69211-74020P2 |
ZVW35..L,S ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-74010B0 |
ZVW35 SILVER ME.,8W1,DRIVER SIDE |
1 | ||
| 69217-74010P2 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1,DRIVER SIDE |
1 | ||
| 69217-74010P5 |
ZVW35 SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1,DRIVER SIDE |
1 | ||
| 69250-74010P2 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1,PASSENGER SIDE |
1 | ||
| 69250-74010B0 |
ZVW35 SILVER ME.,8W1,PASSENGER SIDE |
1 | ||
| 69250-74010P5 |
ZVW35 SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1,PASSENGER SIDE |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-74020B0 |
ZVW35..L SILVER ME.,8W1 |
1 | ||
| 69210-74030P2 |
ZVW35..G,S SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69210-74030B0 |
ZVW35..G,S SILVER ME.,8W1 |
1 | ||
| 69210-74030B9 |
ZVW35..G,S ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69211-74020P5 |
ZVW35..L SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1 |
1 | ||
| 69211-74020P2 |
ZVW35..L ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-30111 |
ZVW35 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-47020 |
ZVW35 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-47010B2 |
ZVW35..L DK.GRAY,TRIM1# |
1 | ||
| 69283-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69283-47010G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 69283-47010G0 |
ZVW35..G,S AQUA,TRIM60 |
1 | ||
| 69283-47010B2 |
ZVW35..G,S DK.GRAY,TRIM1#,60 |
1 | ||
| 69283-47010C0 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-47010B2 |
ZVW35..G,S DK.GRAY,TRIM1#,60 |
1 | ||
| 69284-47010C0 |
ZVW35..G,S BLACK,TRIM2# |
1 | ||
| 69284-47010G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 69284-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 69284-47010B2 |
ZVW35..L DK.GRAY,TRIM1# |
1 | ||
| 69284-47010G0 |
ZVW35..G,S AQUA,TRIM60 |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ZVW35 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ZVW35 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-47060 |
ZVW35 |
1 | ||
| 69030-47110 |
ZVW35 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-47040 |
ZVW35 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-47040 |
ZVW35 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
ZVW35 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-47110 |
ZVW35 |
1 | ||
| 69040-47060 |
ZVW35 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ZVW35 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-47030 |
ZVW35 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-47030 |
ZVW35 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-47040 |
ZVW35 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-47040 |
ZVW35 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||
| 93568-55016 | ||||
