ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

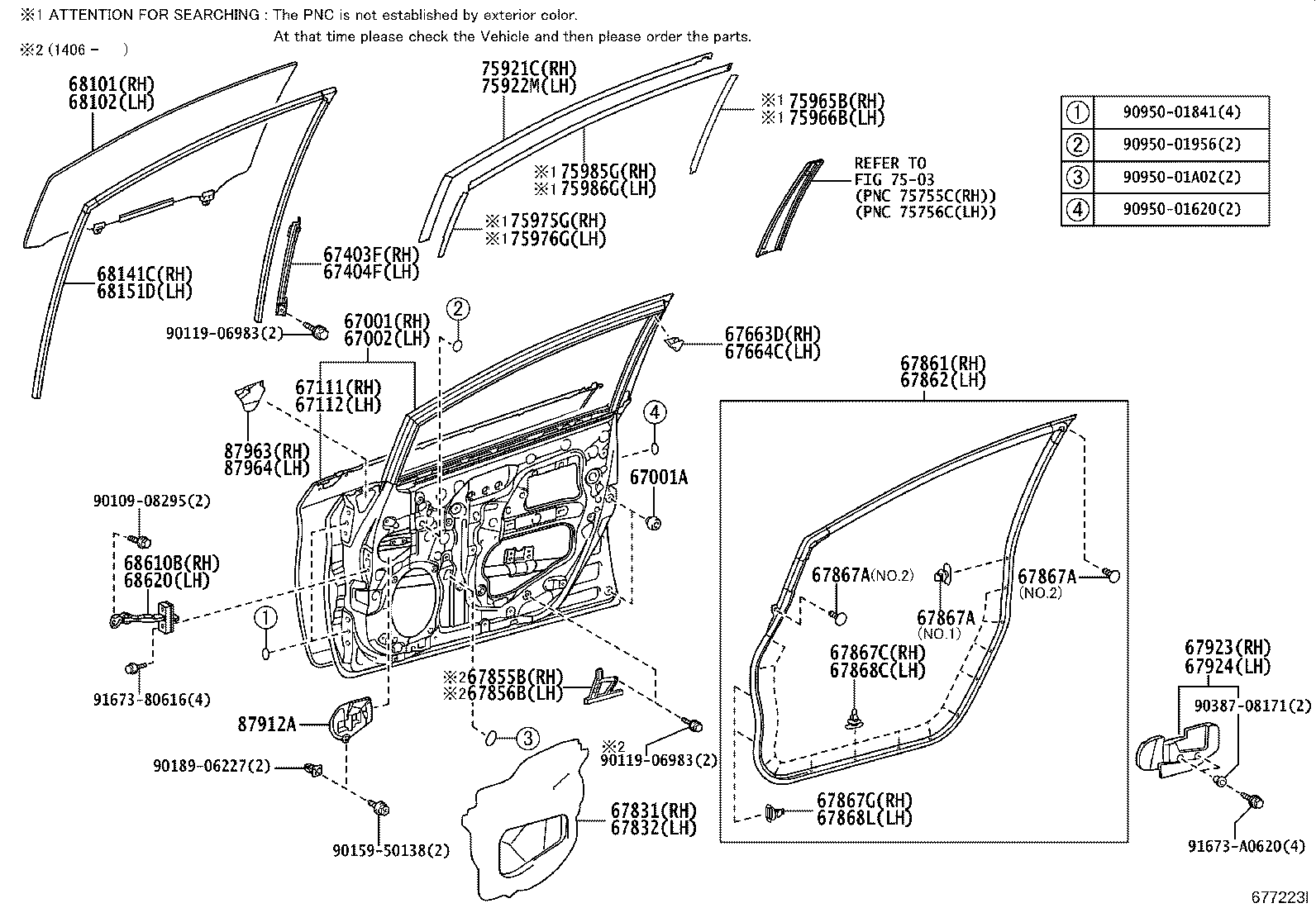

ILLUST NO. 1 OF 2(1201- )

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67001A 67002 67111 67112 67403F 67404F 67663D 67664C 67831 67832 67855B 67856B 67861 67862 67867A 67867A 67867A 67867C 67867G 67868C 67868L 67923 67924 68101 68102 68141C 68151D 68610B 68620 7503 75921C 75922M 75965B 75966B 75975G 75976G 75985G 75986G 87912A 87963 87964 9010908295 9011906983 9011906983 9015950138 9018906227 9038708171 9095001620 9095001841 9095001956 9095001A02 9167380616 91673A0620
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-47080

ZVW35..USA

 1
67001-47070

ZVW35..USA

 1
67001-47140

ZVW35

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09124

ZVW35

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-47070

ZVW35..USA

 1
67002-47140

ZVW35

 1
67002-47080

ZVW35..USA

 1
67002-47170

ZVW35

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-47030

ZVW35

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-47030

ZVW35

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-47030

ZVW35

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-47030

ZVW35

 1
67663D - GARNISH, DOOR FRAME, RH
67663-48010

ZVW35

 1
67664C - GARNISH, DOOR FRAME, LH
67664-48010

ZVW35

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-47070

ZVW35

 1
67831-47071

ZVW35

 1
67831-47140

ZVW35

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-47120

ZVW35

 1
67832-47060

ZVW35

 1
67832-47061

ZVW35

 1
67855B - PROTECTOR, FRONT DOOR PANEL, RH
67855-47020

ZVW35

 1
67856B - PROTECTOR, FRONT DOOR PANEL, LH
67856-47020

ZVW35

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-47030

ZVW35

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-47030

ZVW35

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
90467-05017C0

ZVW35

BLACK,NO.2

 4
90467-04034

ZVW35

NO.1

 2
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
90467-05017C0

ZVW35

BLACK,NO.2

 4
90467-04034

ZVW35

NO.1

 2
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
90467-05017C0

ZVW35

BLACK,NO.2

 4
90467-04034

ZVW35

NO.1

 2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

ZVW35

 13
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52030

ZVW35

 2
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

ZVW35

 13
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52030

ZVW35

 2
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-47050

ZVW35

 1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-47040

ZVW35

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-47072

ZVW35

*UVCT,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-47072

ZVW35

*UVCT,T=3.5,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-47030

ZVW35

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-47030

ZVW35

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-47021

ZVW35

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-47021

ZVW35

 1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-47020

ZVW35

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-47020

ZVW35

 1
75965B - STRIPE, FRONT DOOR NO.4 RH
75965-47010

ZVW35

REFER TO ILLUST.

 1
75966B - STRIPE, FRONT DOOR NO.4 LH
75966-47010

ZVW35

REFER TO ILLUST.

 1
75975G - STRIPE, FRONT DOOR, NO.2 RH
75975-47020

ZVW35

REFER TO ILLUST.

 1
75976G - STRIPE, FRONT DOOR, NO.2 LH
75976-47020

ZVW35

REFER TO ILLUST.

 1
75985G - STRIPE, FRONT DOOR OUTSIDE, RH
75985-47020

ZVW35

REFER TO ILLUST.

 1
75986G - STRIPE, FRONT DOOR OUTSIDE, LH
75986-47020

ZVW35

REFER TO ILLUST.

 1
87912A - PROTECTOR, OUTER MIRROR
87912-47010

ZVW35

RH

 1
87912-47020

ZVW35

LH

 1
87963 - COVER, OUTER MIRROR INSTALL HOLE, RH
87963-47010

ZVW35

 1
87964 - COVER, OUTER MIRROR INSTALL HOLE, LH
87964-47010

ZVW35

 1
Common parts
90109-08295
90119-06983
90159-50138
90189-06227
90387-08171
90950-01620
90950-01841
90950-01956
90950-01A02
91673-80616
91673-A0620
Linked diagrams
7503

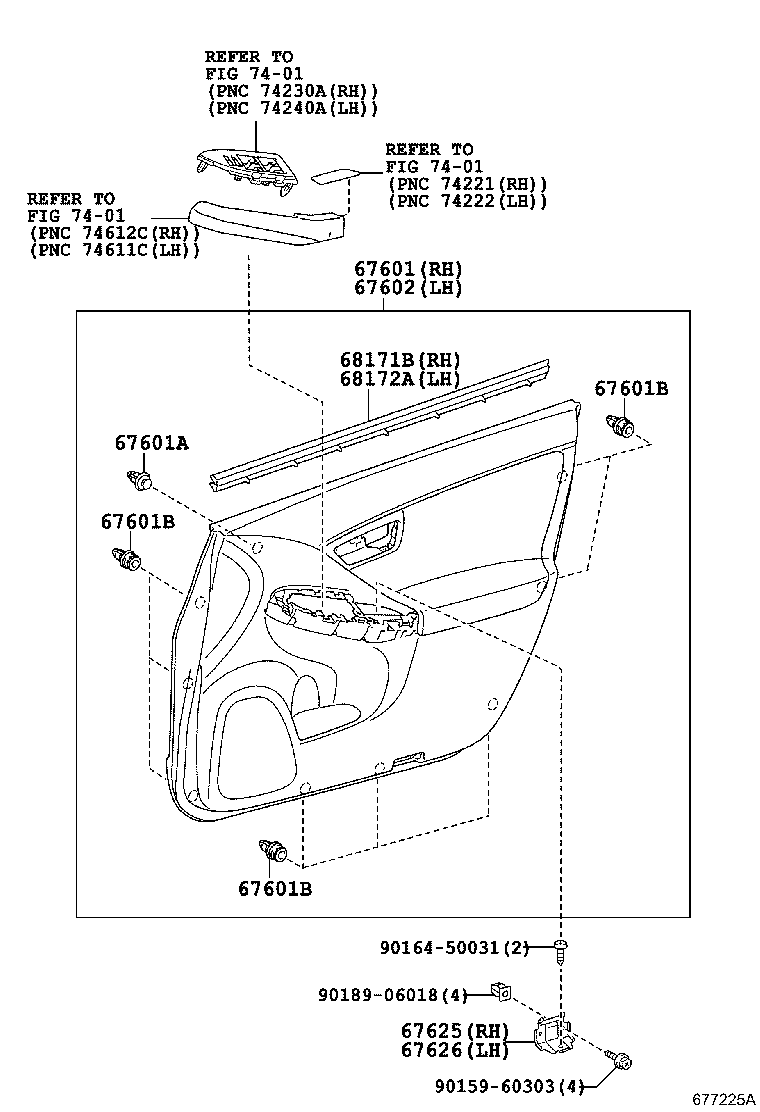

ILLUST NO. 2 OF 2(1201- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67601 67601A 67601B 67601B 67601B 67602 67625 67626 68171B 68172A 7401 7401 7401 9015960303 9016450031 9018906018
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-47600E0

ZVW35..L,S

GREGE/GREGE,TRIM4#

 1
67610-47600G2

ZVW35..L,S

AQUA/AQUA,TRIM6#

 1
67610-47601C1

ZVW35..L,S

BLACK/MD.GRAY,TRIM1#

 1
67610-47600C1

ZVW35..L,S

BLACK/MD.GRAY,TRIM1#

 1
67610-47603G2

ZVW35..S

AQUA/AQUA,TRIM6#

 1
67610-47601G2

ZVW35..S

AQUA/AQUA,TRIM6#

 1
67610-47603C1

ZVW35..L,S

BLACK/MD.GRAY,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-47010

ZVW35

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

ZVW35

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

ZVW35

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

ZVW35

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-47600G2

ZVW35..L,S

AQUA/AQUA,TRIM6#

 1
67620-47600C1

ZVW35..L,S

BLACK/MD.GRAY,TRIM1#

 1
67620-47600E0

ZVW35..L,S

GREGE/GREGE,TRIM4#

 1
67620-47601C1

ZVW35..L,S

BLACK/MD.GRAY,TRIM1#

 1
67620-47603G2

ZVW35..S

AQUA/AQUA,TRIM6#

 1
67620-47603C1

ZVW35..L,S

BLACK/MD.GRAY,TRIM1#

 1
67620-47601G2

ZVW35..S

AQUA/AQUA,TRIM6#

 1
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-47020

ZVW35

 1
67626 - BRACKET, FRONT DOOR TRIM, LH
67625-47020

ZVW35

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-47040

ZVW35

 1
68171-47060

ZVW35

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-47060

ZVW35

 1
68172-47040

ZVW35

 1
Common parts
90159-60303
90164-50031
90189-06018
Linked diagrams
7401
