ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

Click highlighted areas on diagram

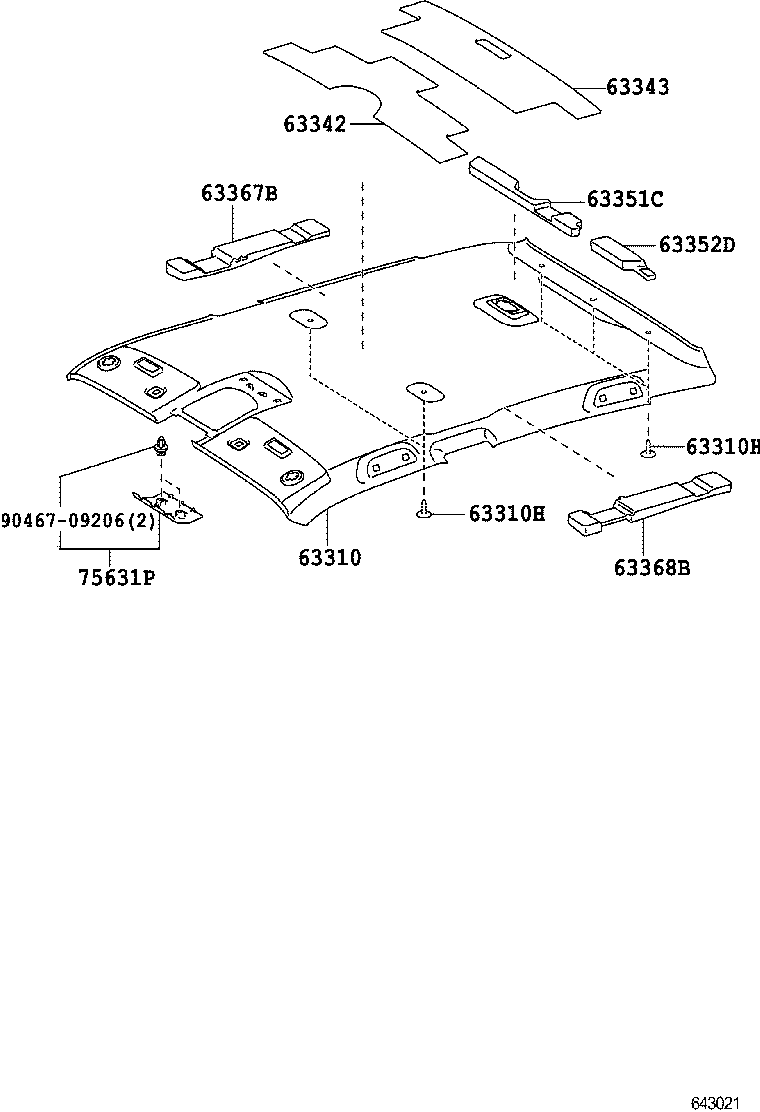

diagram 63310 63310H 63310H 63342 63343 63351C 63352D 63367B 63368B 75631P 9046709206
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-47080B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
63310-47080B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 5
90467-05164B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 5
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 5
90467-05164B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 5
63342 - PAD, ROOF SILENCER, NO.2
63342-47130

ZVW35

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-47110

ZVW35

 1
63351C - PAD, ROOF HEADLINING
63351-47020

ZVW35

 1
63352D - PAD, ROOF HEADLINING, NO.2
63352-47020

ZVW35

 1
63367B - PLATE, ROOF HEADLINING SET, NO.2 RH
63367-47020

ZVW35

 1
63368B - PLATE, ROOF HEADLINING SET, NO.2 LH
63368-47020

ZVW35

 1
75631P - MOULDING, ROOF TOP
75631-47050B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
75631-47050B0

ZVW35..S

LT.GRAY,TRIM1#,2#,4#,6#

 1
Common parts
90467-09206
