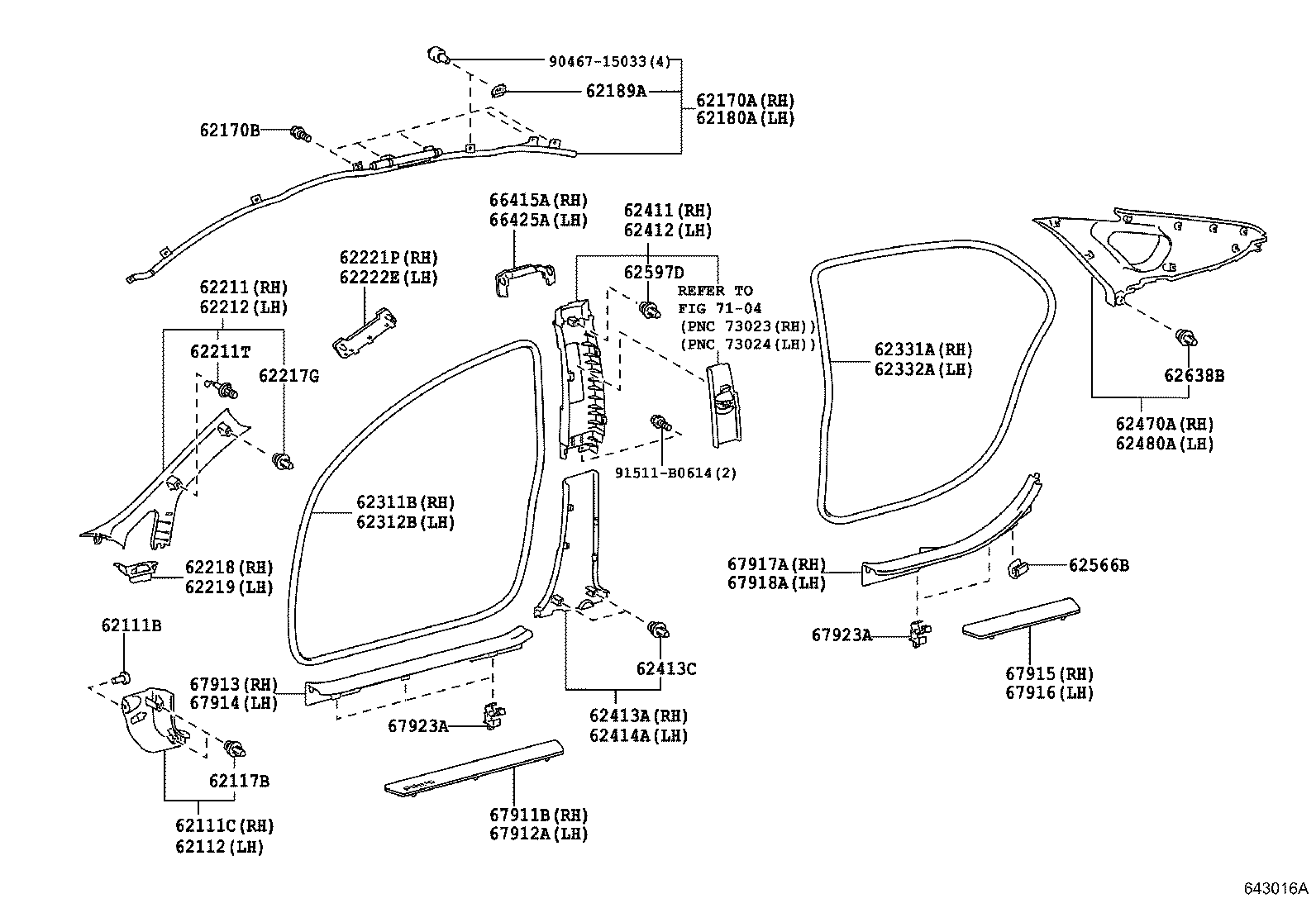

ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06193C0 |
ZVW35 BLACK |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-47130G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 62111-47131C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 62111-47130E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 62111-47130C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 62111-47131G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-47180E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 62112-47180C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 62112-47210C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 62112-47180G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 62112-47210G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
ZVW35 |
4 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-47050 |
ZVW35 |
1 | ||
| 62170-47020 |
ZVW35 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
ZVW35 |
10 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-47050 |
ZVW35 |
1 | ||
| 62180-47020 |
ZVW35 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-20010 |
ZVW35 |
8 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-47120B0 |
ZVW35..L,S LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-20010 |
ZVW35 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-47120B0 |
ZVW35..L,S LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
ZVW35 |
2 | ||
| 62218 - PIECE, FRONT PILLAR GARNISH CORNER, RH | ||||
| 62218-47040B1 |
ZVW35..S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 62218-47040B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62219 - PIECE, FRONT PILLAR GARNISH CORNER, LH | ||||
| 62219-47040B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62219-47040B1 |
ZVW35..S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 62221P - SPACER, FRONT PILLAR, NO.1 RH | ||||
| 62221-47050 |
ZVW35 |
1 | ||
| 62222E - SPACER, FRONT PILLAR, NO.1 LH | ||||
| 62222-47040 |
ZVW35 |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-47030B0 |
ZVW35 LT.GRAY,TRIM4#,6# |
1 | ||
| 62311-47030C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 62311-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-47030B0 |
ZVW35 LT.GRAY,TRIM4#,6# |
1 | ||
| 62312-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 62312-47030C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 62331-47030C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 62331-47030B0 |
ZVW35 LT.GRAY,TRIM4#,6# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-47030B0 |
ZVW35 LT.GRAY,TRIM4#,6# |
1 | ||
| 62332-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 62332-47030C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-47060B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62410-47060B1 |
ZVW35..S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-47060B1 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62420-47060B1 |
ZVW35..S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 62413-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 62413-47040C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 62413-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ZVW35 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 62414-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 62414-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 62414-47040C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-47110B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62470-47110B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-47080B0 |
ZVW35..L LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 62480-47080B0 |
ZVW35..G,S LT.GRAY,TRIM1#,2#,4#,6# |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-32010 |
ZVW35 |
2 | ||
| 62597D - CLIP | ||||
| 90467-10167 |
ZVW35 |
2 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
ZVW35 |
18 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-47010 |
ZVW35 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-47010 |
ZVW35 |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-47030 |
ZVW35 |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-47030 |
ZVW35 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-47041G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 67913-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 67913-47041C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 67913-47041E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 67913-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 67913-47040C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 67913-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 67914-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 67914-47040C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 67914-47041E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 67914-47041G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 67914-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 67914-47041C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-47030 |
ZVW35 |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-47020 |
ZVW35 |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-47040C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 67917-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 67917-47041E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 67917-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 67917-47041C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 67917-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 67917-47041G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-47040C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 67918-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 67918-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 67918-47041G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 67918-47041E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 67918-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 67918-47041C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-47060 |
ZVW35 |
10 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-47060 |
ZVW35 |
10 | ||
| Common parts | ||||
| 90467-15033 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 7104 | ||||
