ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

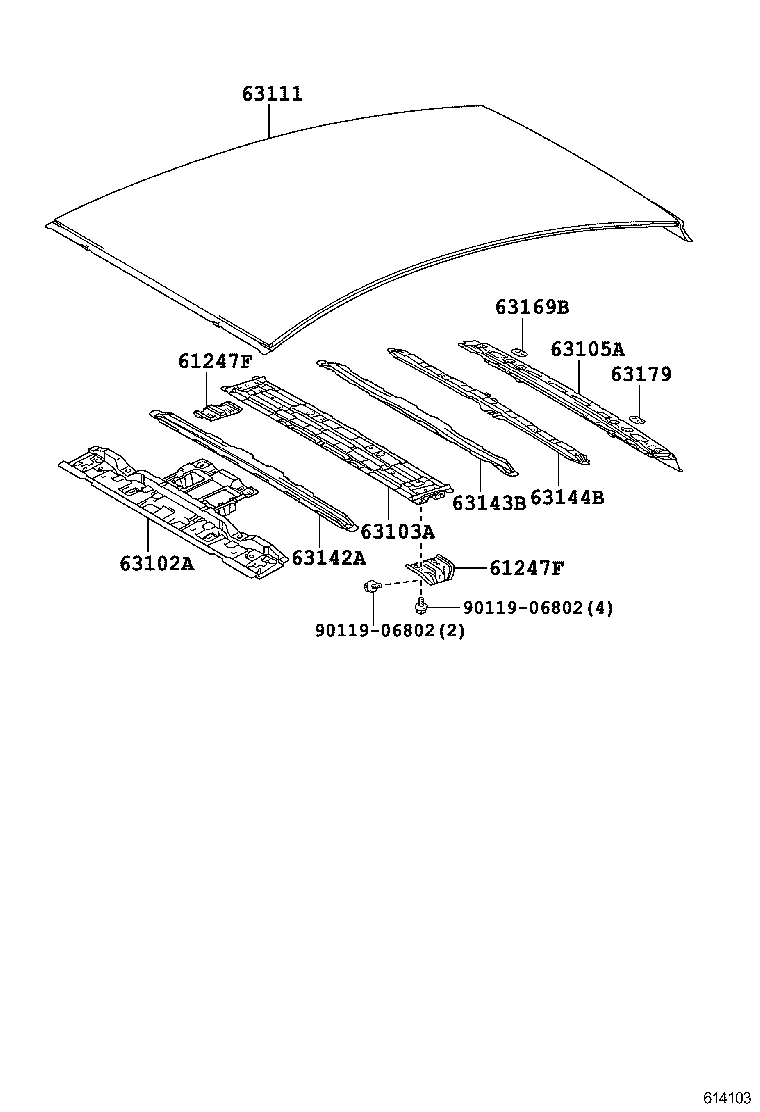

Click highlighted areas on diagram

diagram 61247F 61247F 63102A 63103A 63105A 63111 63142A 63143B 63144B 63169B 63179 9011906802 9011906802
Part # Description Qty Price
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-47020

ZVW35

 2
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-47020

ZVW35

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-47900

ZVW35

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-47010

ZVW35

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-47020

ZVW35

 1
63111 - PANEL, ROOF
63111-47030

ZVW35

 1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63142-47020

ZVW35

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-47030

ZVW35

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-47020

ZVW35

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

ZVW35

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

ZVW35

 1
Common parts
90119-06802
