ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

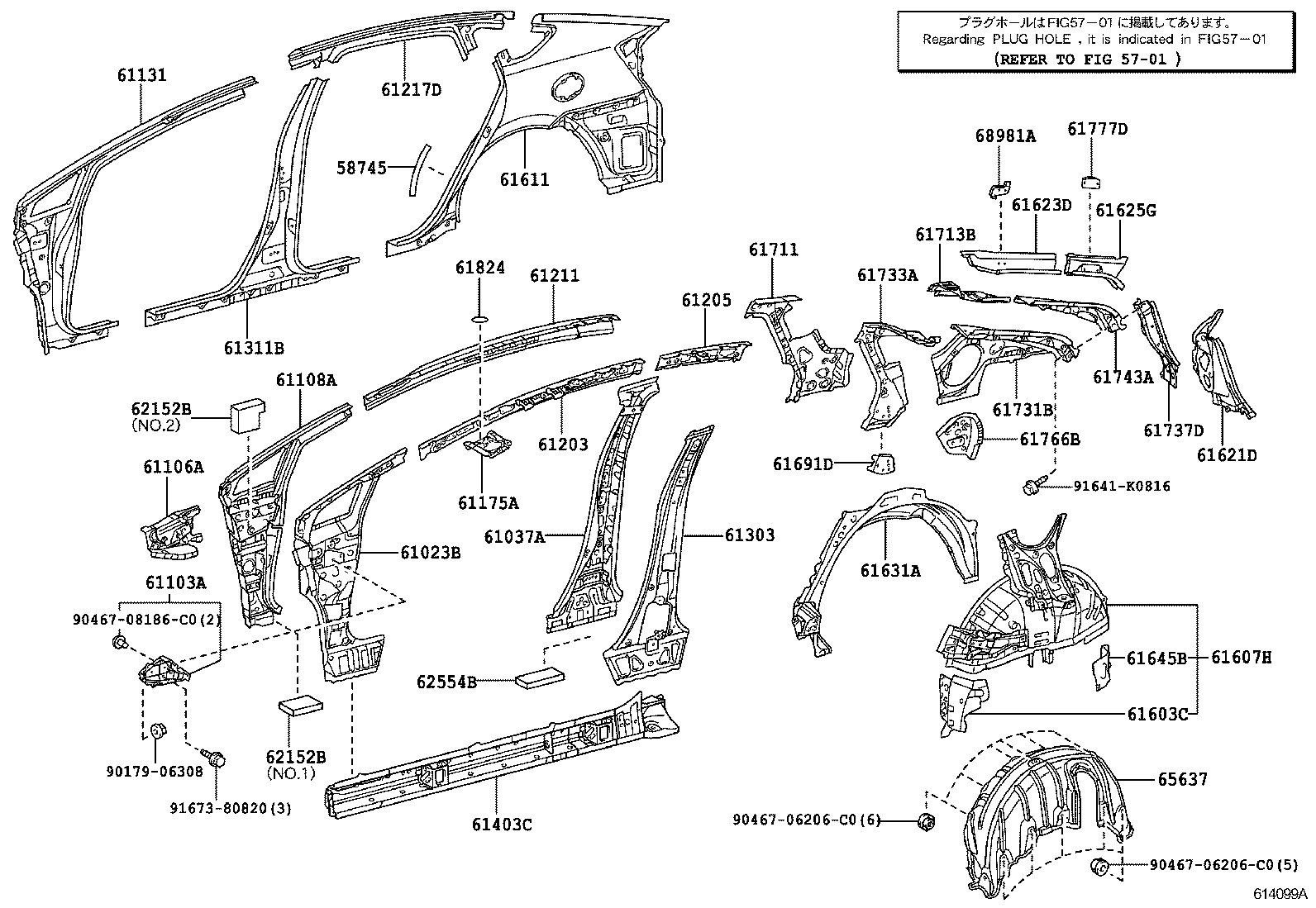

ILLUST NO. 1 OF 2(1201- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58745-47020 |
ZVW35 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-47050 |
ZVW35 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-47060 |
ZVW35 |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-47030 |
ZVW35 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-47010 |
ZVW35 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-47040 |
ZVW35 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-47030 |
ZVW35 |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-47020 |
ZVW35 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-47010 |
ZVW35 |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61205-47010 |
ZVW35 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61201-47020 |
ZVW35 |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61217-47010 |
ZVW35 |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-47040 |
ZVW35 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-47030 |
ZVW35 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-47030 |
ZVW35 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-12600 |
ZVW35 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-47090 |
ZVW35 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-47120 |
ZVW35 |
1 | ||
| 61601-47130 |
ZVW35 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-47030 |
ZVW35 |
1 | ||
| 61623D - EXTENSION, QUARTER PANEL, FRONT RH | ||||
| 61623-47010 |
ZVW35 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-47040 |
ZVW35 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-47010 |
ZVW35 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-47010 |
ZVW35 |
1 | ||
| 61691D - REINFORCE, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 61691-47010 |
ZVW35 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-47020 |
ZVW35 |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-47020 |
ZVW35 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-47030 |
ZVW35 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-47020 |
ZVW35 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-47020 |
ZVW35 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-47010 |
ZVW35 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-47020 |
ZVW35 |
1 | ||
| 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH | ||||
| 61777-28030 |
ZVW35 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12050 |
ZVW35 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZVW35 NO.1 |
2 | ||
| 62152-47010 |
ZVW35 NO.2 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZVW35 NO.1 |
2 | ||
| 62152-47010 |
ZVW35 NO.2 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12180 |
ZVW35 |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-47021 |
ZVW35 |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90179-06308 | ||||
| 90467-06206C0 | ||||
| 90467-08186C0 | ||||
| 91641-K0816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||

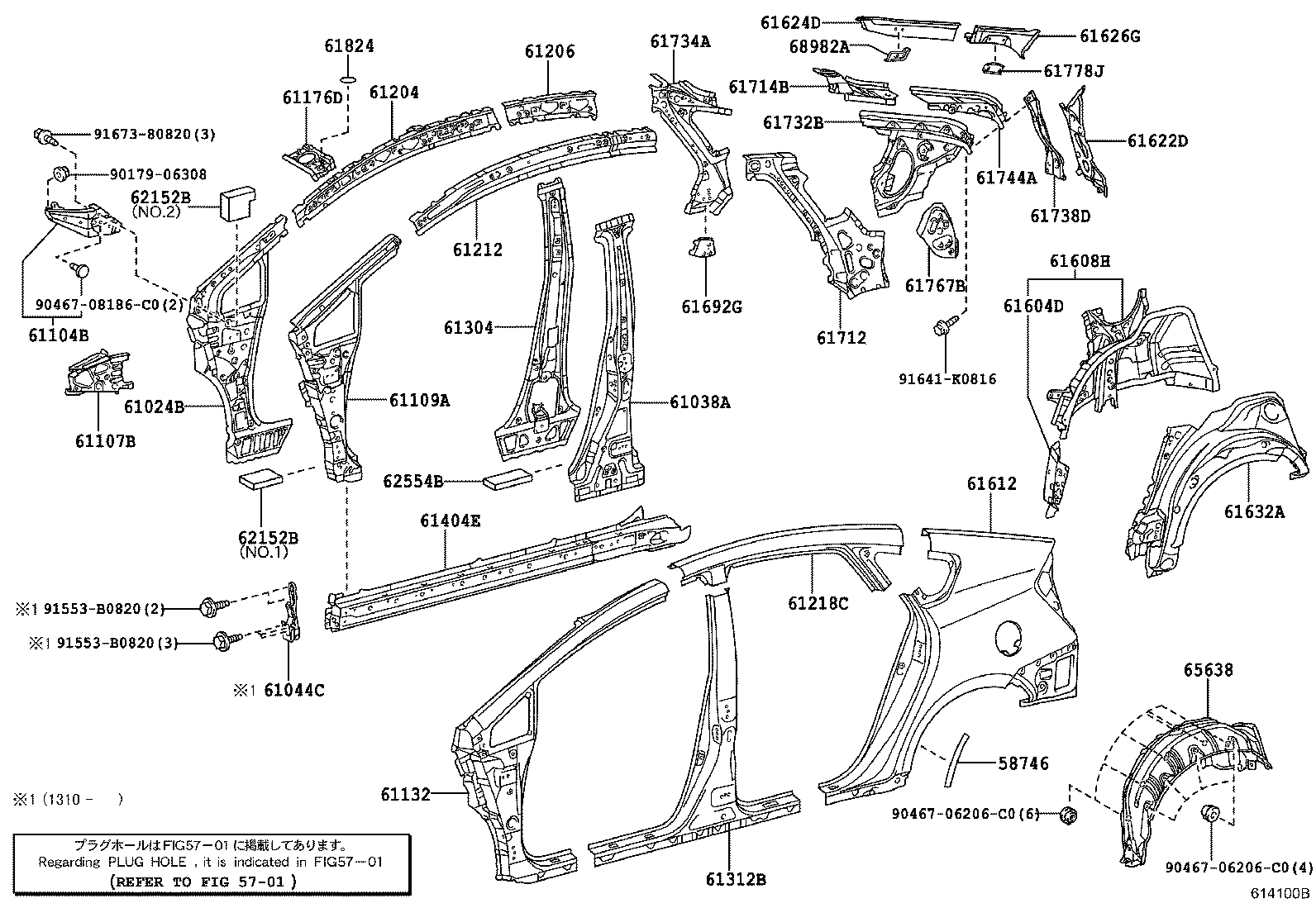

ILLUST NO. 2 OF 2(1201- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58746-47020 |
ZVW35 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-47060 |
ZVW35 |
1 | ||
| 61024-47080 |
ZVW35 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-47050 |
ZVW35 |
1 | ||
| 61044C - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH | ||||
| 61044-47010 |
ZVW35 |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-47030 |
ZVW35 |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-47010 |
ZVW35 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-47030 |
ZVW35 |
1 | ||
| 61109-47050 |
ZVW35 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-47050 |
ZVW35 |
1 | ||
| 61132-47030 |
ZVW35 |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-47020 |
ZVW35 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-47040 |
ZVW35 |
1 | ||
| 61204-47010 |
ZVW35 |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61206-47010 |
ZVW35 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-47010 |
ZVW35 |
1 | ||
| 61202-47030 |
ZVW35 |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-47010 |
ZVW35 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-47040 |
ZVW35 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-47020 |
ZVW35 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-47030 |
ZVW35 |
1 | ||
| 61404-47050 |
ZVW35 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-12610 |
ZVW35 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-47061 |
ZVW35 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-47140 |
ZVW35 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-47030 |
ZVW35 |
1 | ||
| 61624D - EXTENSION, QUARTER PANEL, FRONT LH | ||||
| 61624-47010 |
ZVW35 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-47040 |
ZVW35 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-47010 |
ZVW35 |
1 | ||
| 61692G - REINFORCE, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 61692-47010 |
ZVW35 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-47020 |
ZVW35 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-47020 |
ZVW35 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-47030 |
ZVW35 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-47020 |
ZVW35 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-47020 |
ZVW35 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-47010 |
ZVW35 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-47020 |
ZVW35 |
1 | ||
| 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH | ||||
| 61777-28030 |
ZVW35 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12050 |
ZVW35 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZVW35 NO.1 |
2 | ||
| 62152-47010 |
ZVW35 NO.2 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZVW35 NO.1 |
2 | ||
| 62152-47010 |
ZVW35 NO.2 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12180 |
ZVW35 |
2 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-47021 |
ZVW35 |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90179-06308 | ||||
| 90467-06206C0 | ||||
| 90467-08186C0 | ||||
| 91553-B0820 | ||||
| 91641-K0816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
