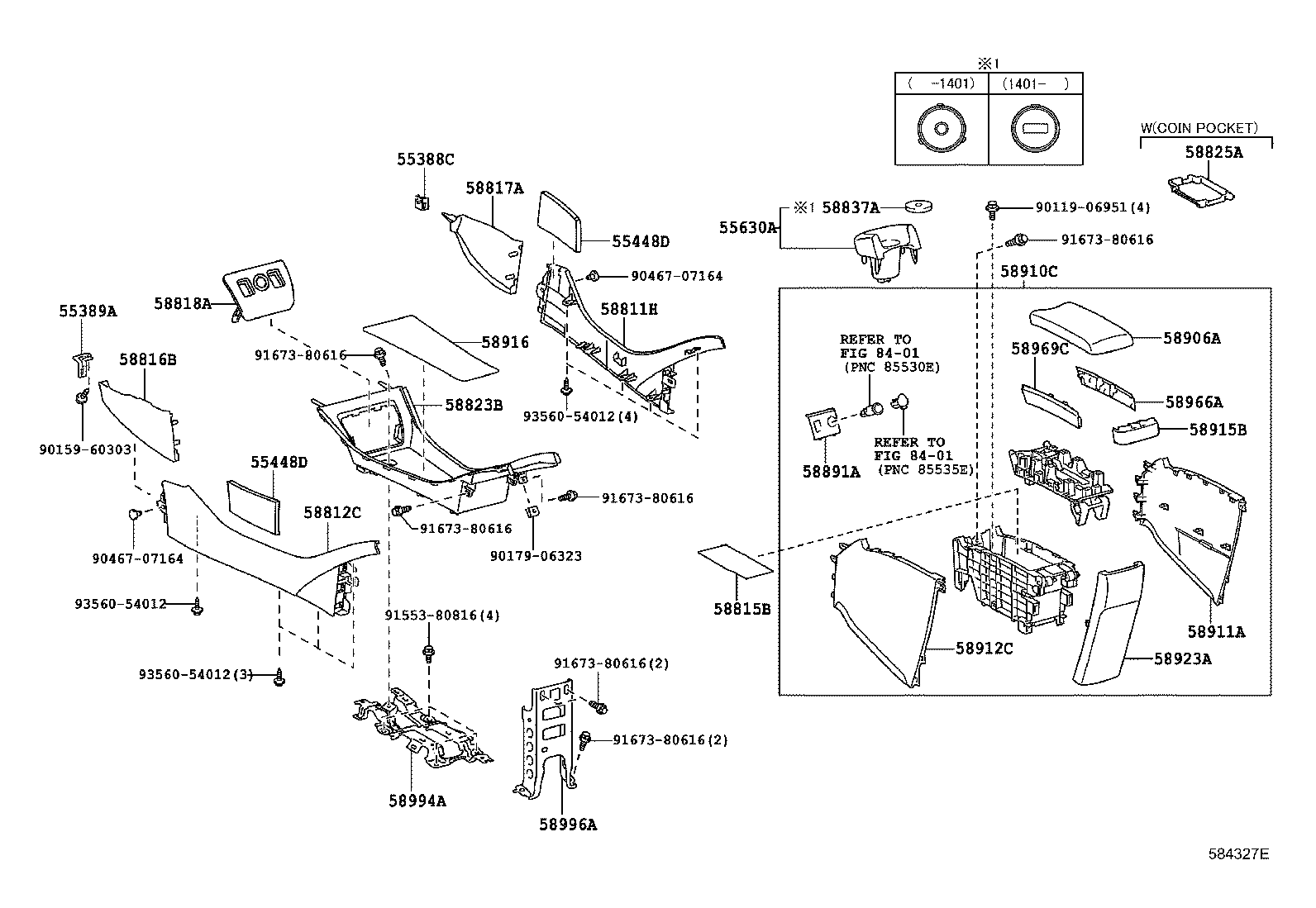

ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-42010 |
ZVW35 |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-12040 |
ZVW35 |
1 | ||
| 55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55448-47070 |
ZVW35 |
2 | ||
| 55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55448-47070 |
ZVW35 |
2 | ||
| 55630A - HOLDER, REAR CONSOLE BOX, CUP | ||||
| 55630-47030 |
ZVW35 |
1 | ||
| 58811H - BOX, CONSOLE, RH | ||||
| 58811-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 58811-47010G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 58811-47010E0 |
ZVW35..L GREGE,TRIM4# |
1 | ||
| 58811-47010C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58811-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 58812C - BOX, CONSOLE, LH | ||||
| 58812-47010E0 |
ZVW35..L GREGE,TRIM4# |
1 | ||
| 58812-47010G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 58812-47010G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 58812-47010C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58812-47010E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-47050 |
ZVW35 |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-47020C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 58816-47020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58816-47020E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 58816-47020C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-47020C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 58817-47020C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 58817-47020E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 58817-47020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58818A - COVER, CONSOLE BOX, FR | ||||
| 58818-47060E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 58818-47060C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 58818-47060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58818-47060C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 58823B - BOX, CONSOLE COMPARTMENT | ||||
| 58823-47020E0 |
ZVW35..L GREGE,TRIM4# |
1 | ||
| 58823-47020G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 58823-47020G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 58823-47020E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 58823-47020C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-47020 |
ZVW35 COIN POCKET-WITH(REAR CONSOLE) |
1 | ||
| 58837A - PAD, CONSOLE BOX SILENCER, NO.2 | ||||
| 58837-47010 |
ZVW35 |
1 | ||
| 55633-50030 |
ZVW35 |
1 | ||
| 58891A - PANEL, EQUIPMENT SET, NO.1 | ||||
| 58819-47010 |
ZVW35 |
1 | ||
| 58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58906-47040E0 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 58906-47041B2 |
ZVW35..L,S GRAY,TRIM1# |
1 | ||
| 58906-47041G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 58906-47040G2 |
ZVW35..L,S AQUA,TRIM6# |
1 | ||
| 58906-47041E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 58906-47042E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 58906-47040B2 |
ZVW35..L,S GRAY,TRIM1# |
1 | ||
| 58906-47042G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 58906-47042B2 |
ZVW35..L,S GRAY,TRIM1# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58901-47190E0 |
ZVW35..L,S GREGE,TRIM4# |
1 | ||
| 58901-47191E0 |
ZVW35..S GREGE,TRIM4# |
1 | ||
| 58901-47190B3 |
ZVW35..L,S GRAY/BLACK,TRIM1# |
1 | ||
| 58901-47190G2 |
ZVW35..L,S AQUA,TRIM6# |
1 | ||
| 58901-47191G2 |
ZVW35..S AQUA,TRIM6# |
1 | ||
| 58901-47191B3 |
ZVW35..L,S GRAY/BLACK,TRIM1# |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-47050G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 58911-47050E0 |
ZVW35..L GREGE,TRIM4# |
1 | ||
| 58911-47050C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58911-47050G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 58911-47050E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-47060E0 |
ZVW35..L GREGE,TRIM4# |
1 | ||
| 58912-47060G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 58912-47060E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 58912-47060G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 58912-47060C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58915B - COVER, CONSOLE COMPARTMENT DOOR BOX, REAR | ||||
| 58915-47020C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58915-47020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58915-47020E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-47010C1 |
ZVW35 BLACK,TRIM1#,4#,6# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-47030G0 |
ZVW35..L AQUA,TRIM6# |
1 | ||
| 58923-47030G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 58923-47030E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 58923-47030E0 |
ZVW35..L GREGE,TRIM4# |
1 | ||
| 58923-47030C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58966A - INSERT, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58966-47020C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58966-47020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58966-47020E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 58969C - INSERT, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58969-47020E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 58969-47020C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 58969-47020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-47010 |
ZVW35 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90179-06323 | ||||
| 90467-07164 | ||||
| 91553-80816 | ||||
| 91673-80616 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
