ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

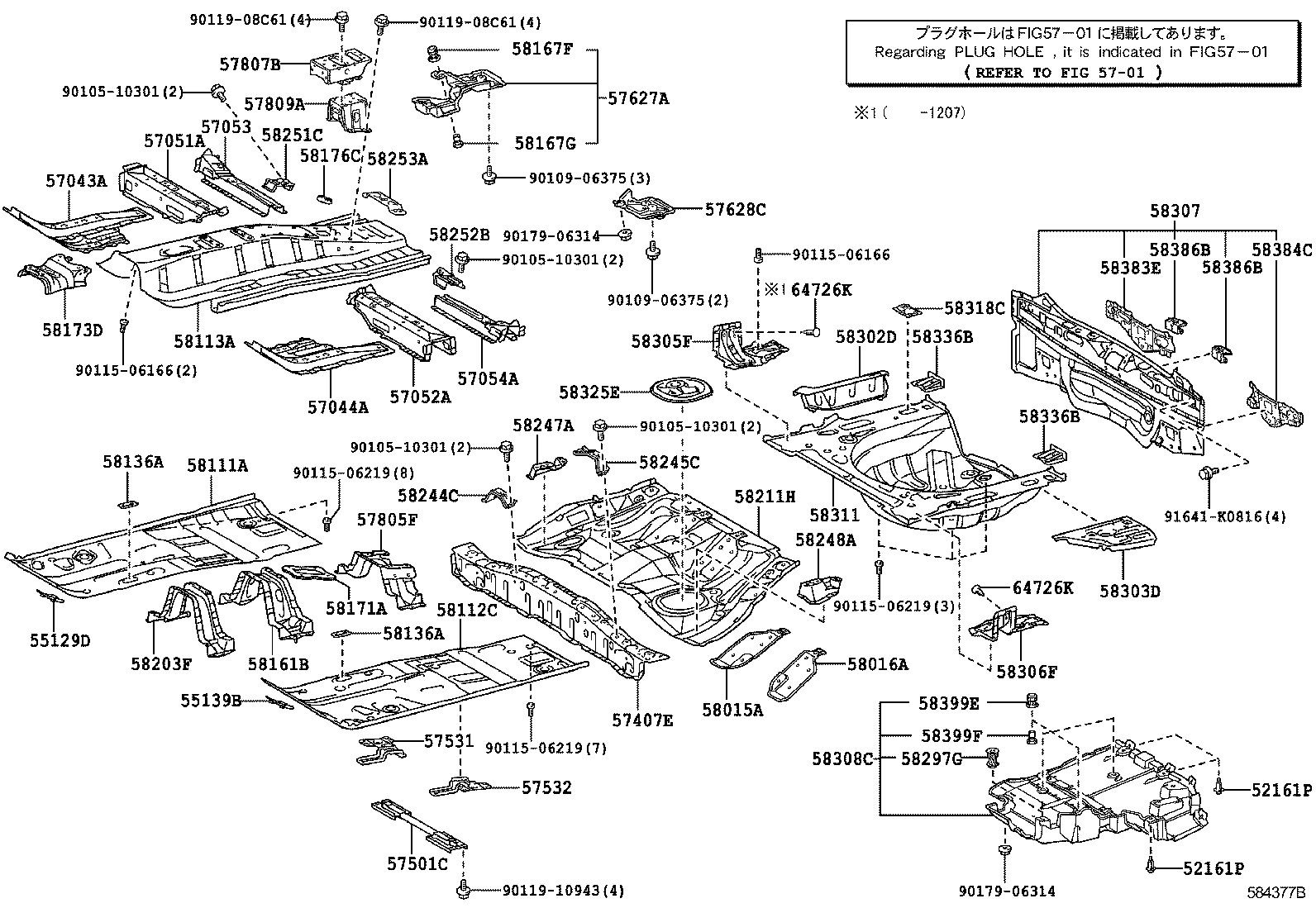

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
3 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
3 | ||
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-12040 |
ZVW35 |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-12050 |
ZVW35 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-12020 |
ZVW35 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-12020 |
ZVW35 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-12060 |
ZVW35 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-12010 |
ZVW35 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-12010 |
ZVW35 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-12010 |
ZVW35 |
1 | ||
| 57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12101 |
ZVW35 |
1 | ||
| 57407-12103 |
ZVW35 |
1 | ||
| 57501C - BRACE SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57501-12020 |
ZVW35 |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-12010 |
ZVW35 |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-12010 |
ZVW35 |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-47010 |
ZVW35 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-12130 |
ZVW35 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-12151 |
ZVW35 |
1 | ||
| 57805-12150 |
ZVW35 |
1 | ||
| 57807B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2 | ||||
| 57807-47010 |
ZVW35 |
1 | ||
| 57809A - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3 | ||||
| 57809-47010 |
ZVW35 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-47042 |
ZVW35 |
1 | ||
| 58015-47041 |
ZVW35 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-47031 |
ZVW35 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-47903 |
ZVW35 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-47900 |
ZVW35 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-47900 |
ZVW35 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ZVW35 |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ZVW35 |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-12231 |
ZVW35 |
1 | ||
| 58167F - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZVW35 SUPER WHITE 2 |
1 | ||
| 90467-17026A0 |
ZVW35 SUPER WHITE 2 |
1 | ||
| 58167G - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17025C0 |
ZVW35 BLACK |
1 | ||
| 90467-17027C0 |
ZVW35 BLACK |
1 | ||
| 58171A - REINFORCE, PARKING BRAKE BASE | ||||
| 58171-12120 |
ZVW35 |
1 | ||
| 58173D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58173-72010 |
ZVW35 |
1 | ||
| 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 | ||||
| 58176-12020 |
ZVW35 |
1 | ||
| 58203F - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING | ||||
| 58203-12070 |
ZVW35 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-47050 |
ZVW35 |
1 | ||
| 58211-47070 |
ZVW35 |
1 | ||
| 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-47010 |
ZVW35 |
1 | ||
| 58245C - BRACKET, REAR SEAT CUSHION MOUNTING, LH | ||||
| 58245-47010 |
ZVW35 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-47010 |
ZVW35 |
1 | ||
| 58247-47011 |
ZVW35 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58248-47011 |
ZVW35 |
1 | ||
| 58248-47010 |
ZVW35 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-12040 |
ZVW35 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-12040 |
ZVW35 |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-12060 |
ZVW35 |
1 | ||
| 58297G - RETAINER, FLOOR CLAMP | ||||
| 58297-47010 |
ZVW35 |
1 | ||
| 58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT | ||||
| 58302-47030 |
ZVW35 |
1 | ||
| 58303D - PANEL SUB-ASSY, REAR FLOOR PARTITION | ||||
| 58303-47031 |
ZVW35 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-12040 |
ZVW35 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-12030 |
ZVW35 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-47060 |
ZVW35 |
1 | ||
| 58308C - COVER SUB-ASSY, REAR FLOOR STEP UNDER | ||||
| 58308-47011 |
ZVW35 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-47090 |
ZVW35 |
1 | ||
| 58311-47091 |
ZVW35 |
1 | ||
| 58318C - BRACKET, REAR FLOOR CROSSMEMBER | ||||
| 58318-47030 |
ZVW35 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12140 |
ZVW35 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ZVW35 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ZVW35 |
2 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-47010 |
ZVW35 |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-47020 |
ZVW35 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
ZVW35 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
ZVW35 |
2 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZVW35 SUPER WHITE 2 |
3 | ||
| 90467-17026A0 |
ZVW35 SUPER WHITE 2 |
3 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17025C0 |
ZVW35 BLACK |
3 | ||
| 90467-17027C0 |
ZVW35 BLACK |
3 | ||
| 64726K - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-12040 |
ZVW35 |
1 | ||
| 64726-12040 |
ZVW35 |
2 | ||
| 64726K - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-12040 |
ZVW35 |
1 | ||
| 64726-12040 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90109-06375 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-08C61 | ||||
| 90119-10943 | ||||
| 90179-06314 | ||||
| 91641-K0816 | ||||
| Linked diagrams | ||||
| 5701 | ||||
