ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

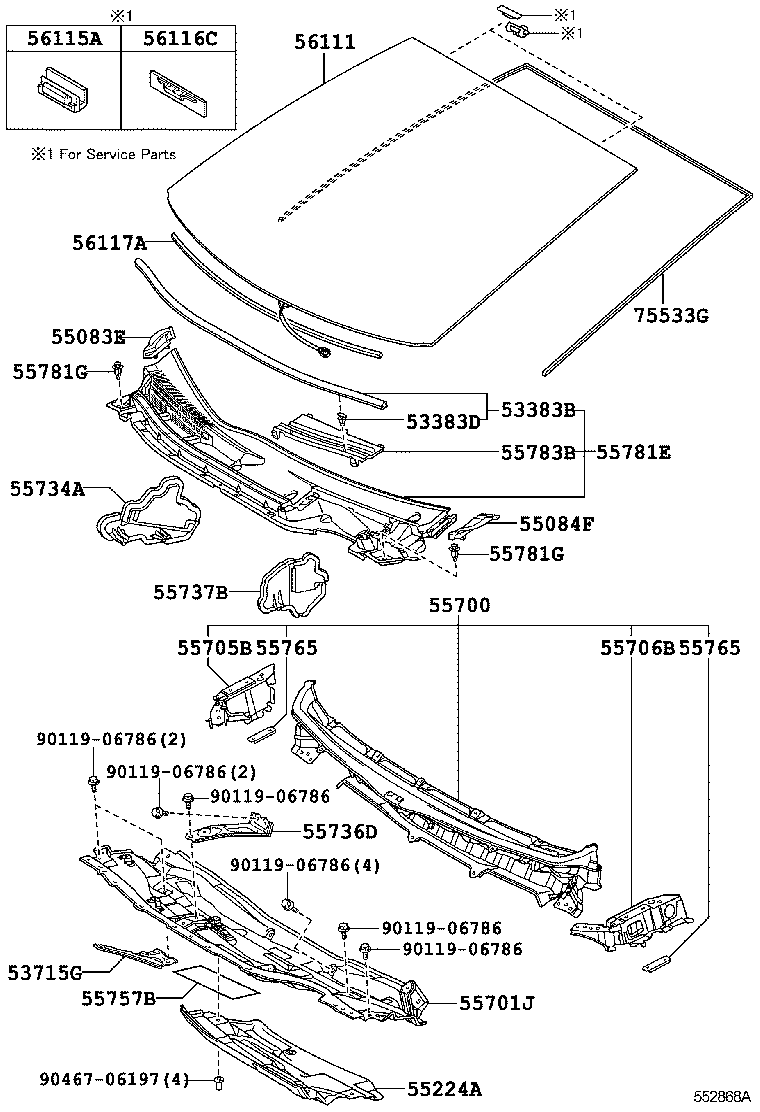

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-47080 |
ZVW35 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-12150 |
ZVW35 |
6 | ||
| 53715G - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-47010 |
ZVW35 |
1 | ||
| 55083E - VENTILATOR SUB-ASSY, COWL SIDE, RH | ||||
| 55083-47020 |
ZVW35 |
1 | ||
| 55084F - VENTILATOR SUB-ASSY, COWL SIDE, LH | ||||
| 55084-47020 |
ZVW35 |
1 | ||
| 55224A - INSULATOR, DASH PANEL, OUTER NO.2 | ||||
| 55224-47011 |
ZVW35 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-47170 |
ZVW35 |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-47031 |
ZVW35 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-47020 |
ZVW35 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-47020 |
ZVW35 |
1 | ||
| 55734A - PLATE, WATER GUARD, RH | ||||
| 55734-47030 |
ZVW35 |
1 | ||
| 55736D - REINFORCEMENT, COWL BODY MOUNTING, LH | ||||
| 55736-47030 |
ZVW35 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-47050 |
ZVW35 |
1 | ||
| 55757B - SHEET COWL TOP INSULATOR | ||||
| 55767-47010 |
ZVW35 |
1 | ||
| 55765 - BRACKET, HOOD DAMPER MOUNTING | ||||
| 55765-44010 |
ZVW35 |
2 | ||
| 55765 - BRACKET, HOOD DAMPER MOUNTING | ||||
| 55765-44010 |
ZVW35 |
2 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-47110 |
ZVW35 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C0 |
ZVW35 BLACK |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C0 |
ZVW35 BLACK |
2 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-47080 |
ZVW35 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-47938 |
ZVW35..L,S *LAM,T=4.56,GREEN |
1 | ||
| 56101-4E928 |
ZVW35..L,S *LAM,T=4.56,GREEN |
1 | ||
| 56101-47994 |
ZVW35..L,S *LAM,T=4.56,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
ZVW35 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
ZVW35 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-47030 |
ZVW35 L=1227 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-47050 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90467-06197 | ||||
