ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)

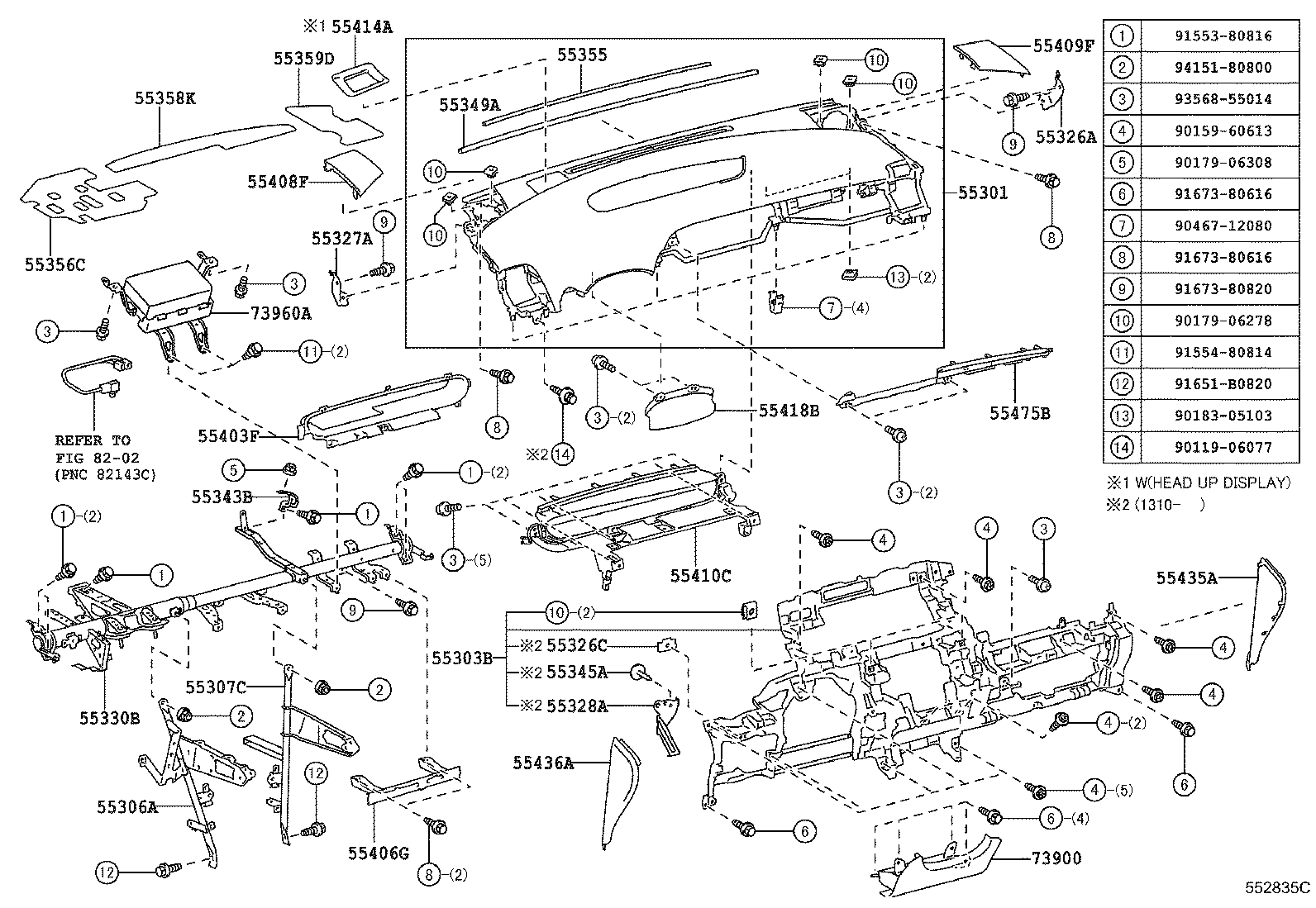

ILLUST NO. 1 OF 2(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-47290C0 |
ZVW35..S BLACK,TRIM1#,6# |
1 | ||
| 55300-47200C0 |
ZVW35 BLACK,TRIM1#,4#,6# |
1 | ||
| 55300-47290C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47050G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55303-47050E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55303-47050C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55303-47050C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55303-47070C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 55303-47070G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47070 |
ZVW35 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-47020 |
ZVW35 |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-47030 |
ZVW35 |
1 | ||
| 55326C - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55326-47060 |
ZVW35 |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-47030 |
ZVW35 |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55327-47080 |
ZVW35 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47091 |
ZVW35 |
1 | ||
| 55330-47093 |
ZVW35 |
1 | ||
| 55330-47092 |
ZVW35 |
1 | ||
| 55330-47094 |
ZVW35 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-47030 |
ZVW35 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05161C0 |
ZVW35 BLACK |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-47070 |
ZVW35 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-47080 |
ZVW35 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-47070 |
ZVW35 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-47050 |
ZVW35 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-47030 |
ZVW35 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-47040 |
ZVW35 |
1 | ||
| 55406G - PLATE SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55406-47040 |
ZVW35 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47020C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 55472-47020C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47010C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 55473-47010C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-47090 |
ZVW35 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-47020 |
ZVW35 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55435-47010C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55435-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55435-47010C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-47010E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55436-47010C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55436-47010C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55436-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55475B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER | ||||
| 55475-47080 |
ZVW35 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-47020C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 73900-47020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73900-47020C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 73900-47020E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47060 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90179-06308 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91553-80816 | ||||
| 91554-80814 | ||||
| 91651-B0820 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

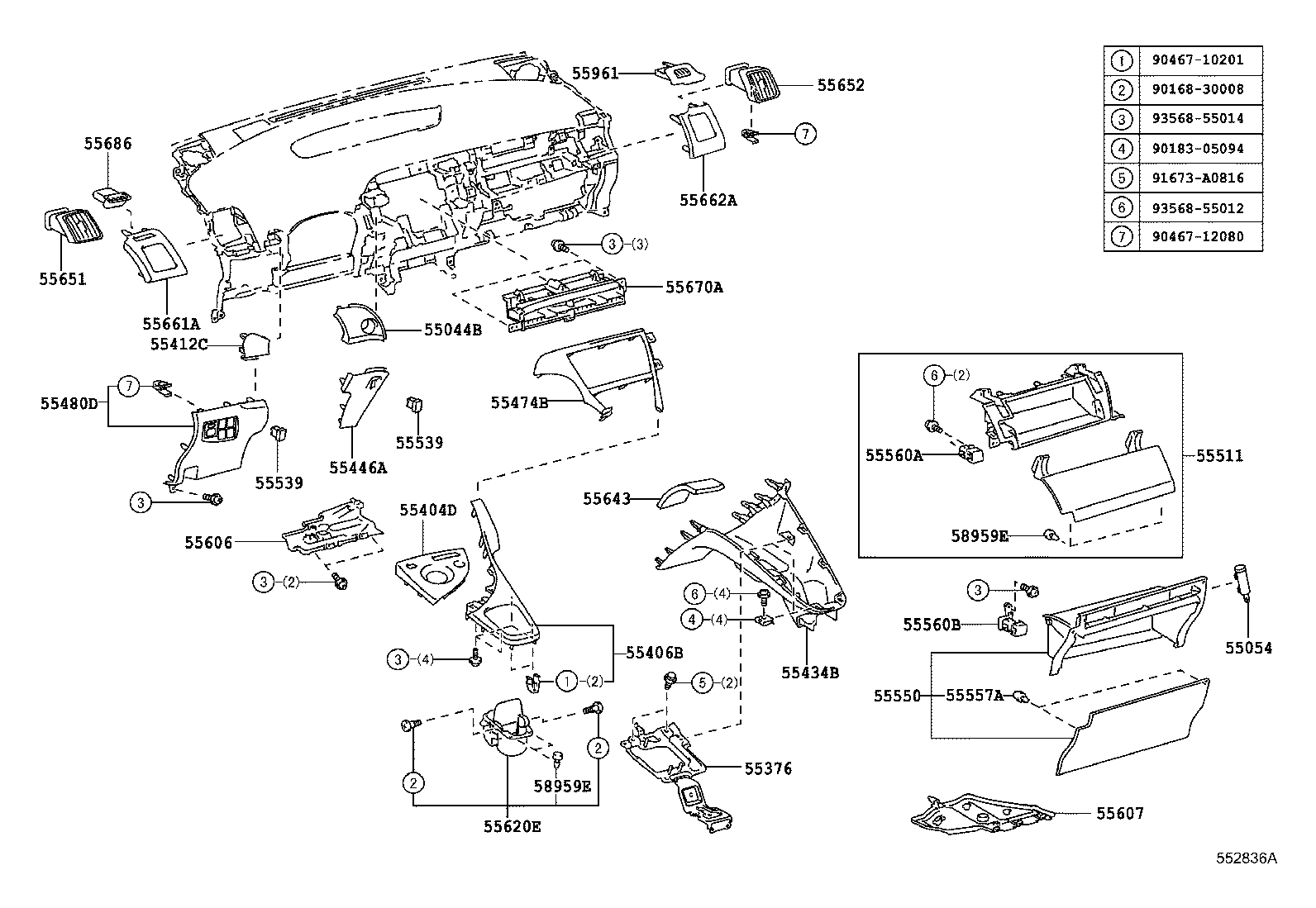

ILLUST NO. 2 OF 2(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-47101 |
ZVW35 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ZVW35 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-47040 |
ZVW35 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-47060 |
ZVW35 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-47090C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55406-47090E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55406-47090C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55406-47090G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 55412-47030C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-47060C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55434-47060C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55434-47060E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55434-47060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55446-47030E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55446-47030C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55446-47030G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-47150 |
ZVW35..L,S |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-47060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55480-47060E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55480-47060C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55480-47060C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-47040C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55511-47041E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 55511-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55511-47041G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 55511-47040C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55511-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55511-47041C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ZVW35 BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ZVW35 BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-47081C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 55550-47081E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55550-47081G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ZVW35 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-47080E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55560-47080G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55506-47020C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 55560-47080C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55560-47080C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55506-47020G0 |
ZVW35..G,S AQUA,TRIM6# |
1 | ||
| 55506-47020E0 |
ZVW35..G,S GREGE,TRIM4# |
1 | ||
| 55560B - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-47060E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55560-47060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55560-47060C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55560-47060C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-47020 |
ZVW35 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-47040 |
ZVW35 |
1 | ||
| 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 55620-47030E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55620-47030C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 55620-47030G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55643 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.1 | ||||
| 55643-47050 |
ZVW35 |
1 | ||
| 55651 - REGISTER, INSTRUMENT PANEL, NO.1 | ||||
| 55651-47030C0 |
ZVW35 BLACK,TRIM1#,4#,6# |
1 | ||
| 55652 - REGISTER, INSTRUMENT PANEL, NO.2 | ||||
| 55652-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55652-47040C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 55652-47040E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-47070C0 |
ZVW35 BLACK,TRIM1#,4#,6# |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55662-47030E0 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 55662-47030C0 |
ZVW35 BLACK,TRIM1# |
1 | ||
| 55662-47030G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-47120 |
ZVW35 |
1 | ||
| 55686 - RETAINER, REGISTER BLADE | ||||
| 55687-47010 |
ZVW35 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-47030C0 |
ZVW35..L BLACK,TRIM1#,4#,6# |
1 | ||
| 55961-47030C0 |
ZVW35..G,S BLACK,TRIM1#,2#,4#,6# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZVW35 |
2 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90168-30008 | ||||
| 90183-05094 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91673-A0816 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
