ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

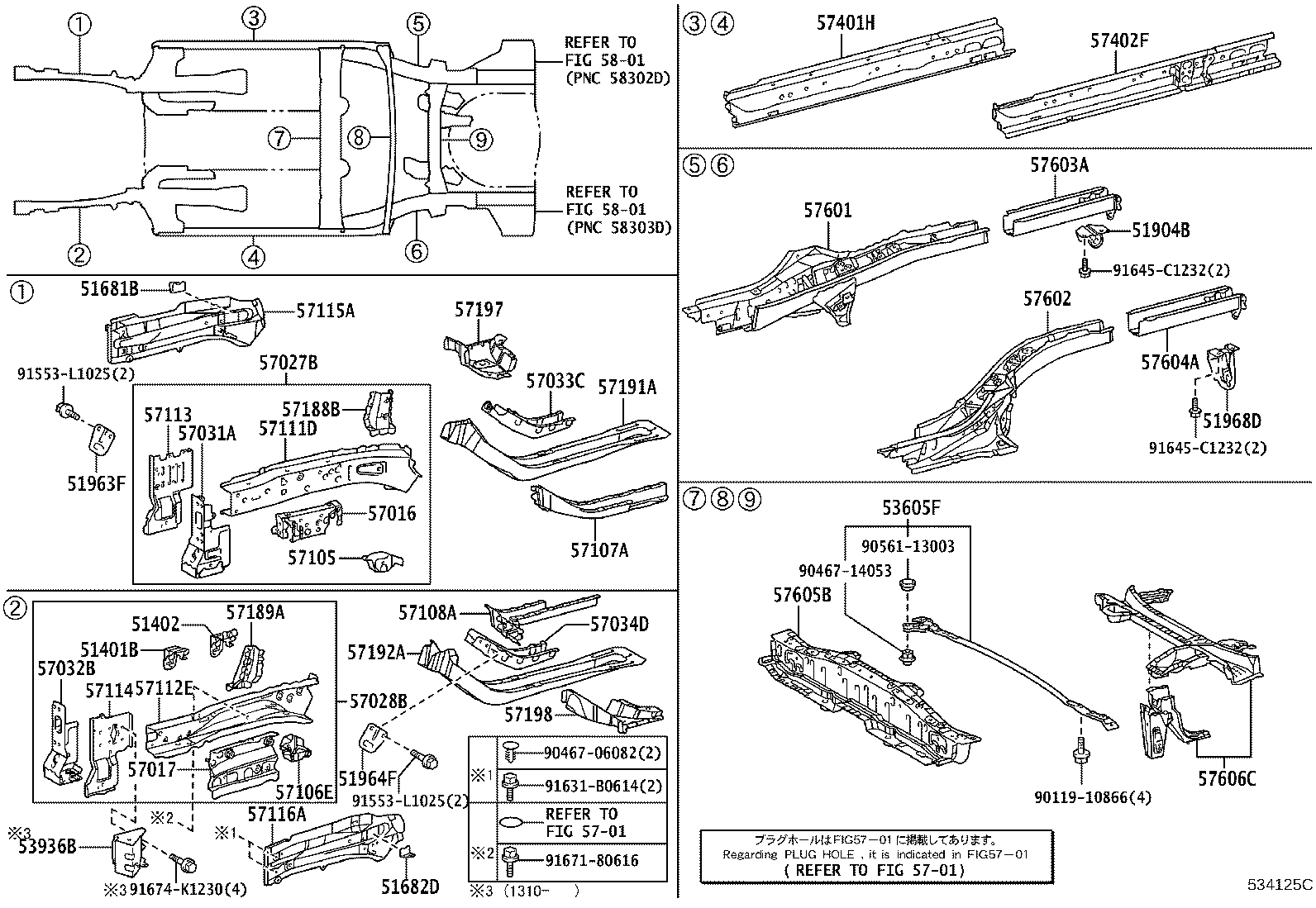

(1201-1405)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-12020 |
ZVW35 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-12020 |
ZVW35 |
1 | ||
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-12080 |
ZVW35 |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-12080 |
ZVW35 |
1 | ||
| 51904B - HANGER SUB-ASSY, EXHAUST PIPE, NO.4 | ||||
| 51904-47010 |
ZVW35 |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-12250 |
ZVW35 |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51964-12040 |
ZVW35 |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-12180 |
ZVW35 |
1 | ||
| 53605F - BRACE SUB-ASSY, REAR SUSPENSION | ||||
| 53605-47021 |
ZVW35 |
1 | ||
| 53605-47020 |
ZVW35 |
1 | ||
| 53936B - PROTECTOR, FRONT END PANEL, LH | ||||
| 53936-76010 |
ZVW35 |
1 | ||
| 53936-47010 |
ZVW35 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ZVW35 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ZVW35 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-12010 |
ZVW35 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-47020 |
ZVW35 |
1 | ||
| 57028-12020 |
ZVW35 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-12010 |
ZVW35 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-12010 |
ZVW35 |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-12010 |
ZVW35 |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-12010 |
ZVW35 |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12160 |
ZVW35 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12150 |
ZVW35 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-12120 |
ZVW35 |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-12140 |
ZVW35 |
1 | ||
| 57111D - MEMBER, FRONT SIDE, INNER RH | ||||
| 57111-12230 |
ZVW35 |
1 | ||
| 57112E - MEMBER, FRONT SIDE, INNER LH | ||||
| 57112-12190 |
ZVW35 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12220 |
ZVW35 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12190 |
ZVW35 |
1 | ||
| 57018-47010 |
ZVW35 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12090 |
ZVW35 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12090 |
ZVW35 |
1 | ||
| 57116-12091 |
ZVW35 |
1 | ||
| 57116-12090 |
ZVW35 |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-12030 |
ZVW35 |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-12010 |
ZVW35 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-12070 |
ZVW35 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-12060 |
ZVW35 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-12040 |
ZVW35 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57078-47020 |
ZVW35 |
1 | ||
| 57198-12040 |
ZVW35 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-47050 |
ZVW35 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-47100 |
ZVW35 |
1 | ||
| 57402-47070 |
ZVW35 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12A00 |
ZVW35 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12A01 |
ZVW35 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-47050 |
ZVW35 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-47050 |
ZVW35 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12321 |
ZVW35 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-47042 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-10866 | ||||
| 90467-06082 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 91553-L1025 | ||||
| 91631-B0614 | ||||
| 91645-C1232 | ||||
| 91671-80616 | ||||
| 91674-K1230 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||

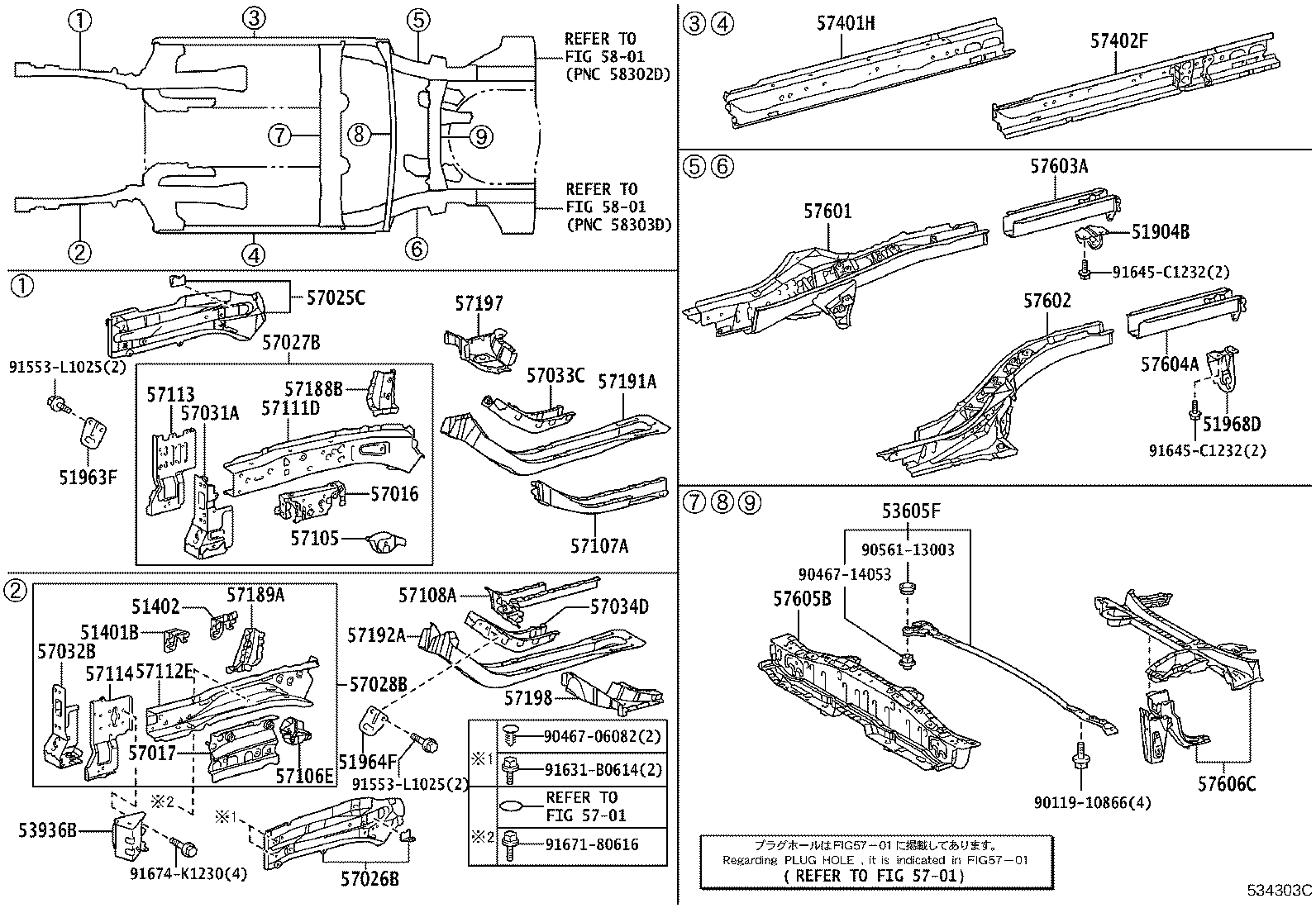

(1405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-12020 |
ZVW35 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-12020 |
ZVW35 |
1 | ||
| 51904B - HANGER SUB-ASSY, EXHAUST PIPE, NO.4 | ||||
| 51904-47010 |
ZVW35 |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-12250 |
ZVW35 |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51964-12040 |
ZVW35 |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-12180 |
ZVW35 |
1 | ||
| 53605F - BRACE SUB-ASSY, REAR SUSPENSION | ||||
| 53605-47021 |
ZVW35 |
1 | ||
| 53605-47020 |
ZVW35 |
1 | ||
| 53936B - PROTECTOR, FRONT END PANEL, LH | ||||
| 53936-76010 |
ZVW35 |
1 | ||
| 53936-47010 |
ZVW35 |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ZVW35 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ZVW35 |
1 | ||
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-12010 |
ZVW35 |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-12020 |
ZVW35 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-12010 |
ZVW35 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-47020 |
ZVW35 |
1 | ||
| 57028-12020 |
ZVW35 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-12010 |
ZVW35 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-12010 |
ZVW35 |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-12010 |
ZVW35 |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-12010 |
ZVW35 |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12160 |
ZVW35 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12150 |
ZVW35 |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-12120 |
ZVW35 |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-12140 |
ZVW35 |
1 | ||
| 57111D - MEMBER, FRONT SIDE, INNER RH | ||||
| 57111-12230 |
ZVW35 |
1 | ||
| 57112E - MEMBER, FRONT SIDE, INNER LH | ||||
| 57112-12190 |
ZVW35 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12220 |
ZVW35 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12190 |
ZVW35 |
1 | ||
| 57018-47010 |
ZVW35 |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-12030 |
ZVW35 |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-12010 |
ZVW35 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-12070 |
ZVW35 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-12060 |
ZVW35 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-12040 |
ZVW35 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57078-47020 |
ZVW35 |
1 | ||
| 57198-12040 |
ZVW35 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-47050 |
ZVW35 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-47100 |
ZVW35 |
1 | ||
| 57402-47070 |
ZVW35 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12A00 |
ZVW35 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12A01 |
ZVW35 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-47050 |
ZVW35 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-47050 |
ZVW35 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12321 |
ZVW35 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-47042 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-10866 | ||||
| 90467-06082 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 91553-L1025 | ||||
| 91631-B0614 | ||||
| 91645-C1232 | ||||
| 91671-80616 | ||||
| 91674-K1230 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||
