ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

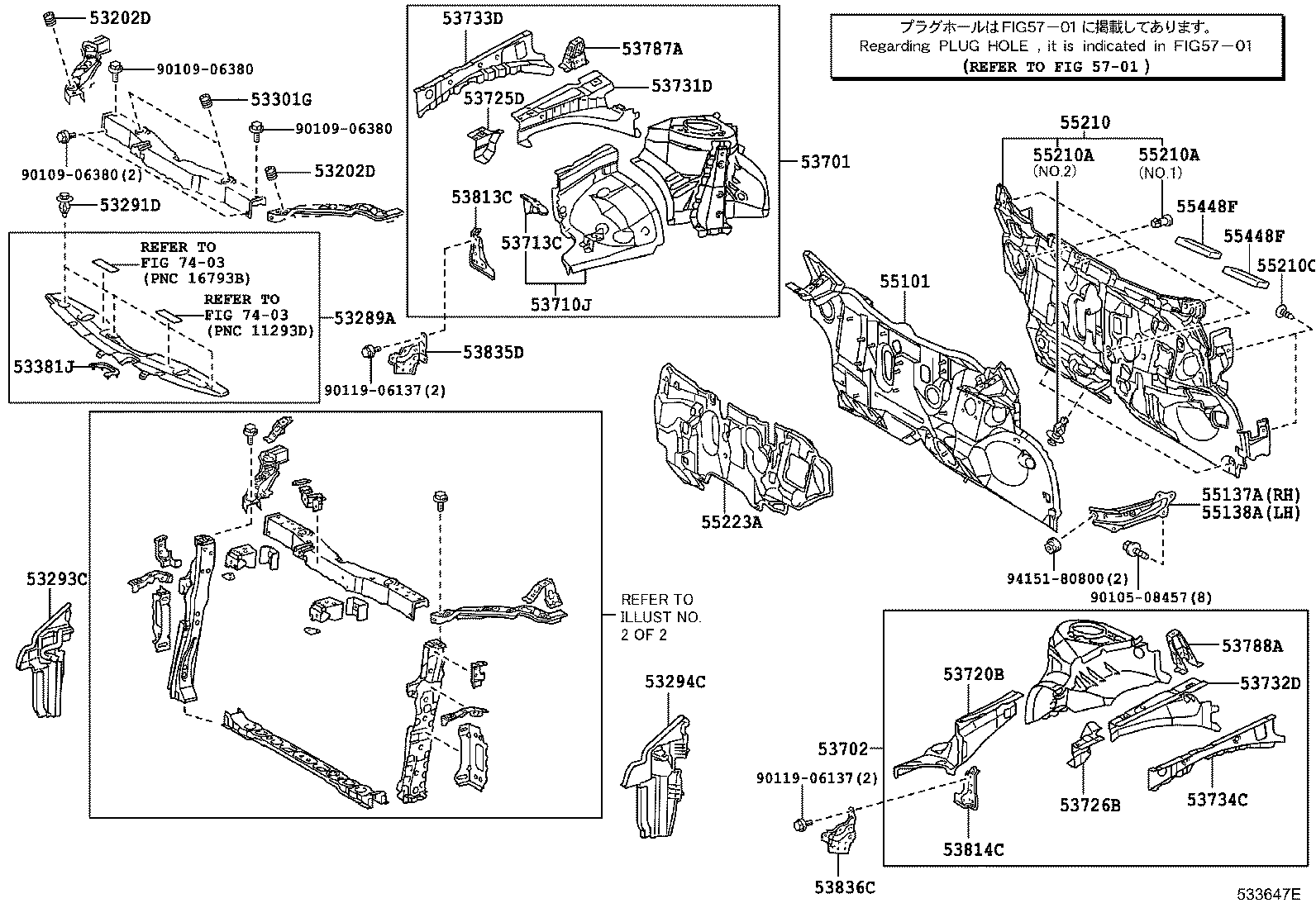

ILLUST NO. 1 OF 2(1201-1409)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-15037 |
ZVW35 |
2 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-15037 |
ZVW35 |
2 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-47032 |
ZVW35 |
1 | ||
| 53289-47033 |
ZVW35 |
1 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-07211 |
ZVW35 |
3 | ||
| 90467-07217 |
ZVW35 |
3 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-47040 |
ZVW35 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-47030 |
ZVW35 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15035 |
ZVW35 |
2 | ||
| 53381J - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-47030 |
ZVW35 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-47050 |
ZVW35 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-47050 |
ZVW35 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-12030 |
ZVW35 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-12160 |
ZVW35 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-12030 |
ZVW35 |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-12040 |
ZVW35 |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-12040 |
ZVW35 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12170 |
ZVW35 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12150 |
ZVW35 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-12070 |
ZVW35 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-12070 |
ZVW35 |
1 | ||
| 53787A - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53707-47010 |
ZVW35 |
1 | ||
| 53788A - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53708-47050 |
ZVW35 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47020 |
ZVW35 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47020 |
ZVW35 |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-47010 |
ZVW35 |
1 | ||
| 53803-47020 |
ZVW35 |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53804-47020 |
ZVW35 |
1 | ||
| 53836-47010 |
ZVW35 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-12B60 |
ZVW35 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-47030 |
ZVW35 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-47050 |
ZVW35 |
1 | ||
| 55138-47060 |
ZVW35 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-47140 |
ZVW35 |
1 | ||
| 55210-47140 |
ZVW35 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
ZVW35 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
ZVW35 NO.2:REFER ILLUST. |
3 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
ZVW35 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
ZVW35 NO.2:REFER ILLUST. |
3 | ||
| 55210C - CLIP | ||||
| 90467-08186C0 |
ZVW35 BLACK |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-47050 |
ZVW35 |
1 | ||
| 55448F - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-47060 |
ZVW35 |
2 | ||
| 55448F - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-47060 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90105-08457 | ||||
| 90109-06380 | ||||
| 90119-06137 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||

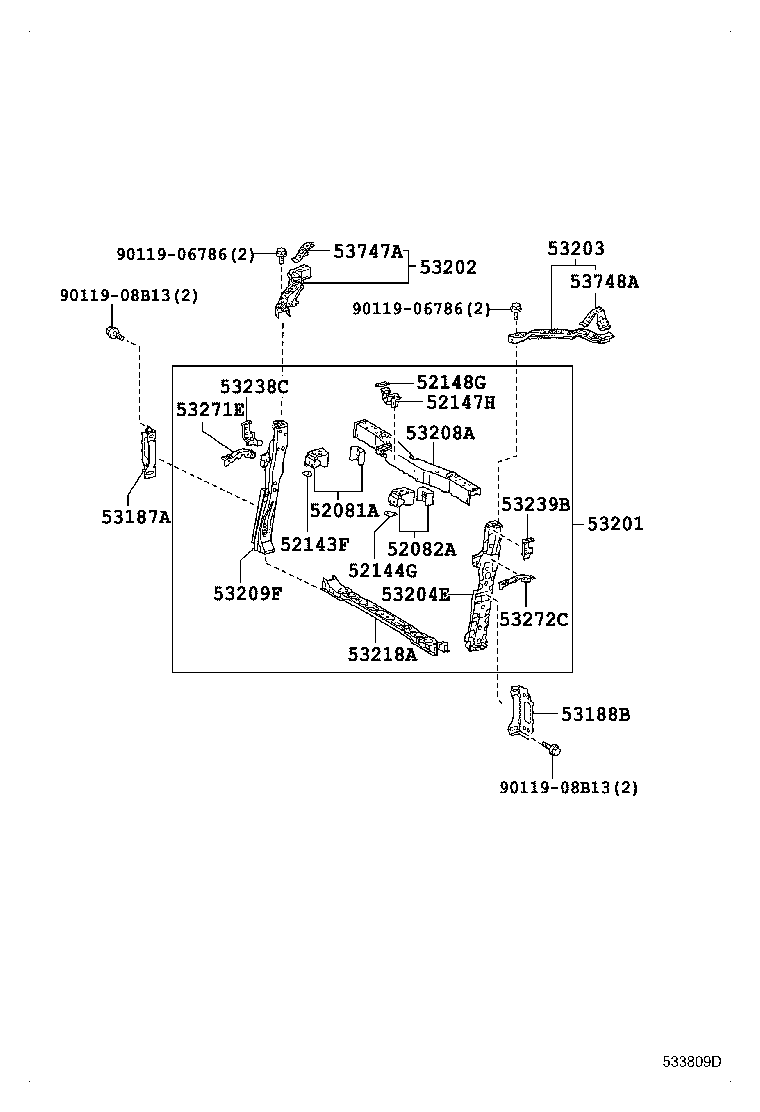

ILLUST NO. 2 OF 2(1201- )
Click highlighted areas on diagram
RADIATOR SUPPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52081A - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-47030 |
ZVW35 |
1 | ||
| 52082A - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52082-47030 |
ZVW35 |
1 | ||
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-47010 |
ZVW35 |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-47010 |
ZVW35 |
1 | ||
| 52147H - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-47010 |
ZVW35 |
1 | ||
| 52148G - BRACKET, FRONT BUMPER MOUNTING, NO.2 | ||||
| 52148-47010 |
ZVW35 |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-12030 |
ZVW35 |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-12030 |
ZVW35 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-47903 |
ZVW35 |
1 | ||
| 53201-47902 |
ZVW35 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-47020 |
ZVW35 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-47020 |
ZVW35 |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-12060 |
ZVW35 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-72010 |
ZVW35 |
1 | ||
| 53208-12560 |
ZVW35 |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-12140 |
ZVW35 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-12901 |
ZVW35 |
1 | ||
| 53238C - BRACKET, HOOD BUMPER MOUNTING, RH | ||||
| 53238-47010 |
ZVW35 |
1 | ||
| 53239B - BRACKET, HOOD BUMPER MOUNTING, LH | ||||
| 53239-47010 |
ZVW35 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-47020 |
ZVW35 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-47020 |
ZVW35 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-47010 |
ZVW35 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90119-08B13 | ||||

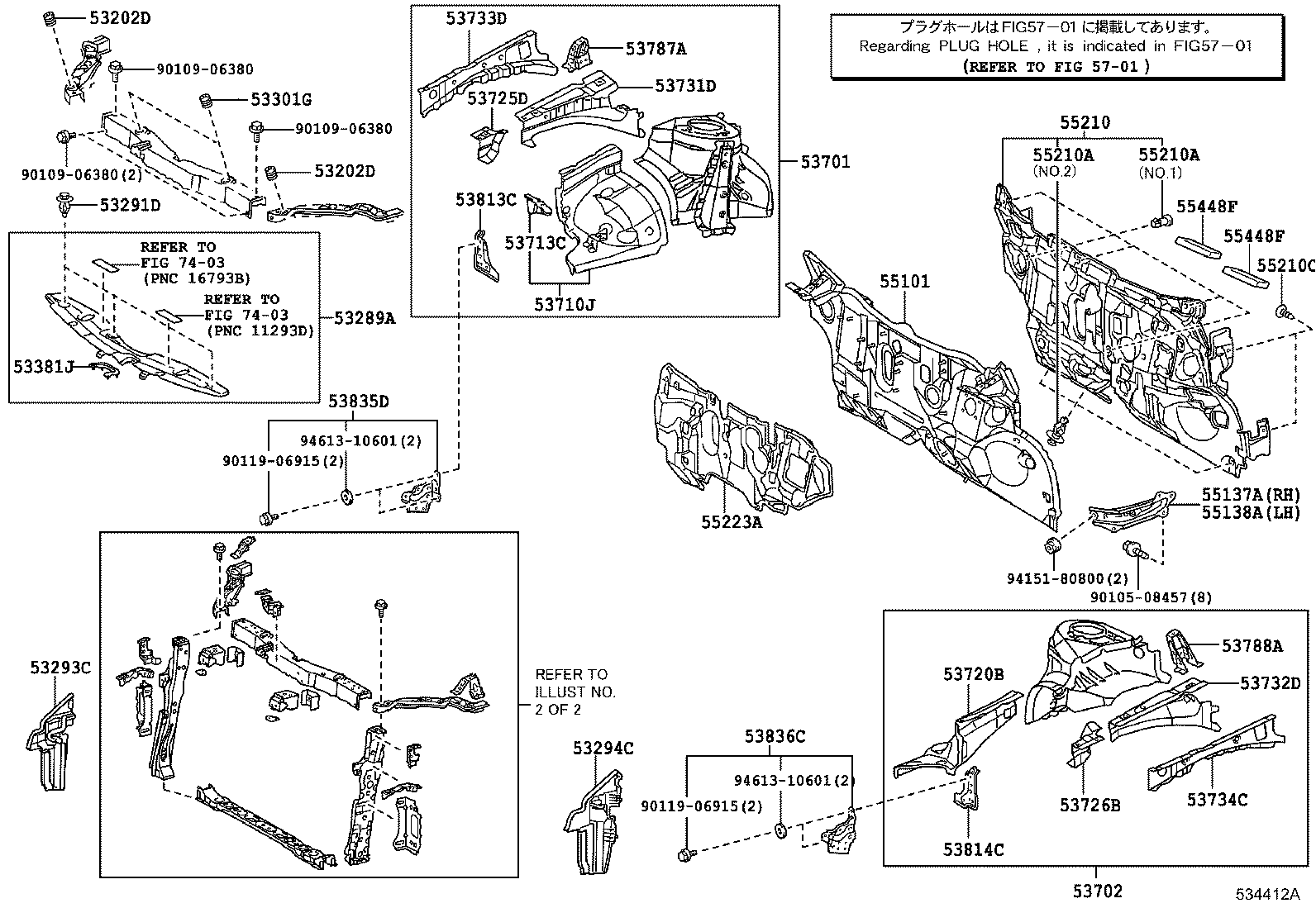

ILLUST NO. 1 OF 2(1409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-15037 |
ZVW35 |
2 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-15037 |
ZVW35 |
2 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-47032 |
ZVW35 |
1 | ||
| 53289-47033 |
ZVW35 |
1 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-07211 |
ZVW35 |
3 | ||
| 90467-07217 |
ZVW35 |
3 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-47040 |
ZVW35 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-47030 |
ZVW35 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15035 |
ZVW35 |
2 | ||
| 53381J - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-47030 |
ZVW35 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-47050 |
ZVW35 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-47050 |
ZVW35 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-12030 |
ZVW35 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-12160 |
ZVW35 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-12030 |
ZVW35 |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-12040 |
ZVW35 |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-12040 |
ZVW35 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12170 |
ZVW35 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12150 |
ZVW35 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-12070 |
ZVW35 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-12070 |
ZVW35 |
1 | ||
| 53787A - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53707-47010 |
ZVW35 |
1 | ||
| 53788A - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53708-47050 |
ZVW35 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47020 |
ZVW35 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47020 |
ZVW35 |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-47010 |
ZVW35 |
1 | ||
| 53803-47020 |
ZVW35 |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53804-47020 |
ZVW35 |
1 | ||
| 53836-47010 |
ZVW35 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-12B60 |
ZVW35 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-47030 |
ZVW35 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-47050 |
ZVW35 |
1 | ||
| 55138-47060 |
ZVW35 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-47140 |
ZVW35 |
1 | ||
| 55210-47140 |
ZVW35 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
ZVW35 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
ZVW35 NO.2:REFER ILLUST. |
3 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
ZVW35 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
ZVW35 NO.2:REFER ILLUST. |
3 | ||
| 55210C - CLIP | ||||
| 90467-08186C0 |
ZVW35 BLACK |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-47050 |
ZVW35 |
1 | ||
| 55448F - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-47060 |
ZVW35 |
2 | ||
| 55448F - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-47060 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90105-08457 | ||||
| 90109-06380 | ||||
| 90119-06915 | ||||
| 94151-80800 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
