ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

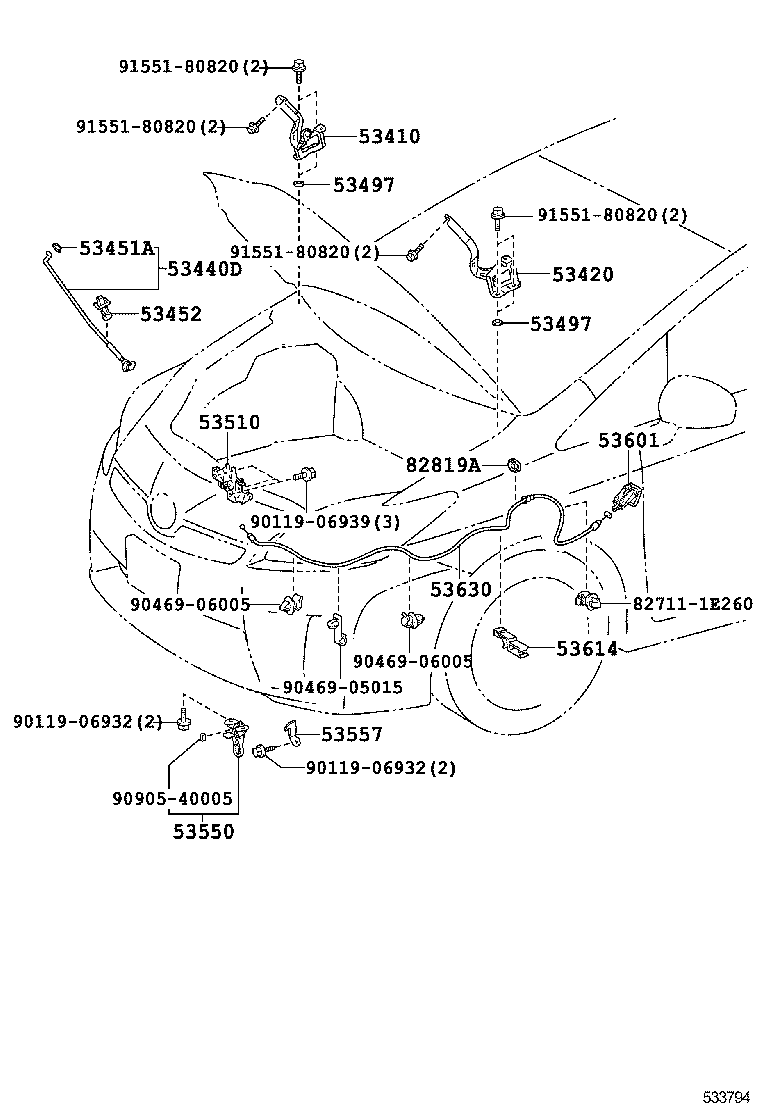

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-47070 |
ZVW35 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-47070 |
ZVW35 |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-47031 |
ZVW35 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15025 |
ZVW35 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-47010 |
ZVW35 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
ZVW35 T=2.0 |
4 | ||
| 53497-42010 |
ZVW35 T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
ZVW35 T=2.0 |
4 | ||
| 53497-42010 |
ZVW35 T=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-47102 |
ZVW35 |
1 | ||
| 53510-47101 |
ZVW35 |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-47011 |
ZVW35 |
1 | ||
| 53557 - CATCH, HOOD AUXILIARY HOOK | ||||
| 53557-47010 |
ZVW35 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010E4 |
ZVW35 GREGE,TRIM4# |
1 | ||
| 53601-52010G1 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 53601-52010C0 |
ZVW35..G,S BLACK,TRIM1#,2# |
1 | ||
| 53601-52010C0 |
ZVW35..L BLACK,TRIM1# |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-47030 |
ZVW35 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-47040 |
ZVW35 |
1 | ||
| 82819A - GROMMET, WIRE | ||||
| 82817-1A810 |
ZVW35 |
2 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90119-06932 | ||||
| 90119-06939 | ||||
| 90469-05015 | ||||
| 90469-06005 | ||||
| 90905-40005 | ||||
| 91551-80820 | ||||
