ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

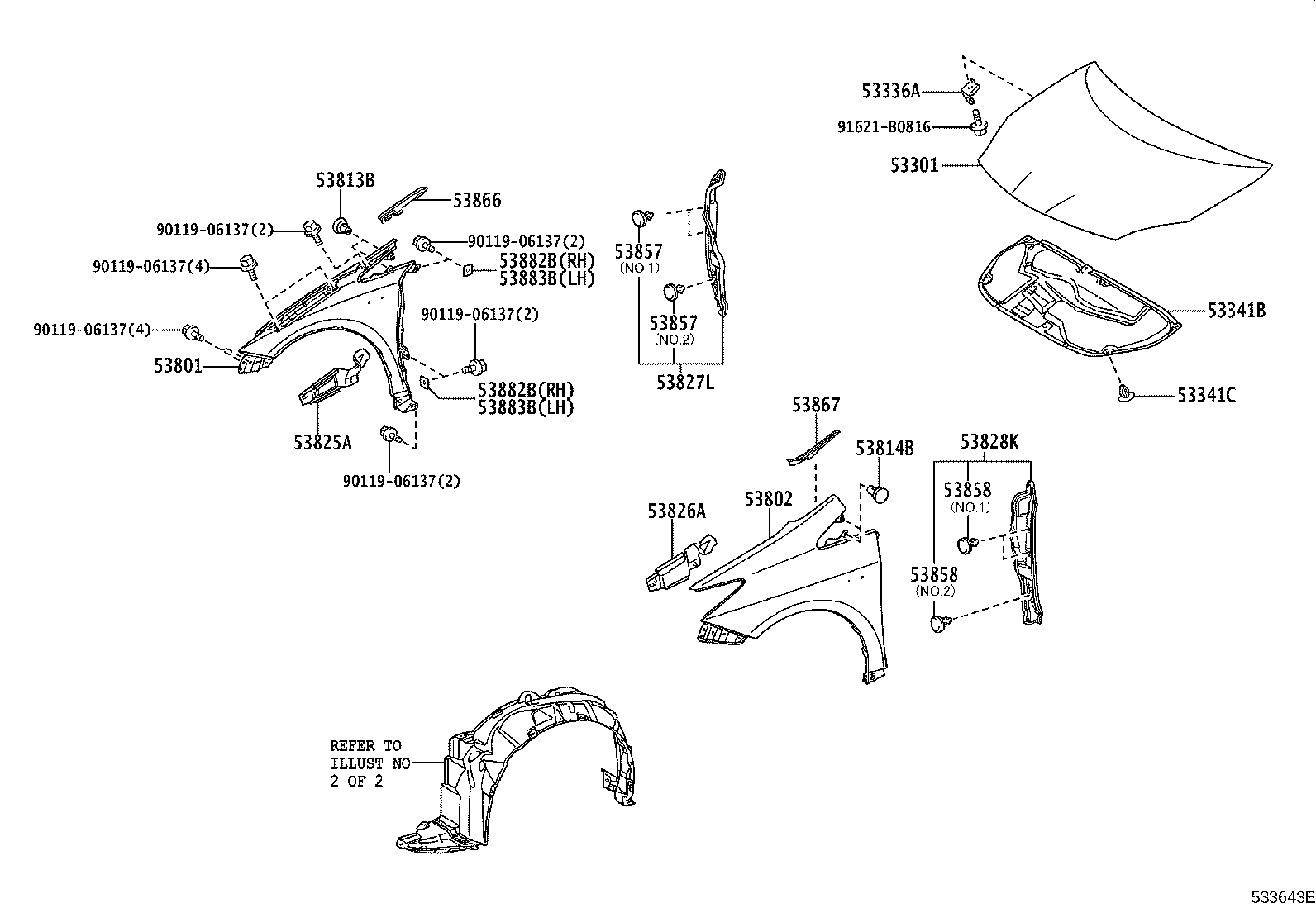

ILLUST NO. 1 OF 2(1201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-47060 |
ZVW35..USA |
1 | ||
| 53301-47050 |
ZVW35..USA |
1 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-47010 |
ZVW35 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-47020 |
ZVW35 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ZVW35 |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-47040 |
ZVW35..USA |
1 | ||
| 53801-47050 |
ZVW35..USA |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-47050 |
ZVW35..USA |
1 | ||
| 53802-47040 |
ZVW35..USA |
1 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47040 |
ZVW35 |
2 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53813-47040 |
ZVW35 |
2 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-47010 |
ZVW35 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-47010 |
ZVW35 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-47030 |
ZVW35 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-47030 |
ZVW35 |
1 | ||
| 53828-47060 |
ZVW35 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ZVW35 NO.2 |
1 | ||
| 53857-47020 |
ZVW35 NO.1 |
2 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ZVW35 NO.2 |
1 | ||
| 53857-47020 |
ZVW35 NO.1 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ZVW35 NO.2 |
1 | ||
| 53857-47020 |
ZVW35 NO.1 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ZVW35 NO.2 |
1 | ||
| 53857-47020 |
ZVW35 NO.1 |
2 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-47020 |
ZVW35 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-47030 |
ZVW35 |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ZVW35 |
2 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ZVW35 |
2 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
ZVW35 |
2 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 91621-B0816 | ||||

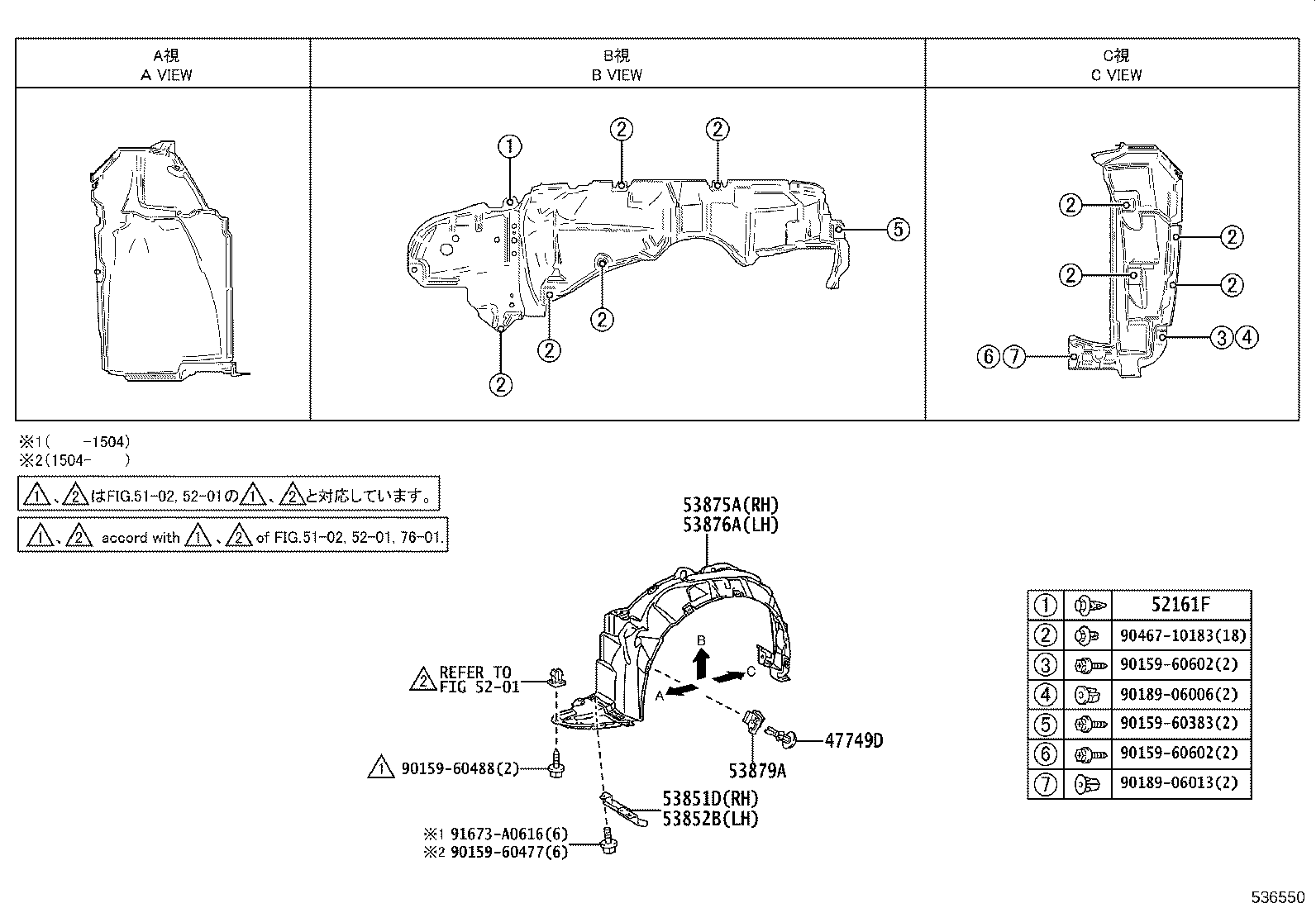

ILLUST NO. 2 OF 2(1201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-58010 |
ZVW35 |
2 | ||
| 52161F - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW35 |
2 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-47040 |
ZVW35 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-47020 |
ZVW35 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-47051 |
ZVW35 |
1 | ||
| 53875-47050 |
ZVW35 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-47081 |
ZVW35 |
1 | ||
| 53876-47050 |
ZVW35 |
1 | ||
| 53876-47080 |
ZVW35 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90159-60477 | ||||
| 90159-60488 | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90467-10183 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 5201 | ||||
