ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

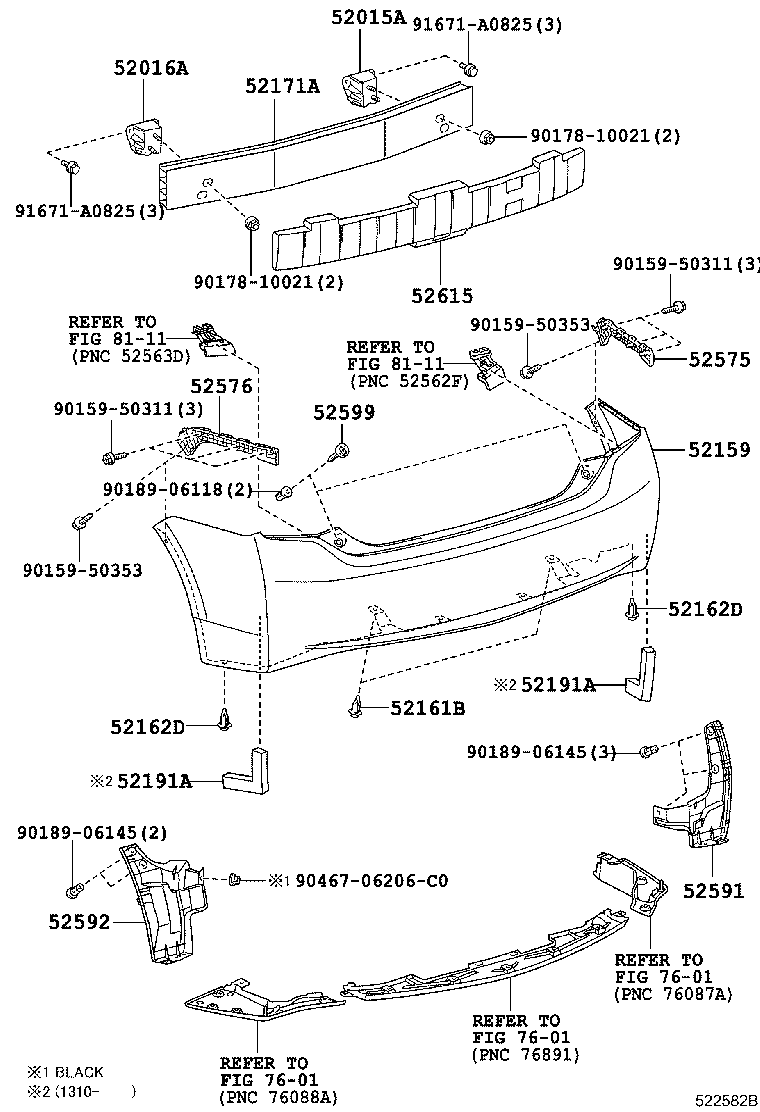

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-47040 |
ZVW35 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-47020 |
ZVW35 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-47905 |
ZVW35 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW35 |
2 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-47010 |
ZVW35..USA |
1 | ||
| 52171-47060 |
ZVW35..USA |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47020 |
ZVW35 |
2 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47020 |
ZVW35 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-47020 |
ZVW35 |
1 | ||
| 52575-47021 |
ZVW35 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-47021 |
ZVW35 |
1 | ||
| 52576-47020 |
ZVW35 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-47021 |
ZVW35 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-47021 |
ZVW35 |
1 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-68030 |
ZVW35 |
2 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-47050 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90178-10021 | ||||
| 90189-06118 | ||||
| 90189-06145 | ||||
| 90467-06206C0 | ||||
| 91671-A0825 | ||||
| Linked diagrams | ||||
| 7601 | ||||
| 8111 | ||||
