ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

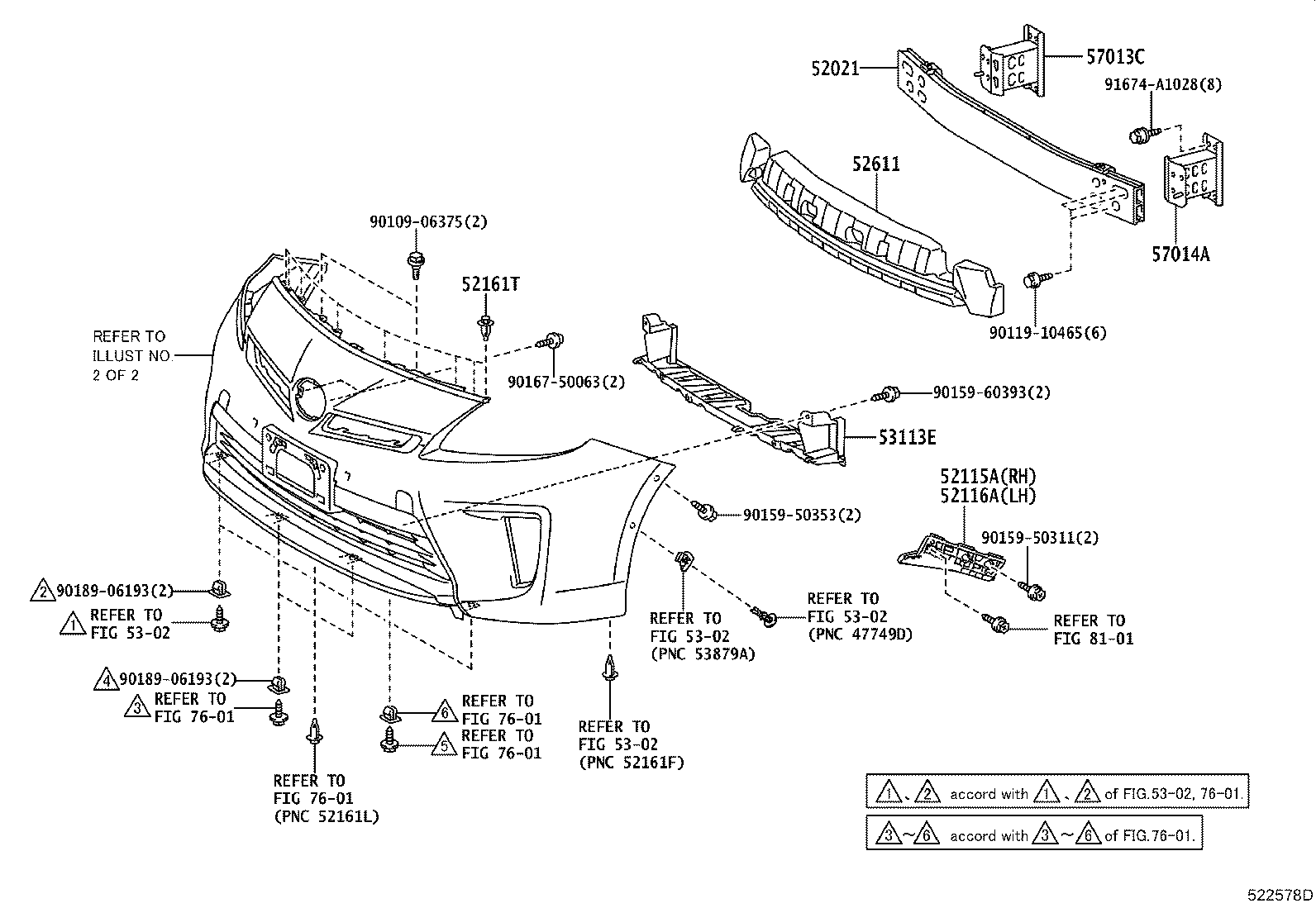

ILLUST NO. 1 OF 2(1201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47012 |
ZVW35..USA |
1 | ||
| 52021-47032 |
ZVW35..USA |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47041 |
ZVW35 |
1 | ||
| 52115-47040 |
ZVW35 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47040 |
ZVW35 |
1 | ||
| 52116-47041 |
ZVW35 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW35 |
8 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47090 |
ZVW35 |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-47040 |
ZVW35 |
1 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-47040 |
ZVW35 |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-47040 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-10465 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90159-60393 | ||||
| 90167-50063 | ||||
| 90189-06193 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7601 | ||||
| 8101 | ||||

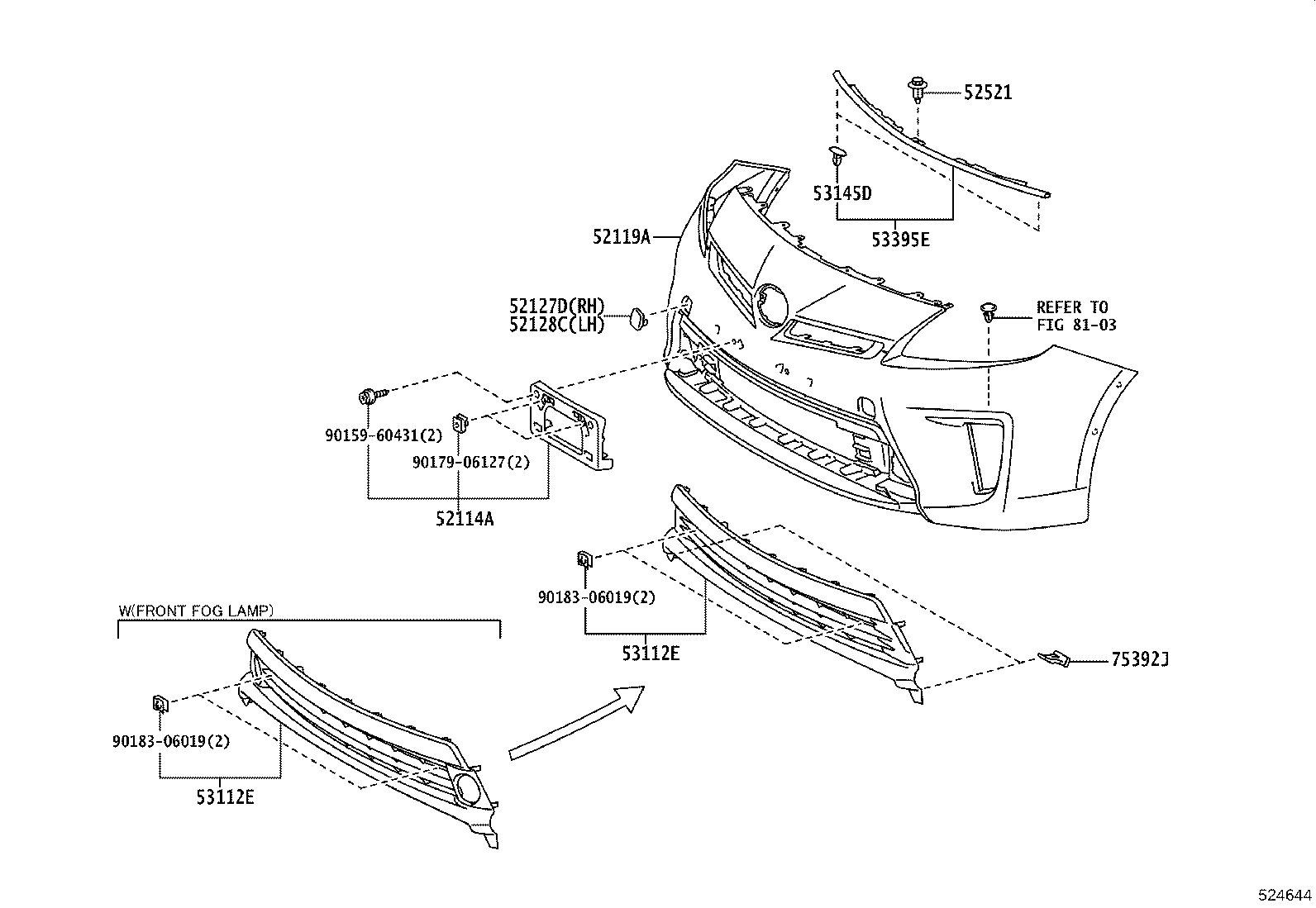

ILLUST NO. 2 OF 2(1201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47130 |
ZVW35 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-47934 |
ZVW35 PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-47903 |
ZVW35 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-47903 |
ZVW35 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 90467-05063C0 |
ZVW35 BLACK |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53102-47080B3 |
ZVW35 SILVER ME.,8W1 |
1 | ||
| 53102-47080B1 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53102-47080B3 |
ZVW35 SILVER ME.,8W1 |
1 | ||
| 53102-47080B1 |
ZVW35 ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1 |
1 | ||
| 53145D - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
ZVW35 |
2 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-47020 |
ZVW35 |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90183-06019 | ||||
| Linked diagrams | ||||
| 8103 | ||||
