ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

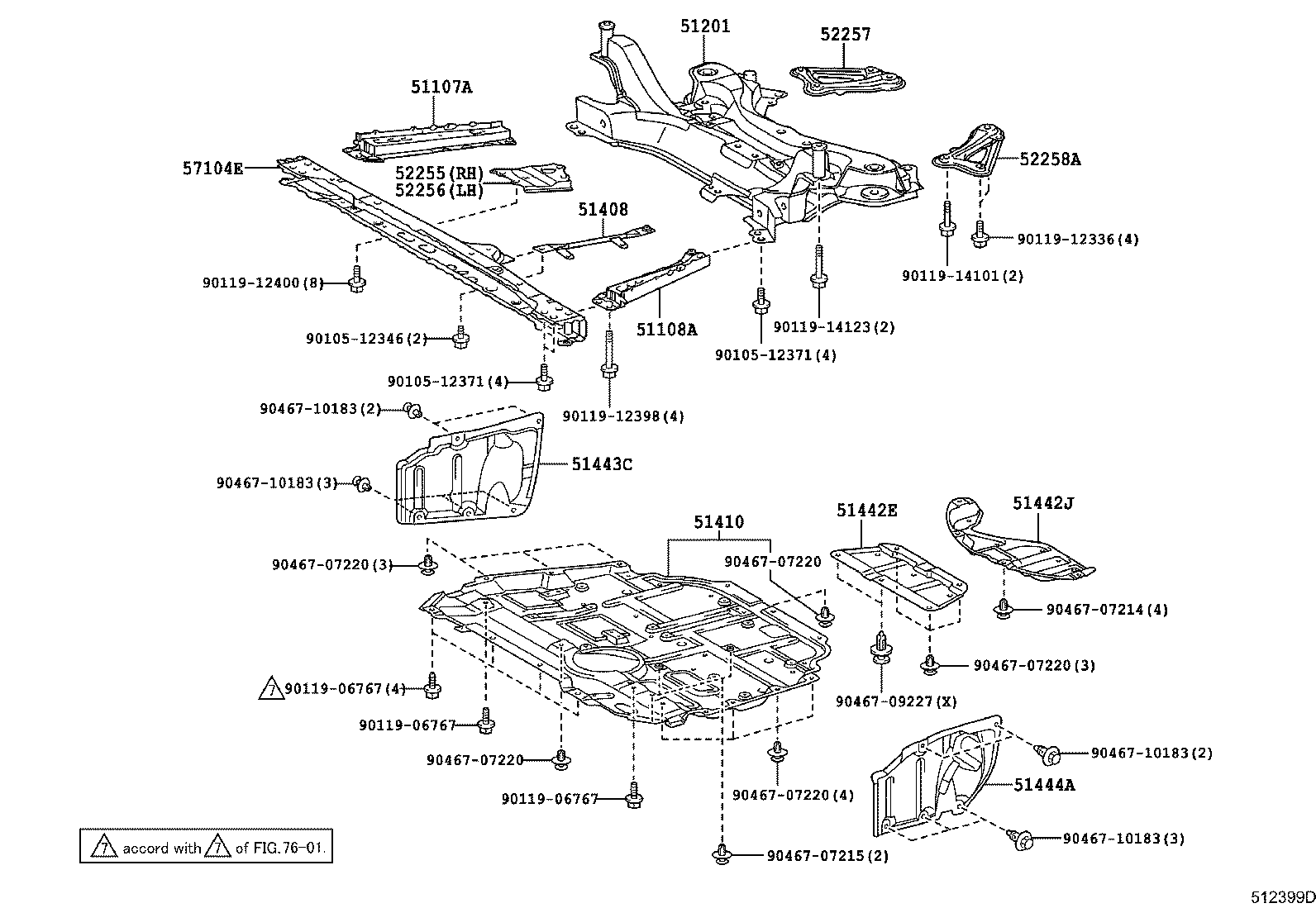

ILLUST NO. 1 OF 2(1201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-12010 |
ZVW35 |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-12010 |
ZVW35 |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12441 |
ZVW35 |
1 | ||
| 51201-12442 |
ZVW35 |
1 | ||
| 51408 - REINFORCEMENT SUB-ASSY, ENGINE SUPPORT BRACKET, FRONT R | ||||
| 51408-47020 |
ZVW35 |
1 | ||
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-12105 |
ZVW35 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12270 |
ZVW35 |
1 | ||
| 51442J - COVER, ENGINE UNDER, NO.3 | ||||
| 51442-12210 |
ZVW35 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-12080 |
ZVW35 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-12050 |
ZVW35 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-12010 |
ZVW35 |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-12010 |
ZVW35 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-21040 |
ZVW35 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-21040 |
ZVW35 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90105-12346 | ||||
| 90105-12371 | ||||
| 90119-06767 | ||||
| 90119-12336 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90467-07214 | ||||
| 90467-07215 | ||||
| 90467-07220 | ||||
| 90467-09227 | ||||
| 90467-10183 | ||||

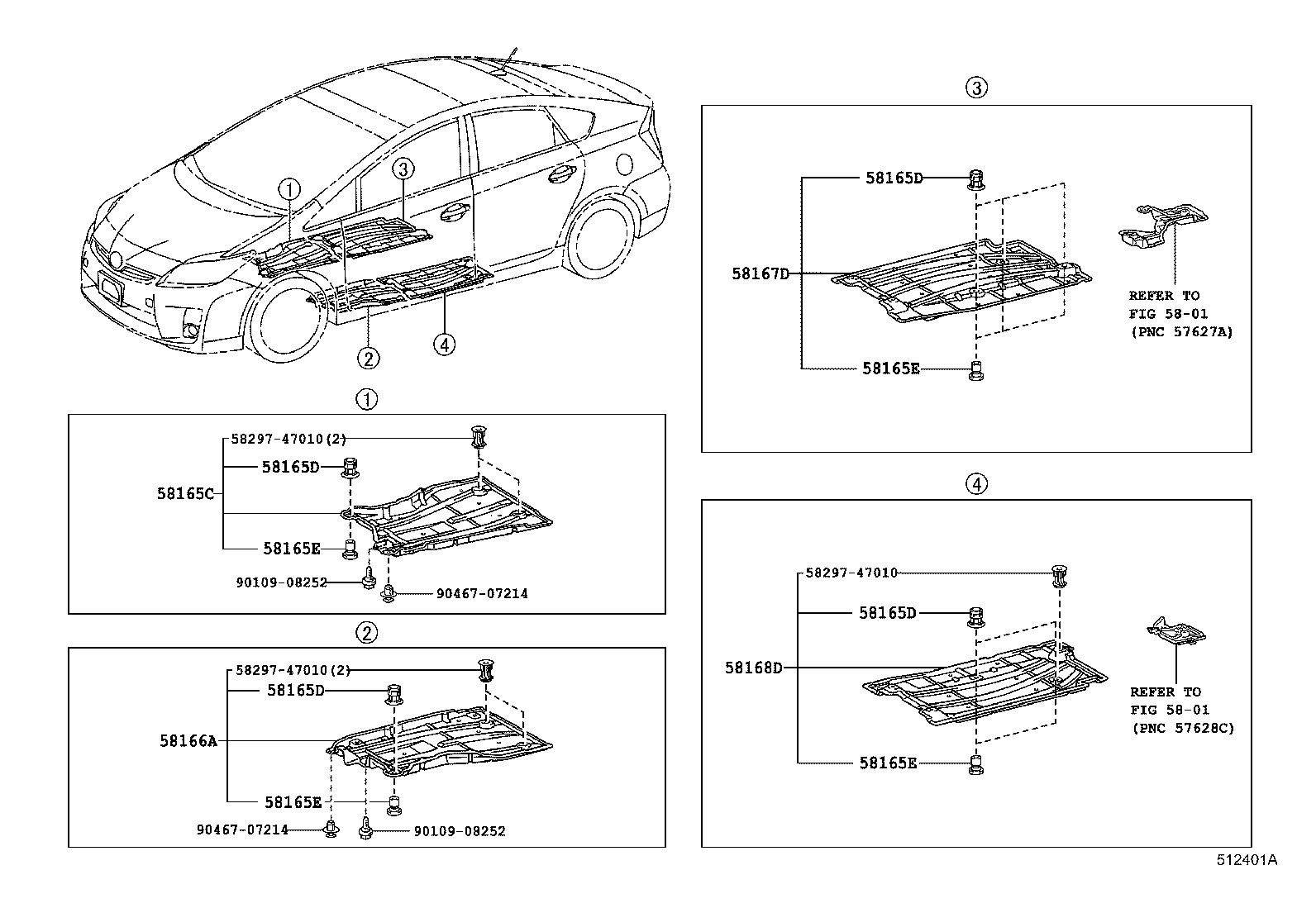

ILLUST NO. 2 OF 2(1201- )
Click highlighted areas on diagram
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-47020 |
ZVW35 |
1 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 90467-17026A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 90467-17026A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 90467-17026A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 90467-17026A0 |
ZVW35 SUPER WHITE 2 |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW35 BLACK |
7 | ||
| 90467-17027C0 |
ZVW35 BLACK |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW35 BLACK |
7 | ||
| 90467-17027C0 |
ZVW35 BLACK |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW35 BLACK |
7 | ||
| 90467-17027C0 |
ZVW35 BLACK |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW35 BLACK |
7 | ||
| 90467-17027C0 |
ZVW35 BLACK |
7 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-47020 |
ZVW35 |
1 | ||
| 58167D - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-47030 |
ZVW35 |
1 | ||
| 58168D - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 58297-47010 | ||||
| 90109-08252 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5801 | ||||
