ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

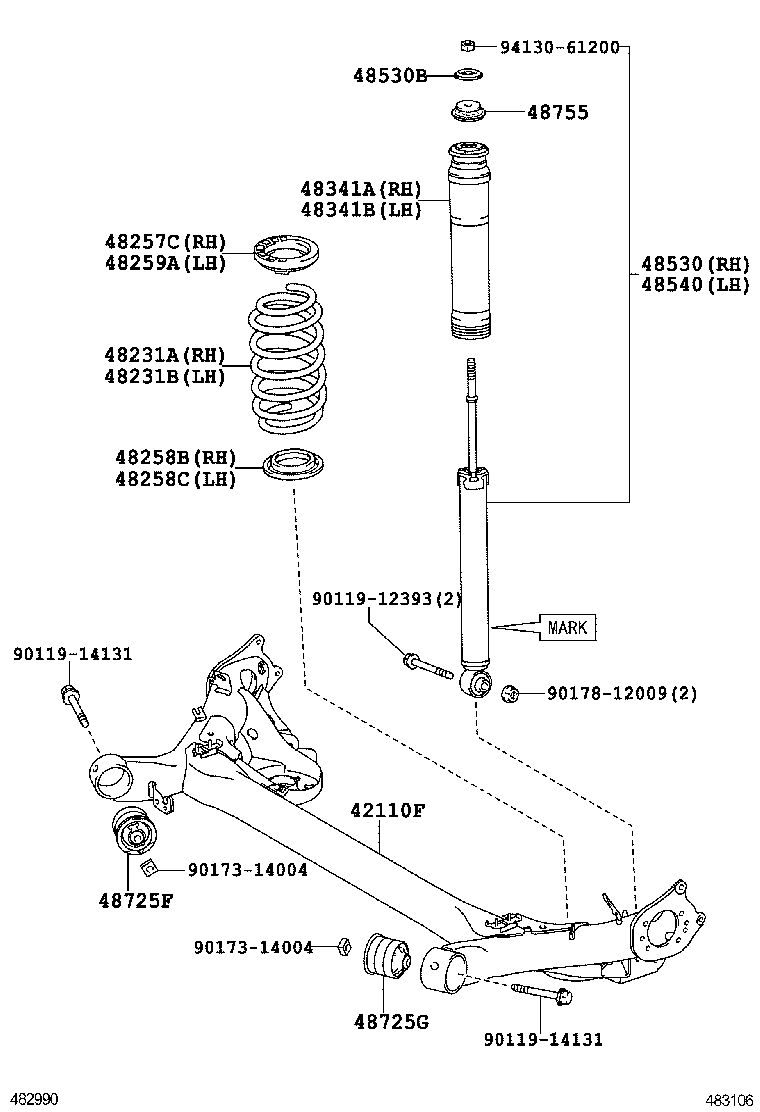

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-12171 |
ZVW35 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-47180 |
ZVW35 |
1 | ||
| 48231-12A61 |
ZVW35 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-47180 |
ZVW35 |
1 | ||
| 48231-12A61 |
ZVW35 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
ZVW35 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-52030 |
ZVW35 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-52030 |
ZVW35 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
ZVW35 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-75010 |
ZVW35 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-75010 |
ZVW35 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80639 |
ZVW35 MARK 48530-47280 |
1 | ||
| 48530-80700 |
ZVW35 MARK 48530-47281 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02159 |
ZVW35 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80700 |
ZVW35 MARK 48530-47281 |
1 | ||
| 48530-80639 |
ZVW35 MARK 48530-47280 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-47050 |
ZVW35 |
1 | ||
| 48725-47030 |
ZVW35 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-47050 |
ZVW35 |
1 | ||
| 48725-47030 |
ZVW35 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-12100 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90119-12393 | ||||
| 90119-14131 | ||||
| 90173-14004 | ||||
| 90178-12009 | ||||
| 94130-61200 | ||||
