ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

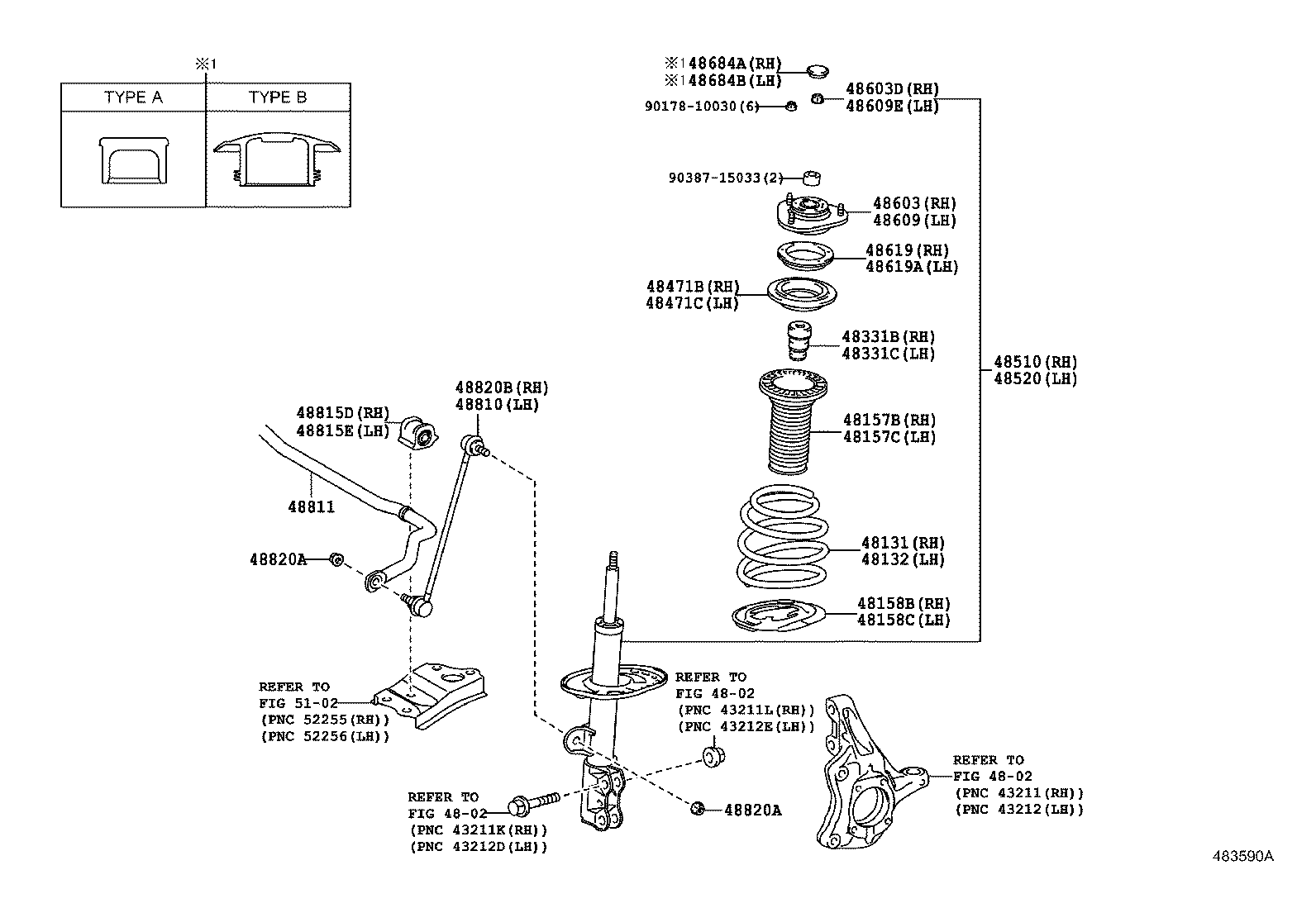

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-47120 |
ZVW35 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-47120 |
ZVW35 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-47020 |
ZVW35 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-47020 |
ZVW35 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-12040 |
ZVW35 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-12040 |
ZVW35 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-21030 |
ZVW35 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-21030 |
ZVW35 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-42010 |
ZVW35 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-42010 |
ZVW35 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80669 |
ZVW35 MARK 48510-47121 |
1 | ||
| 48510-80578 |
ZVW35 MARK 48510-47150 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80298 |
ZVW35 MARK 48520-47150 |
1 | ||
| 48520-80370 |
ZVW35 MARK 48520-47121 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-47040 |
ZVW35 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-14005 |
ZVW35 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-47040 |
ZVW35 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14005 |
ZVW35 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-28010 |
ZVW35 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-28010 |
ZVW35 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-42010 |
ZVW35 TYPE A:REFER ILLUST. |
1 | ||
| 48684-42020 |
ZVW35 TYPE B:REFER ILLUST. |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-42010 |
ZVW35 TYPE A:REFER ILLUST. |
1 | ||
| 48684-42020 |
ZVW35 TYPE B:REFER ILLUST. |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47020 |
ZVW35 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-47060 |
ZVW35 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-47030 |
ZVW35 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-47020 |
ZVW35 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
ZVW35 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
ZVW35 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90178-10030 | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 5102 | ||||
