ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1201- )

Click highlighted areas on diagram

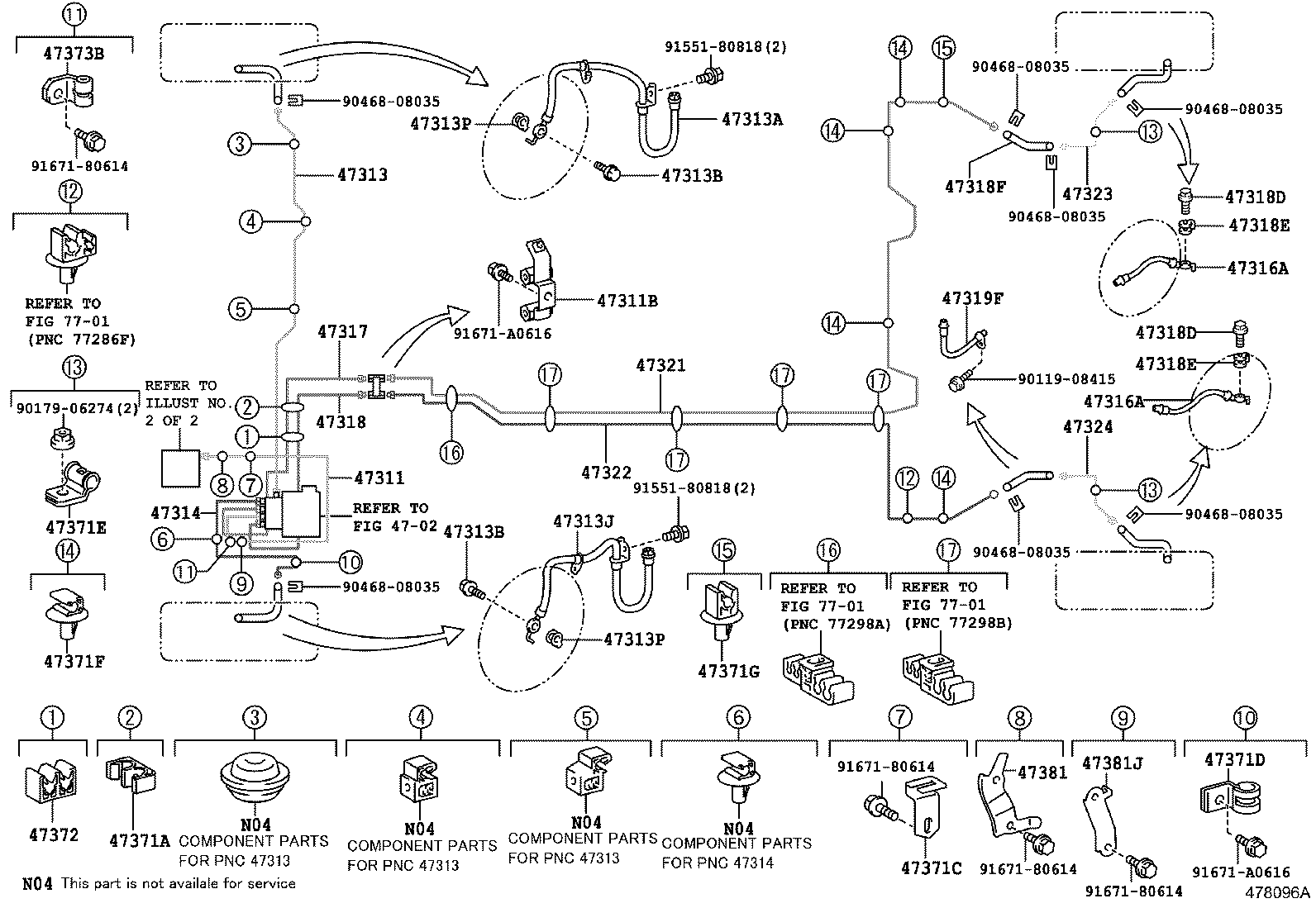

diagram 4702 47311 47311B 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371C 47371D 47371E 47371F 47371G 47372 47373B 47381 47381J 7701 7701 7701 9011908415 9017906274 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9155180818 9155180818 9167180614 9167180614 9167180614 9167180614 91671A0616 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-75020

ZVW35

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10279

ZVW35

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-75020

ZVW35

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F83

ZVW35

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZVW35

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZVW35

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F84

ZVW35

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZVW35

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZVW35

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-75020

ZVW35

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F87

ZVW35

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F87

ZVW35

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-75020

ZVW35

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-75020

ZVW35

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZVW35

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZVW35

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZVW35

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZVW35

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F85

ZVW35

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F86

ZVW35

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-47040

ZVW35

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-47040

ZVW35

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-12230

ZVW35

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12190

ZVW35

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00904

ZVW35

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-47060

ZVW35

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90461-10781

ZVW35

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90461-10837

ZVW35

 2
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ZVW35

 4
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

ZVW35

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01972

ZVW35

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10840

ZVW35

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-75010

ZVW35

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
47381-75020

ZVW35

 1
Common parts
90119-08415
90179-06274
90468-08035
91551-80818
91671-80614
91671-A0616
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1201- )

Click highlighted areas on diagram

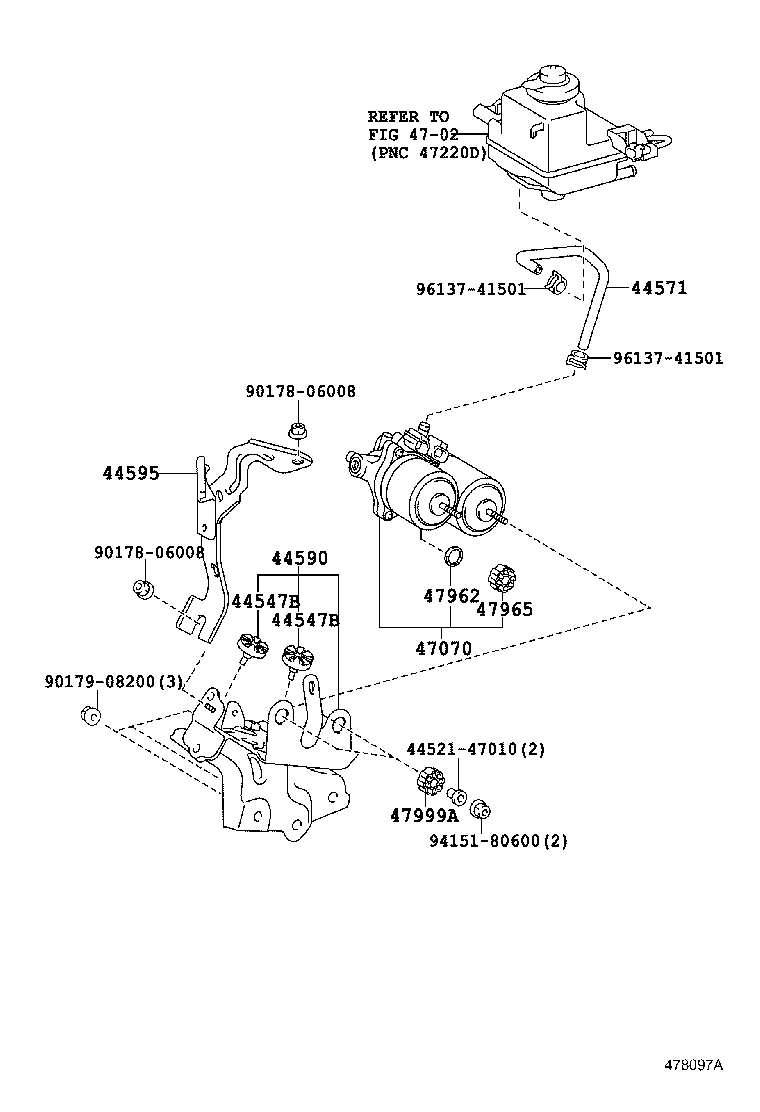

diagram 4452147010 44547B 44547B 44571 44590 44595 4702 47070 47962 47965 47999A 9017806008 9017806008 9017908200 9415180600 9613741501 9613741501
Part # Description Qty Price
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

ZVW35

 2
47131-47080

ZVW35

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

ZVW35

 2
47131-47080

ZVW35

 2
44571 - HOSE, BRAKE ACTUATOR
44571-47050

ZVW35

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-47050

ZVW35

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-47010

ZVW35

 1
47070 - PUMP ASSY, BRAKE BOOSTER
47070-47060

ZVW35

 1
47962 - COLLAR, BRAKE BOOSTER PUMP
47962-60090

ZVW35

 1
47965 - BUSH, BRAKE BOOSTER PUMP
47965-30010

ZVW35

 1
47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET)
47965-30010

ZVW35

 2
Common parts
44521-47010
90178-06008
90179-08200
94151-80600
96137-41501
Linked diagrams
4702
