ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

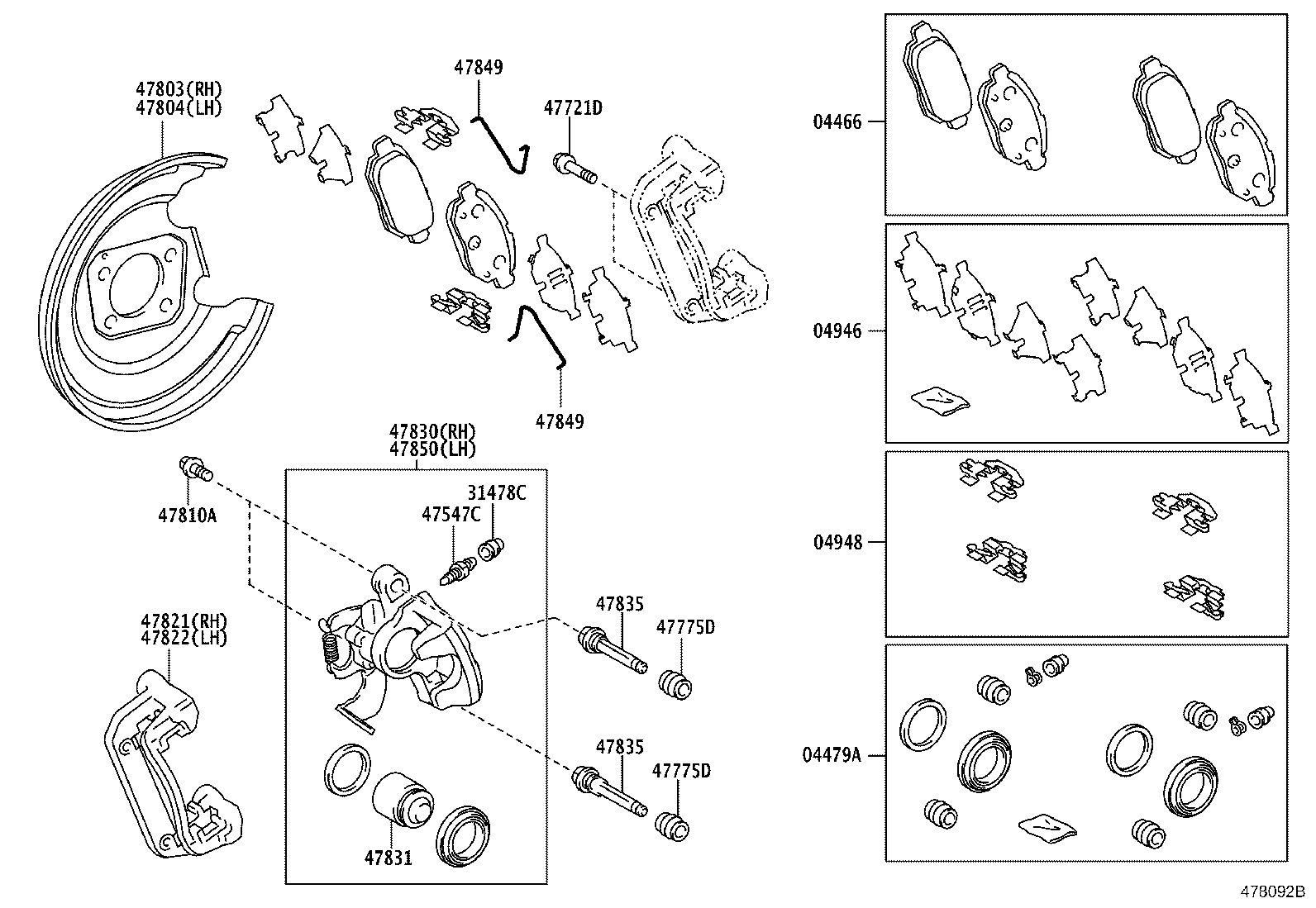

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47721D 47775D 47775D 47803 47804 47810A 47821 47822 47830 47831 47835 47835 47849 47849 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-47100

ZVW35

MARK AK NS254

 1
04466-47061

ZVW35

MARK AK NS254

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-12230

ZVW35

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-47070

ZVW35

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12060

ZVW35

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-52010

ZVW35

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-52050

ZVW35

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-10404

ZVW35

*10-1.25PX24-21.5

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZVW35

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZVW35

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47881-12071

ZVW35

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47882-12071

ZVW35

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90015-AA102

ZVW35

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-12151

ZVW35

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47821-12151

ZVW35

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-12151

ZVW35

 1
47831 - PISTON, REAR DISC BRAKE
47831-52050

ZVW35

 2
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZVW35

 4
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZVW35

 4
47849 - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47843-47040

ZVW35

 4
47849 - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47843-47040

ZVW35

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-12151

ZVW35

 1
