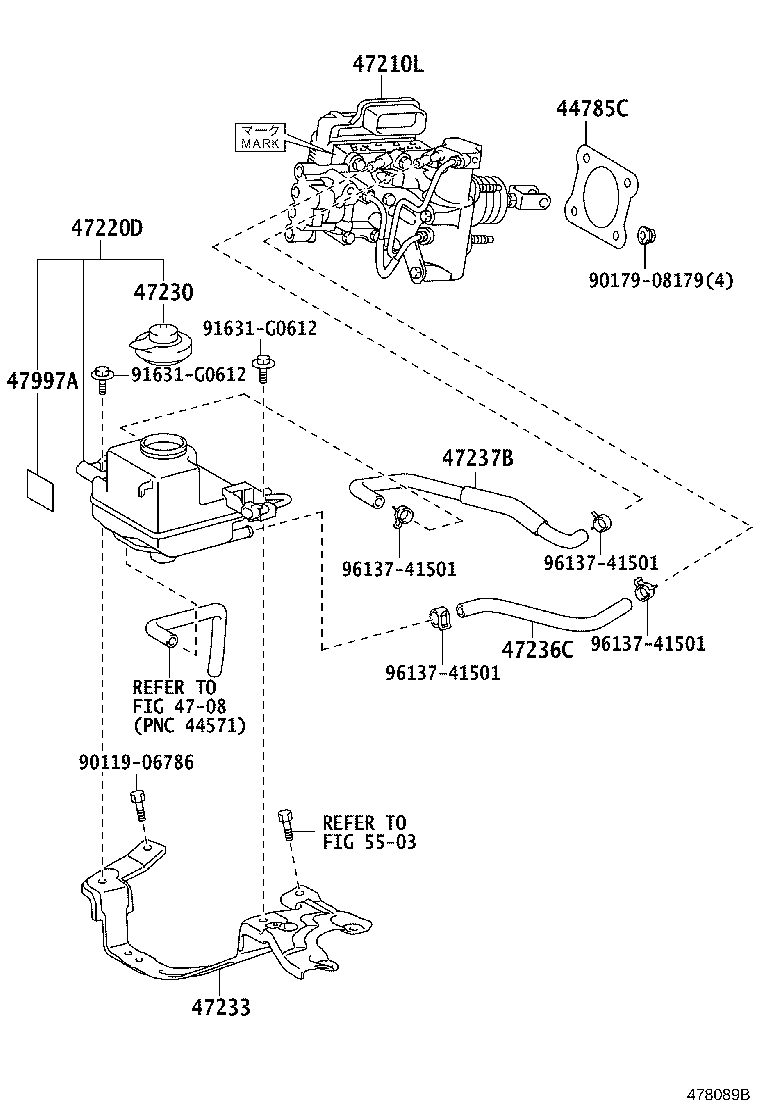

Toyota Prius(plug-in hbd) ZVW35 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
44785C - GASKET, BRAKE BOOSTER
44785-12040	ZVW35	01/2012 - 06/2015	1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-47340	ZVW35 MARK=47210-47500	09/2013 - 06/2015	1
47050-47210	ZVW35 MARK=47210-47380	01/2012 - 09/2013	1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-47080	ZVW35	01/2012 - 06/2015	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140	ZVW35	01/2012 - 06/2015	1
47233 - BRACKET, RESERVOIR
47233-47050	ZVW35	01/2012 - 06/2015	1
47236C - HOSE, RESERVOIR TUBE
47234-47060	ZVW35	01/2012 - 06/2015	1
47237B - HOSE, RESERVIOR TUBE
47235-47060	ZVW35	01/2012 - 06/2015	1
47997A - LABEL, ACCUMULATOR CAUTION, NO.1
47997-76010	ZVW35	01/2012 - 06/2015	1
Common parts
90119-06786
90179-08179
91631-G0612
96137-41501
Linked diagrams
4708
5503

ZVW35L-BHXBBA (2012)
