ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

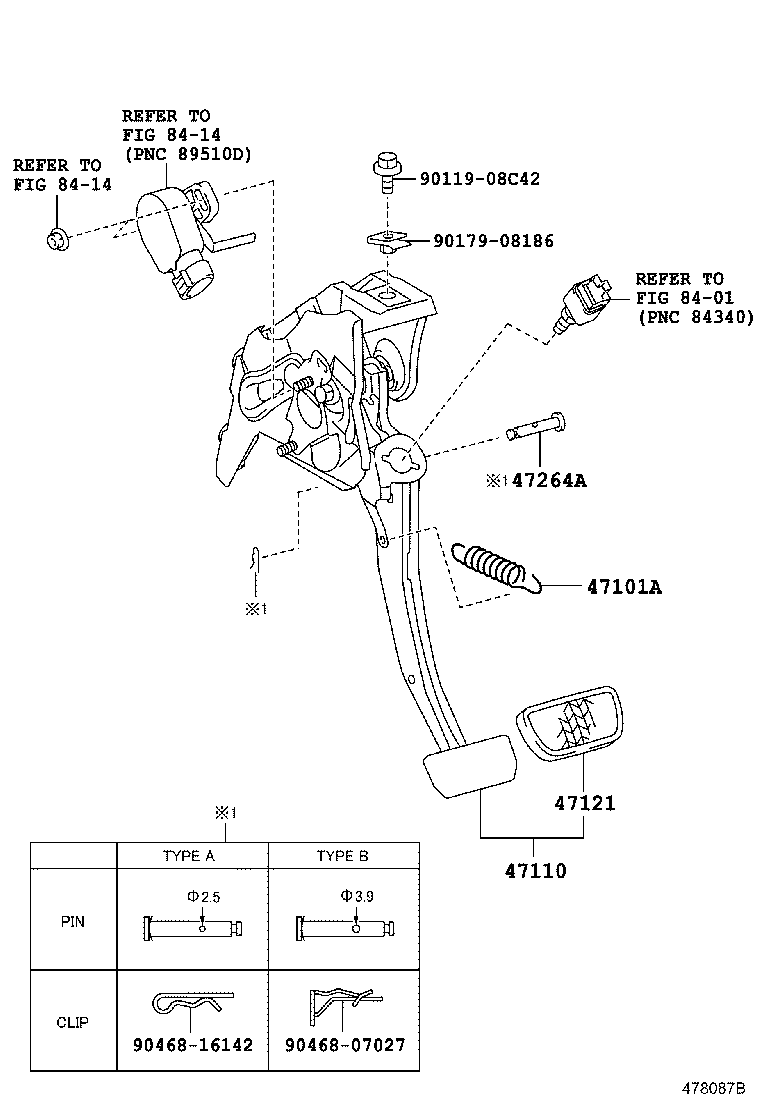

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 8401 8414 8414 9011908C42 9017908186 9046807027 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-14050

ZVW35

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-76060

ZVW35

 1
47121 - PAD, BRAKE PEDAL
47121-50020

ZVW35

 1
47264A - PIN(FOR PUSH ROD)
47148-47020

ZVW35

TYPE A

 1
47148-47030

ZVW35

TYPE B

 1
Common parts
90119-08C42
90179-08186
90468-07027
90468-16142
Linked diagrams
8401
8414
