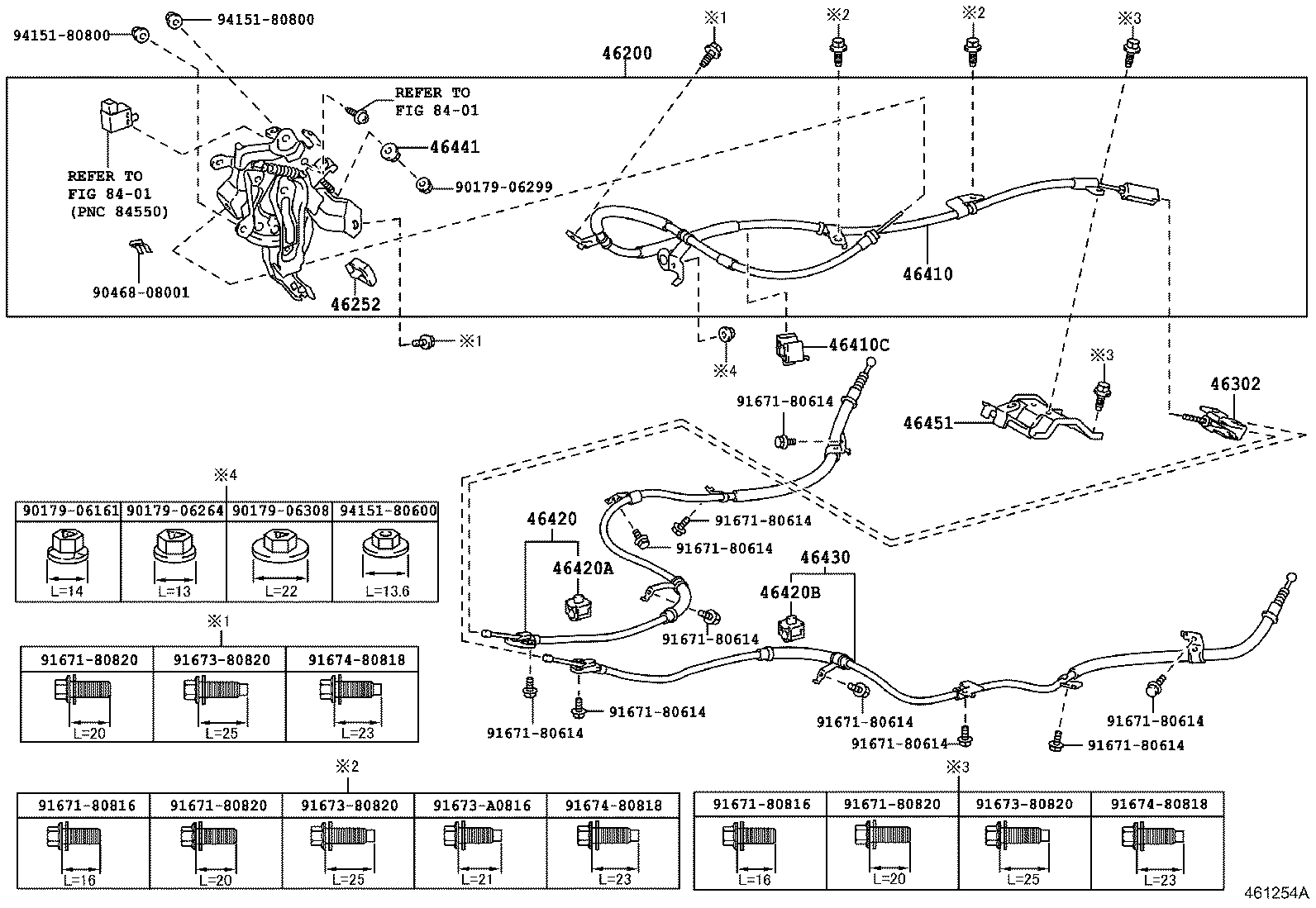

Toyota Prius(plug-in hbd) ZVW35 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-47070	ZVW35	01/2012 - 06/2015	1
46252 - PAD, PARKING PEDAL
46252-47010	ZVW35	01/2012 - 06/2015	1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-47020	ZVW35	01/2012 - 06/2015	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-47070	ZVW35	01/2012 - 06/2015	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-47020	ZVW35	01/2012 - 06/2015	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-47080	ZVW35	01/2012 - 06/2015	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-12030	ZVW35	01/2012 - 06/2015	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-12030	ZVW35	01/2012 - 06/2015	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-47080	ZVW35	01/2012 - 06/2015	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010	ZVW35	01/2012 - 06/2015	1
46451 - BRACKET, CABLE SUPPORT
46451-47010	ZVW35	01/2012 - 06/2015	1
Common parts
90179-06161
90179-06264
90179-06299
90179-06308
90468-08001
91671-80614
91671-80816
91671-80820
91673-80820
91673-A0816
91674-80818
94151-80600
94151-80800
Linked diagrams
8401

ZVW35L-BHXBBA (2012)
