ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

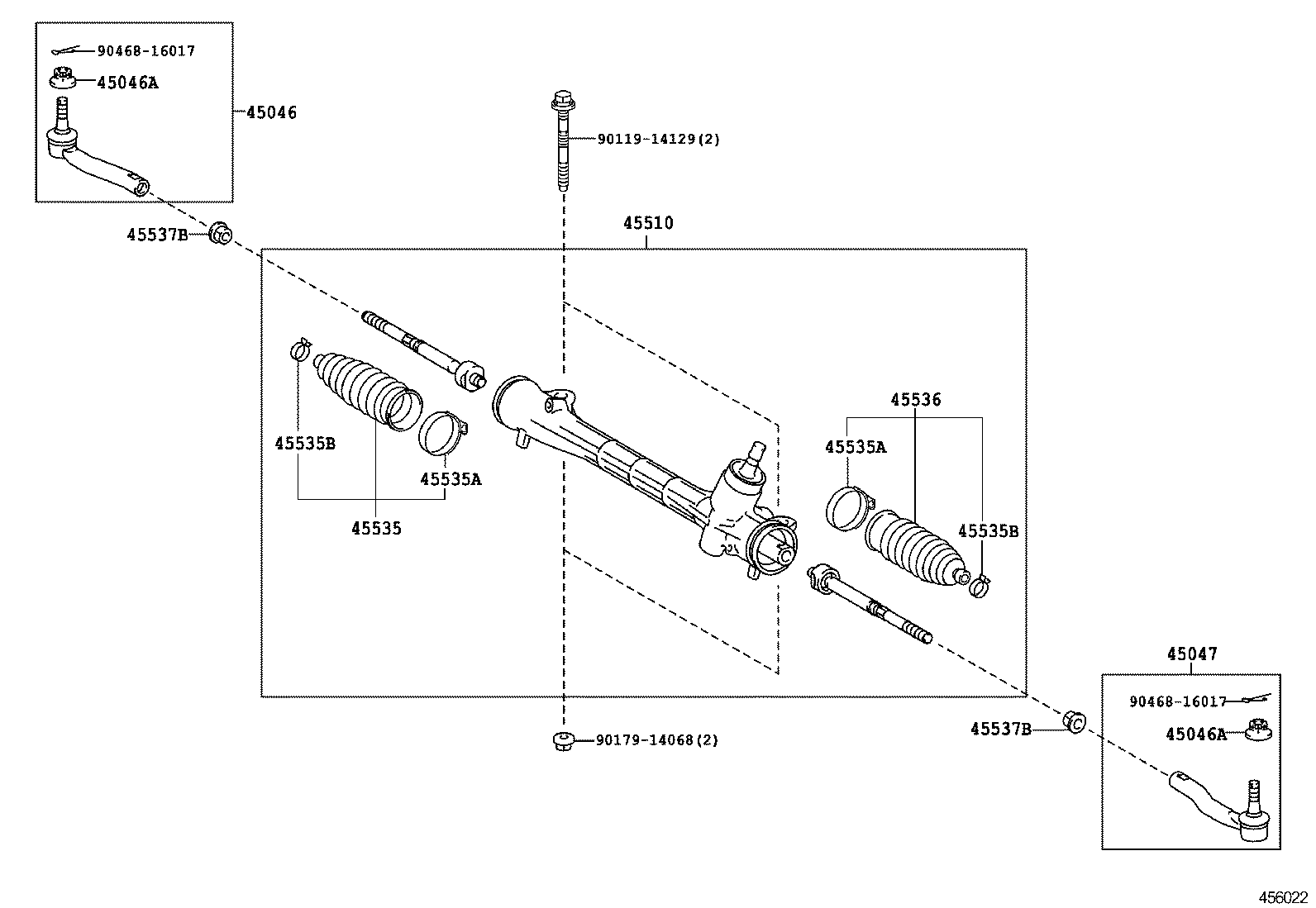

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-49225 |
ZVW35 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12014 |
ZVW35 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12014 |
ZVW35 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-49165 |
ZVW35 |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-47040 |
ZVW35 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-49015 |
ZVW35 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45538-47010 |
ZVW35 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45538-47010 |
ZVW35 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ZVW35 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ZVW35 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-49015 |
ZVW35 |
1 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90179-14019 |
ZVW35 |
2 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90179-14019 |
ZVW35 |
2 | ||
| Common parts | ||||
| 90119-14129 | ||||
| 90179-14068 | ||||
| 90468-16017 | ||||
