ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

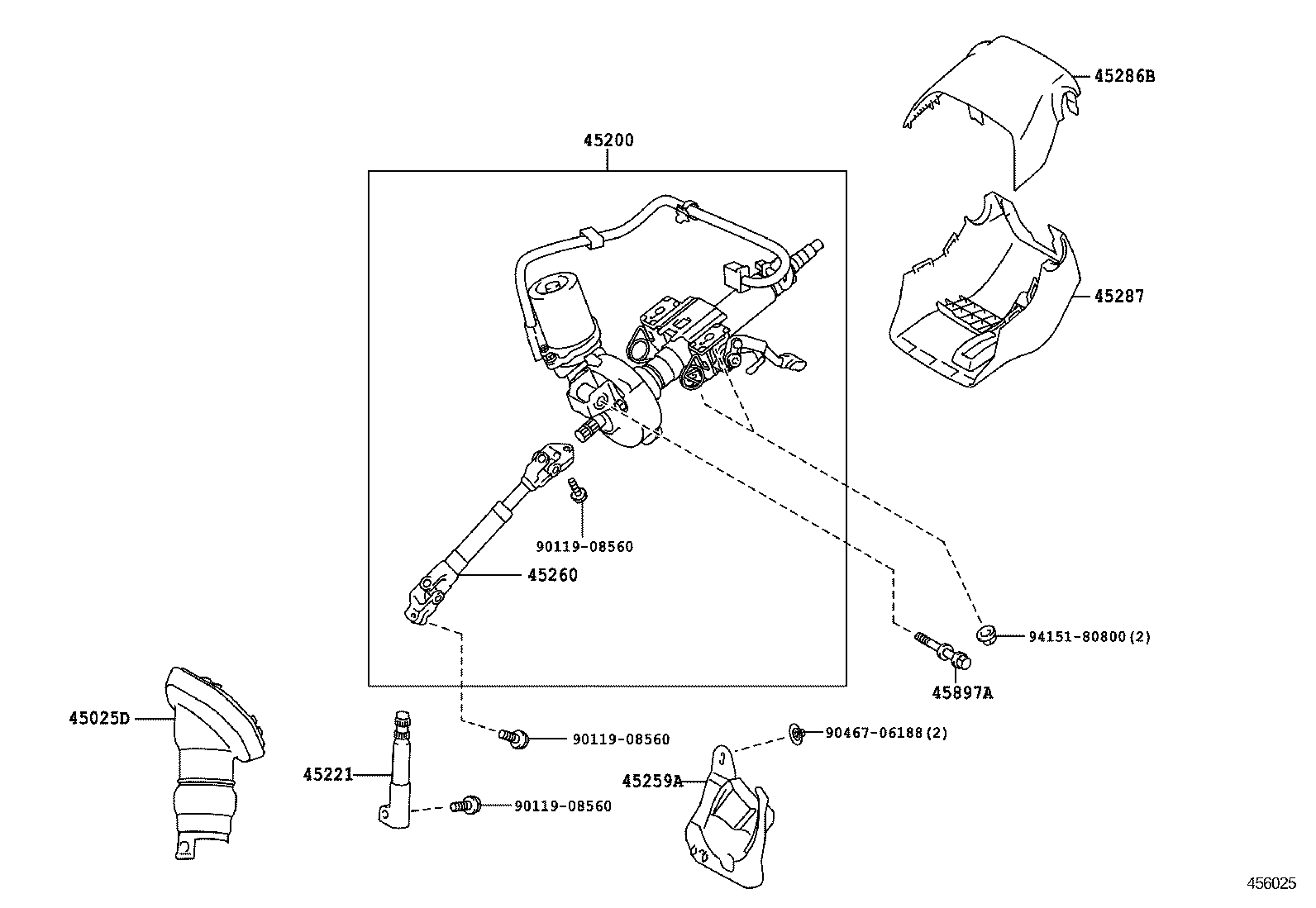

Click highlighted areas on diagram

diagram 45025D 45200 45221 45259A 45260 45286B 45287 45897A 9011908560 9011908560 9011908560 9046706188 9415180800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12300

ZVW35

 1
45200 - POST ASSY, STEERING
45200-47140

ZVW35

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12330

ZVW35

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-47030

ZVW35

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-47060

ZVW35

 1
45260-12710

ZVW35

 1
45286B - COVER, STEERING COLUMN, UPR
45286-47040C0

ZVW35..G,S

BLACK,TRIM1#,2#,4#,6#

 1
45286-47040C0

ZVW35..L

BLACK,TRIM1#,4#,6#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-12590C0

ZVW35..G,S

BLACK,TRIM1#,2#,4#,6#

 1
45287-47090C0

ZVW35..G,S

BLACK,TRIM1#,4#,6#

 1
45287-12590C0

ZVW35..L

BLACK,TRIM1#,4#,6#

 1
45287-47090C0

ZVW35..L

BLACK,TRIM1#

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

ZVW35

 1
90119-10980

ZVW35

 1
Common parts
90119-08560
90467-06188
94151-80800
