ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

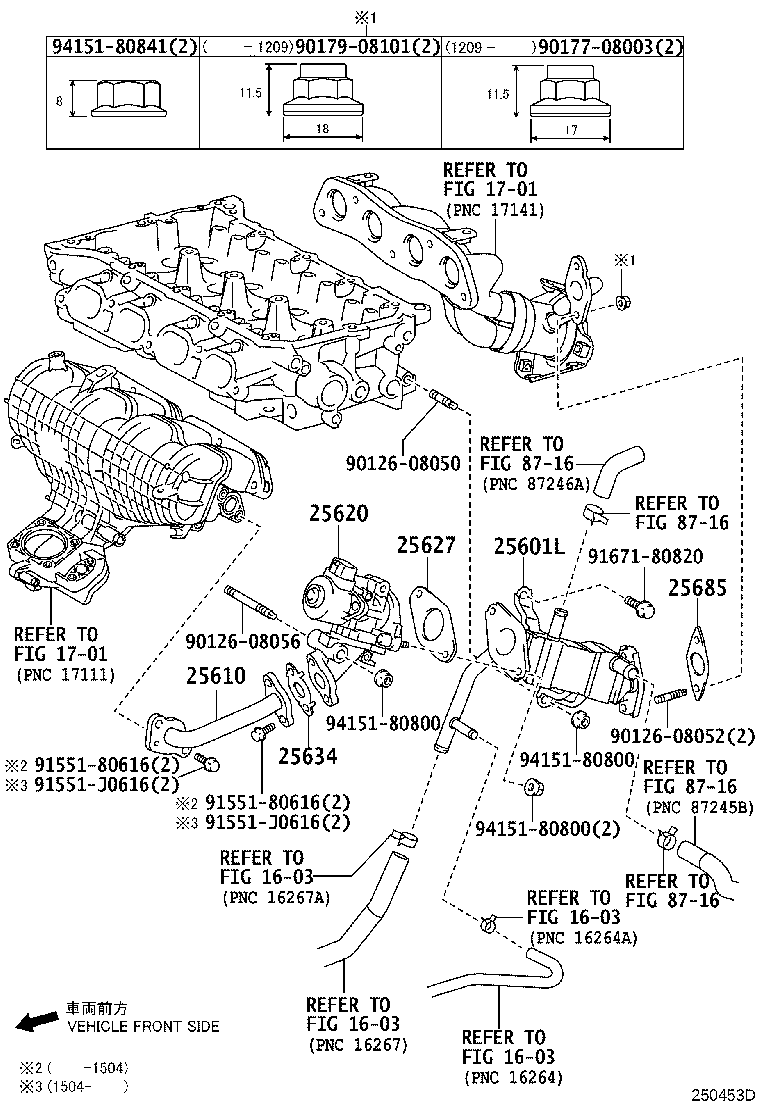

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1701 1701 25601L 25610 25620 25627 25634 25685 8716 8716 8716 8716 9012608050 9012608052 9012608056 9017708003 9017908101 9155180616 9155180616 91551J0616 91551J0616 9167180820 9415180800 9415180800 9415180800 9415180841
Part # Description Qty Price
25601L - PIPE SUB-ASSY, EGR W/COOLER
25601-37010

2ZRFXE..ZVW35

 1
25610 - PIPE ASSY, EGR
25610-37011

2ZRFXE..ZVW35

 1
25610-37012

2ZRFXE..ZVW35

 1
25620 - VALVE ASSY, EGR
25620-37120

2ZRFXE..ZVW35

 1
25620-37110

2ZRFXE..ZVW35

 1
25627 - GASKET, EGR VALVE
25627-37010

2ZRFXE..ZVW35

 1
25634 - GASKET, EGR PIPE
25634-37010

2ZRFXE..ZVW35

 1
25634-37030

2ZRFXE..ZVW35

 1
25685 - GASKET, EGR COOLER, NO.1
25685-37010

2ZRFXE..ZVW35

 1
Common parts
90126-08050
90126-08052
90126-08056
90177-08003
90179-08101
91551-80616
91551-J0616
91671-80820
94151-80800
94151-80841
Linked diagrams
1603
1701
8716
