ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

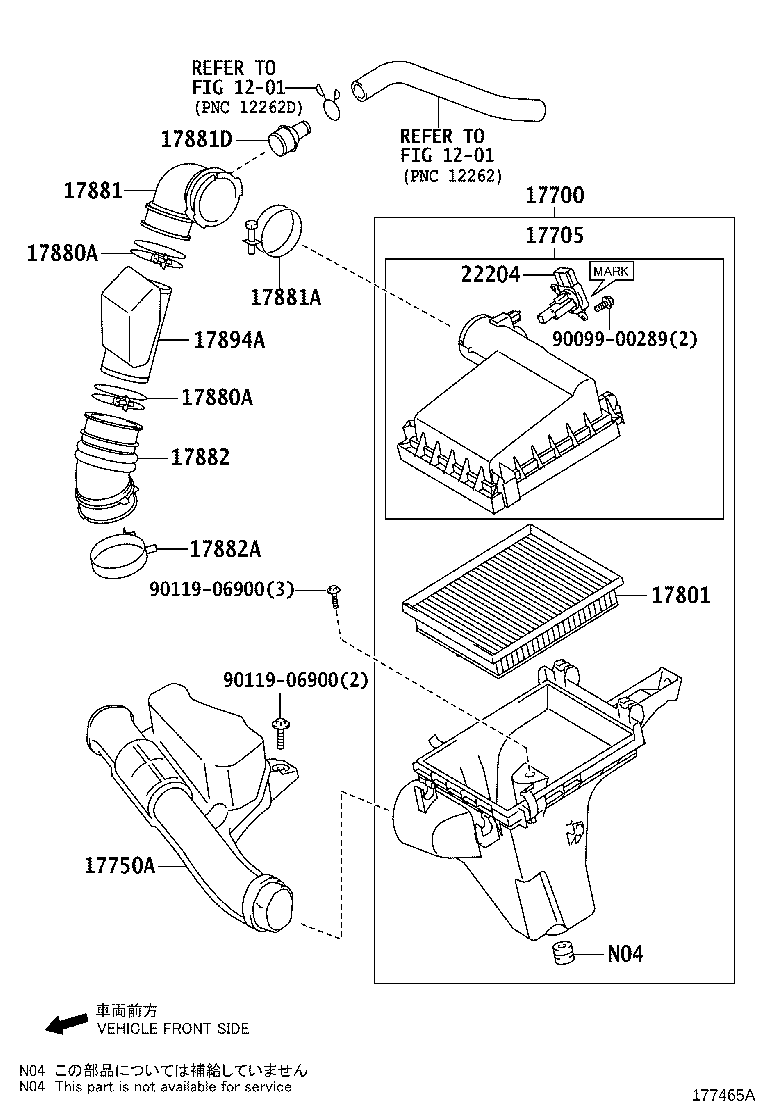

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17750A 17801 17880A 17880A 17881 17881A 17881D 17882 17882A 17894A 22204 9009900289 9011906900 9011906900
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-37261

2ZRFXE..ZVW35

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37131

2ZRFXE..ZVW35

 1
17750A - INLET ASSY, AIR CLEANER
17750-37060

2ZRFXE..ZVW35

 1
17750-37070

2ZRFXE..ZVW35

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-37021

2ZRFXE..ZVW35

 1
17880A - CLAMP, HOSE
96111-10750

2ZRFXE..ZVW35

 2
17880A - CLAMP, HOSE
96111-10750

2ZRFXE..ZVW35

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-37120

2ZRFXE..ZVW35

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2ZRFXE..ZVW35

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

2ZRFXE..ZVW35

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-37040

2ZRFXE..ZVW35

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002

2ZRFXE..ZVW35

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-37010

2ZRFXE..ZVW35

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

2ZRFXE..ZVW35

MARK 22204-28010

 1
22204-0V020

2ZRFXE..ZVW35

MARK 22204-0V020

 1
22204-0T040

2ZRFXE..ZVW35

MARK 22204-0T040

 1
22204-0V010

2ZRFXE..ZVW35

MARK 22204-0V010

 1
Common parts
90099-00289
90119-06900
Linked diagrams
1201
