ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

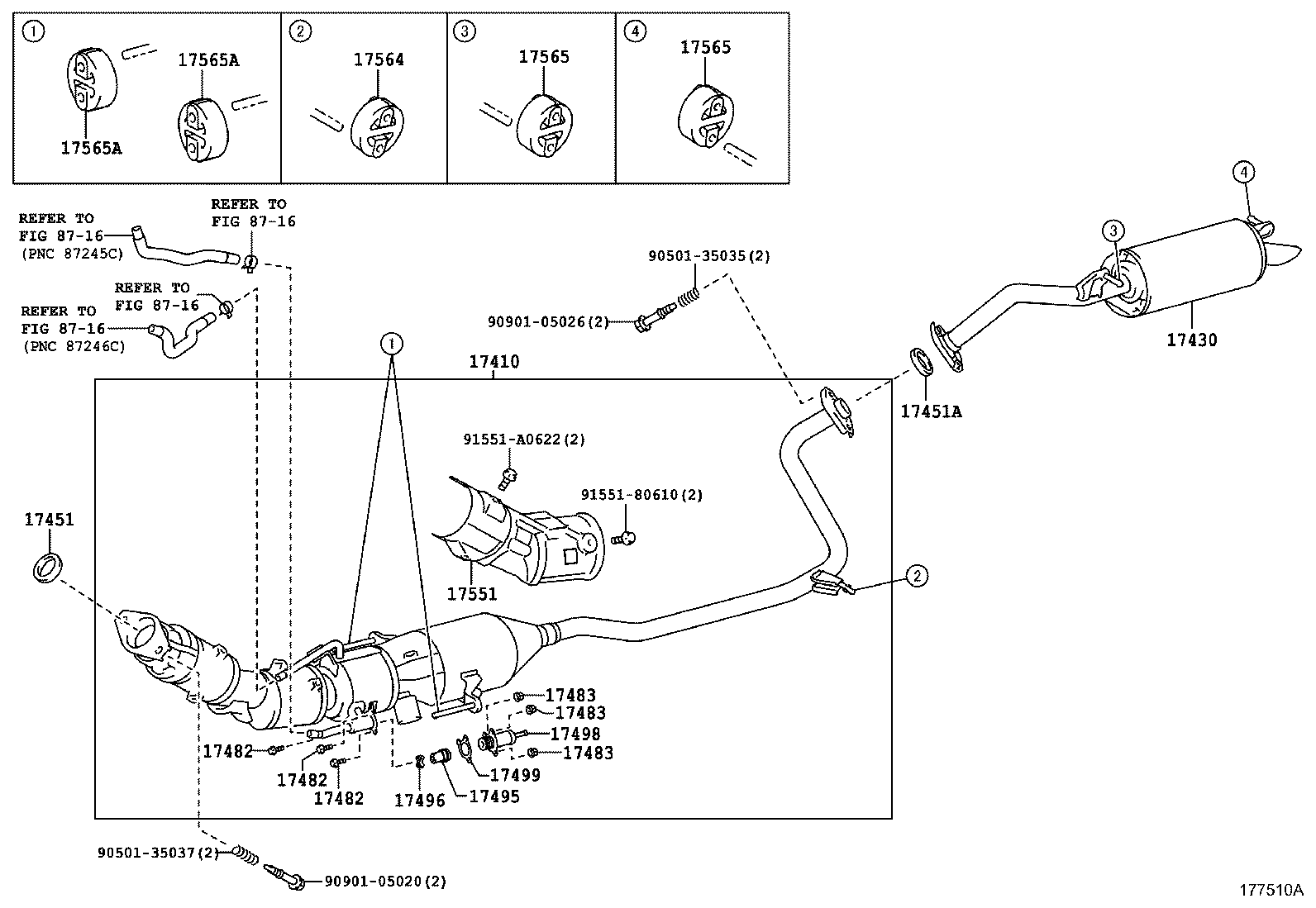

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17482 17482 17482 17483 17483 17483 17495 17496 17498 17499 17551 17564 17565 17565 17565A 17565A 8716 8716 8716 8716 9050135035 9050135037 9090105020 9090105026 9155180610 91551A0622
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37330

2ZRFXE..ZVW35

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37300

2ZRFXE..ZVW35

 1
17451 - GASKET, EXHAUST PIPE
17451-28040

2ZRFXE..ZVW35

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

2ZRFXE..ZVW35

 1
17482 - BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR
17482-47010

2ZRFXE..ZVW35

 3
17482 - BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR
17482-47010

2ZRFXE..ZVW35

 3
17482 - BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR
17482-47010

2ZRFXE..ZVW35

 3
17483 - NUT, EXHAUST PIPE GAS CONTROL ACTUATOR
17483-47010

2ZRFXE..ZVW35

 3
17483 - NUT, EXHAUST PIPE GAS CONTROL ACTUATOR
17483-47010

2ZRFXE..ZVW35

 3
17483 - NUT, EXHAUST PIPE GAS CONTROL ACTUATOR
17483-47010

2ZRFXE..ZVW35

 3
17495 - ACTUATOR, EXHAUST PIPE GAS CONTROL
17495-47010

2ZRFXE..ZVW35

 1
17496 - STOPPER, EXHAUST PIPE GAS CONTROL ACTUATOR
17496-47010

2ZRFXE..ZVW35

 1
17498 - CASE, EXHAUST PIPE GAS CONTROL ACTUATOR
17498-47010

2ZRFXE..ZVW35

 1
17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17499-47010

2ZRFXE..ZVW35

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-37030

2ZRFXE..ZVW35

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-22030

2ZRFXE..ZVW35

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW35

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ZRFXE..ZVW35

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2ZRFXE..ZVW35

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2ZRFXE..ZVW35

 2
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91551-80610
91551-A0622
Linked diagrams
8716
