ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

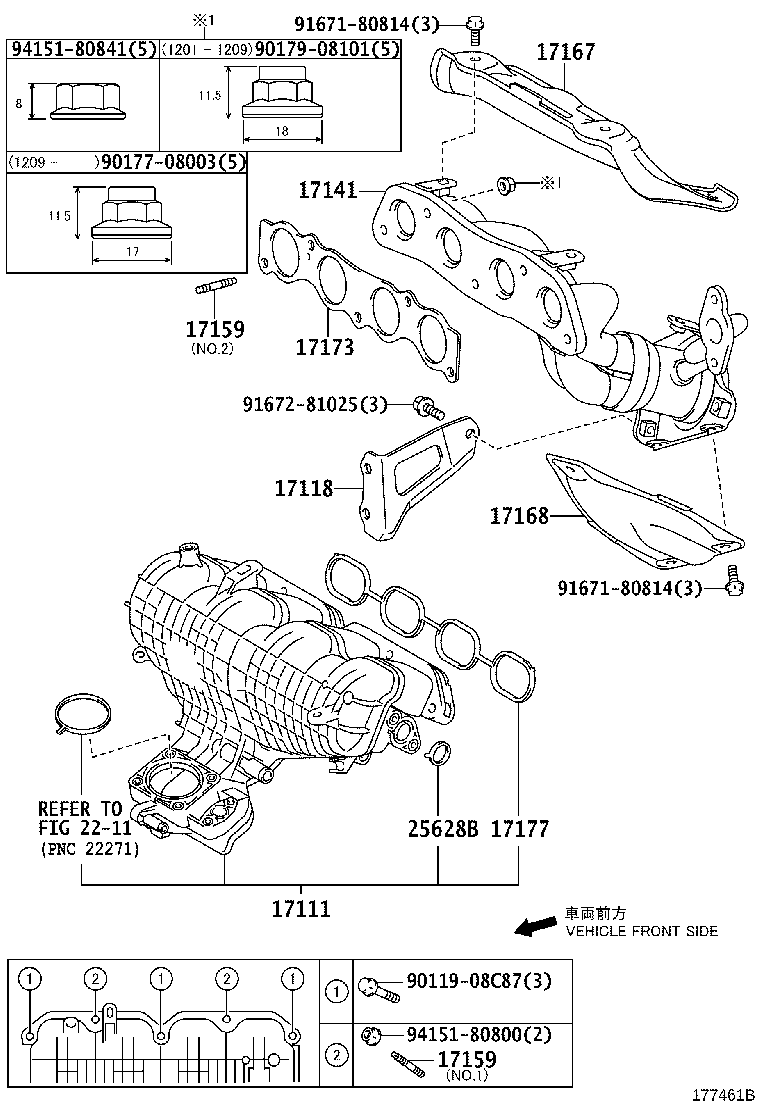

Click highlighted areas on diagram

diagram 17111 17118 17141 17159 17159 17167 17168 17173 17177 2211 25628B 9011908C87 9017708003 9017908101 9167180814 9167180814 9167281025 9415180800 9415180841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-37053

2ZRFXE..ZVW35

 1
17120-37054

2ZRFXE..ZVW35

 1
17120-37052

2ZRFXE..ZVW35

 1
17118 - STAY, MANIFOLD
17118-37080

2ZRFXE..ZVW35

 1
17141 - MANIFOLD, EXHAUST
17141-37150

2ZRFXE..ZVW35

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2ZRFXE..ZVW35

NO.2

 5
90126-08026

2ZRFXE..ZVW35

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2ZRFXE..ZVW35

NO.2

 5
90126-08026

2ZRFXE..ZVW35

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37080

2ZRFXE..ZVW35

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37110

2ZRFXE..ZVW35

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

2ZRFXE..ZVW35

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030

2ZRFXE..ZVW35

 1
25628B - GASKET, EGR INLET
25628-28010

2ZRFXE..ZVW35

 1
Common parts
90119-08C87
90177-08003
90179-08101
91671-80814
91672-81025
94151-80800
94151-80841
Linked diagrams
2211
