ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)

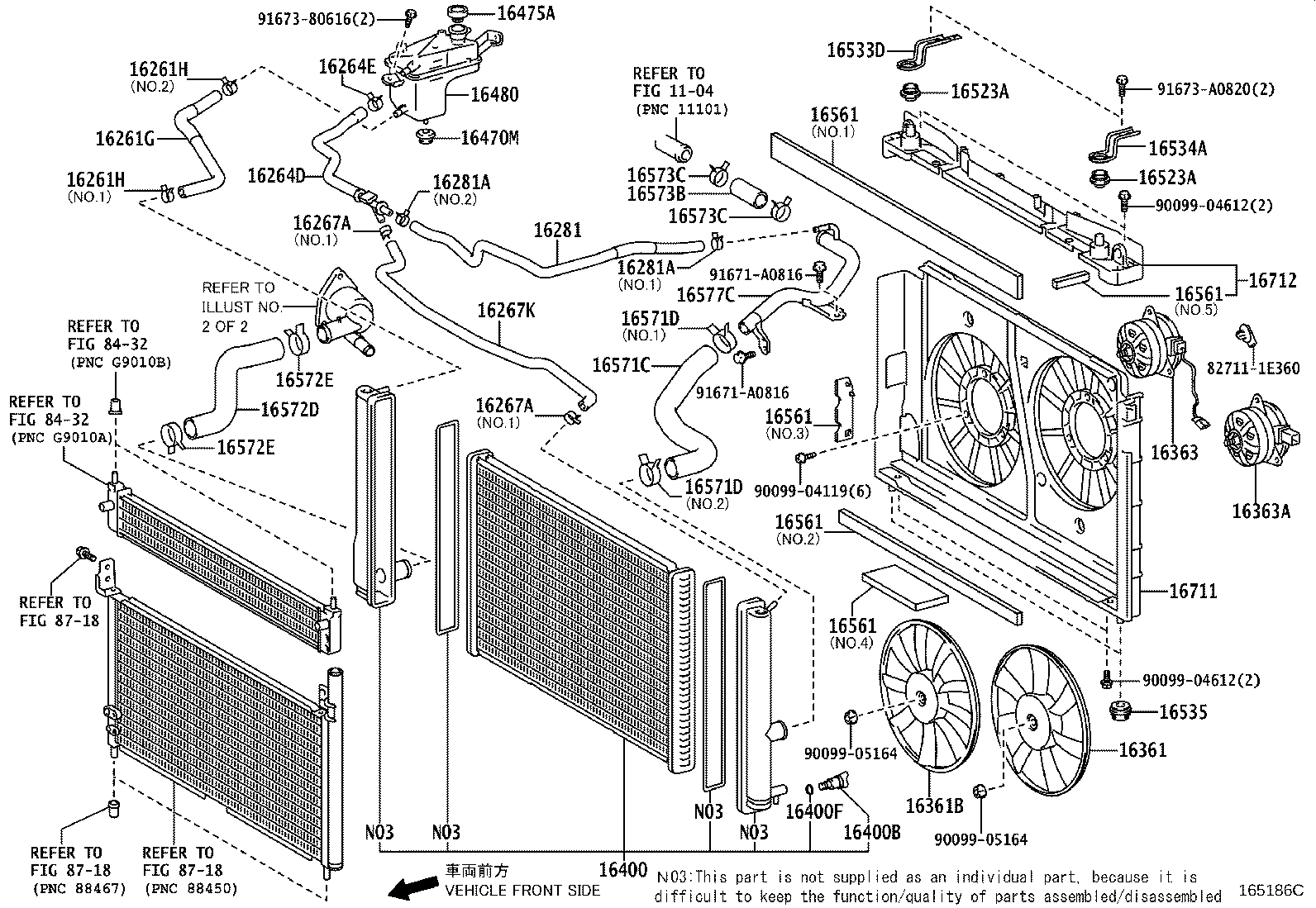

ILLUST NO. 1 OF 2(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-37070 |
2ZRFXE..ZVW35 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42201 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 96136-42501 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42201 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 96136-42501 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37080 |
2ZRFXE..ZVW35 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
2ZRFXE..ZVW35 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFXE..ZVW35 NO.2 |
2 | ||
| 90467-15022 |
2ZRFXE..ZVW35 NO.1 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFXE..ZVW35 NO.2 |
2 | ||
| 90467-15022 |
2ZRFXE..ZVW35 NO.1 |
2 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37030 |
2ZRFXE..ZVW35 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-37030 |
2ZRFXE..ZVW35 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41901 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 96137-41701 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41901 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 96137-41701 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28360 |
2ZRFXE..ZVW35 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-37020 |
2ZRFXE..ZVW35 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37230 |
2ZRFXE..ZVW35 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFXE..ZVW35 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFXE..ZVW35 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ZRFXE..ZVW35 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-37011 |
2ZRFXE..ZVW35 |
1 | ||
| 16475-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 16480 - RESERVE TANK ASSY, RADIATOR W/O CAP | ||||
| 16480-28080 |
2ZRFXE..ZVW35 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21050 |
2ZRFXE..ZVW35 |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21050 |
2ZRFXE..ZVW35 |
2 | ||
| 16533D - SUPPORT, RADIATOR, RH | ||||
| 16533-28051 |
2ZRFXE..ZVW35 |
1 | ||
| 16534A - SUPPORT, RADIATOR, LH | ||||
| 16534-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2ZRFXE..ZVW35 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-37040 |
2ZRFXE..ZVW35 NO.4 |
1 | ||
| 16561-37050 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 16561-37031 |
2ZRFXE..ZVW35 NO.3 |
1 | ||
| 16561-37070 |
2ZRFXE..ZVW35 NO.5 |
1 | ||
| 16561-37020 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-37040 |
2ZRFXE..ZVW35 NO.4 |
1 | ||
| 16561-37050 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 16561-37031 |
2ZRFXE..ZVW35 NO.3 |
1 | ||
| 16561-37070 |
2ZRFXE..ZVW35 NO.5 |
1 | ||
| 16561-37020 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-37040 |
2ZRFXE..ZVW35 NO.4 |
1 | ||
| 16561-37050 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 16561-37031 |
2ZRFXE..ZVW35 NO.3 |
1 | ||
| 16561-37070 |
2ZRFXE..ZVW35 NO.5 |
1 | ||
| 16561-37020 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-37040 |
2ZRFXE..ZVW35 NO.4 |
1 | ||
| 16561-37050 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 16561-37031 |
2ZRFXE..ZVW35 NO.3 |
1 | ||
| 16561-37070 |
2ZRFXE..ZVW35 NO.5 |
1 | ||
| 16561-37020 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-37040 |
2ZRFXE..ZVW35 NO.4 |
1 | ||
| 16561-37050 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 16561-37031 |
2ZRFXE..ZVW35 NO.3 |
1 | ||
| 16561-37070 |
2ZRFXE..ZVW35 NO.5 |
1 | ||
| 16561-37020 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-37140 |
2ZRFXE..ZVW35 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 96136-44301 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 96136-44301 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-37120 |
2ZRFXE..ZVW35 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ZRFXE..ZVW35 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ZRFXE..ZVW35 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-37050 |
2ZRFXE..ZVW35 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
2ZRFXE..ZVW35 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
2ZRFXE..ZVW35 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-37020 |
2ZRFXE..ZVW35 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-37040 |
2ZRFXE..ZVW35 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-37050 |
2ZRFXE..ZVW35 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 91671-A0816 | ||||
| 91673-80616 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8432 | ||||
| 8718 | ||||

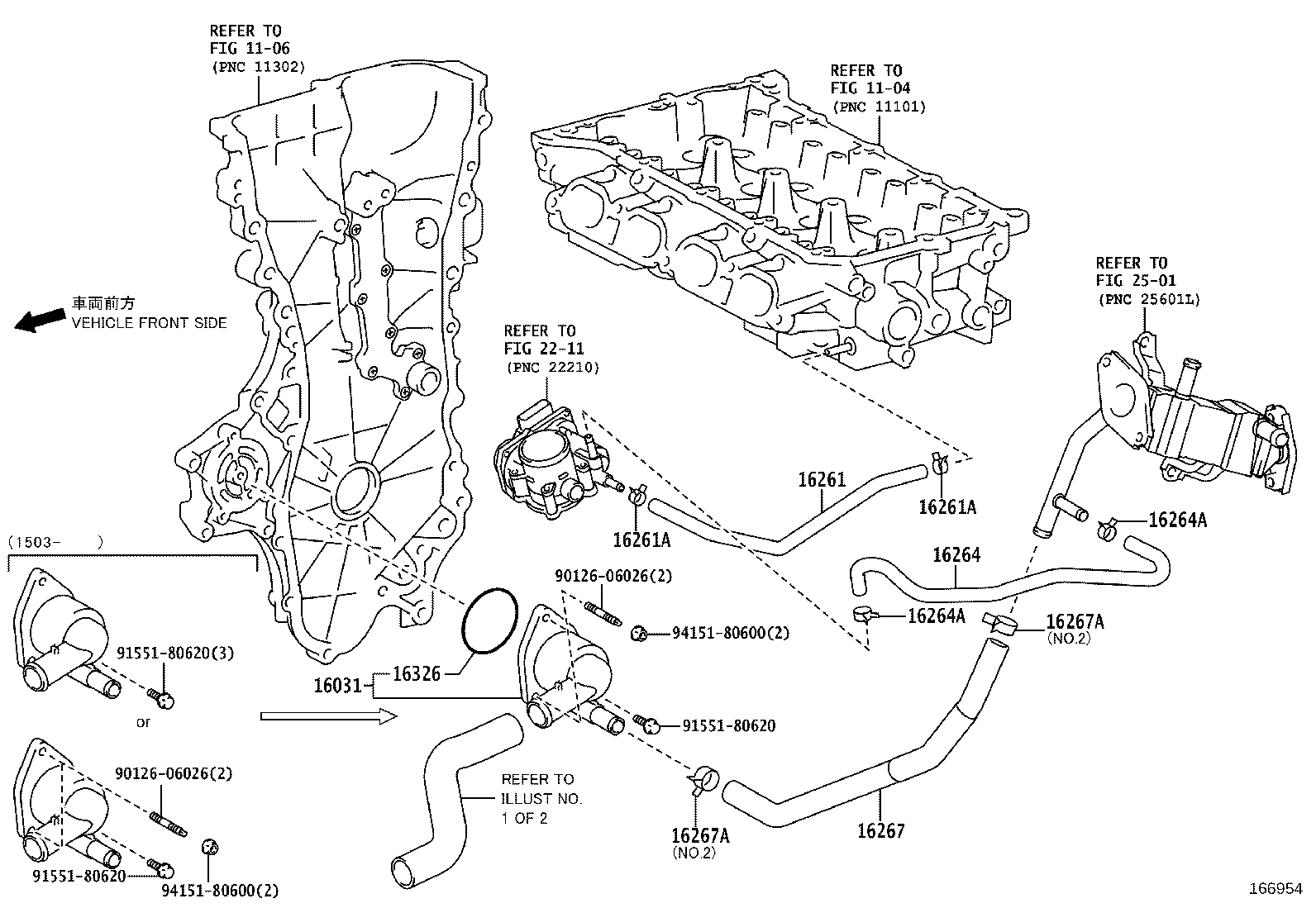

ILLUST NO. 2 OF 2(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37081 |
2ZRFXE..ZVW35 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFXE..ZVW35 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFXE..ZVW35 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37050 |
2ZRFXE..ZVW35 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFXE..ZVW35 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFXE..ZVW35 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37050 |
2ZRFXE..ZVW35 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFXE..ZVW35 NO.2 |
2 | ||
| 90467-15022 |
2ZRFXE..ZVW35 NO.1 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZRFXE..ZVW35 NO.2 |
2 | ||
| 90467-15022 |
2ZRFXE..ZVW35 NO.1 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37020 |
2ZRFXE..ZVW35 |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 91551-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1106 | ||||
| 2211 | ||||
| 2501 | ||||
