Toyota Prius(plug-in hbd) ZVW35 ENGINE OVERHAUL GASKET KIT

Home Blog About Contact Search

ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015

Engine 2ZRFXE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

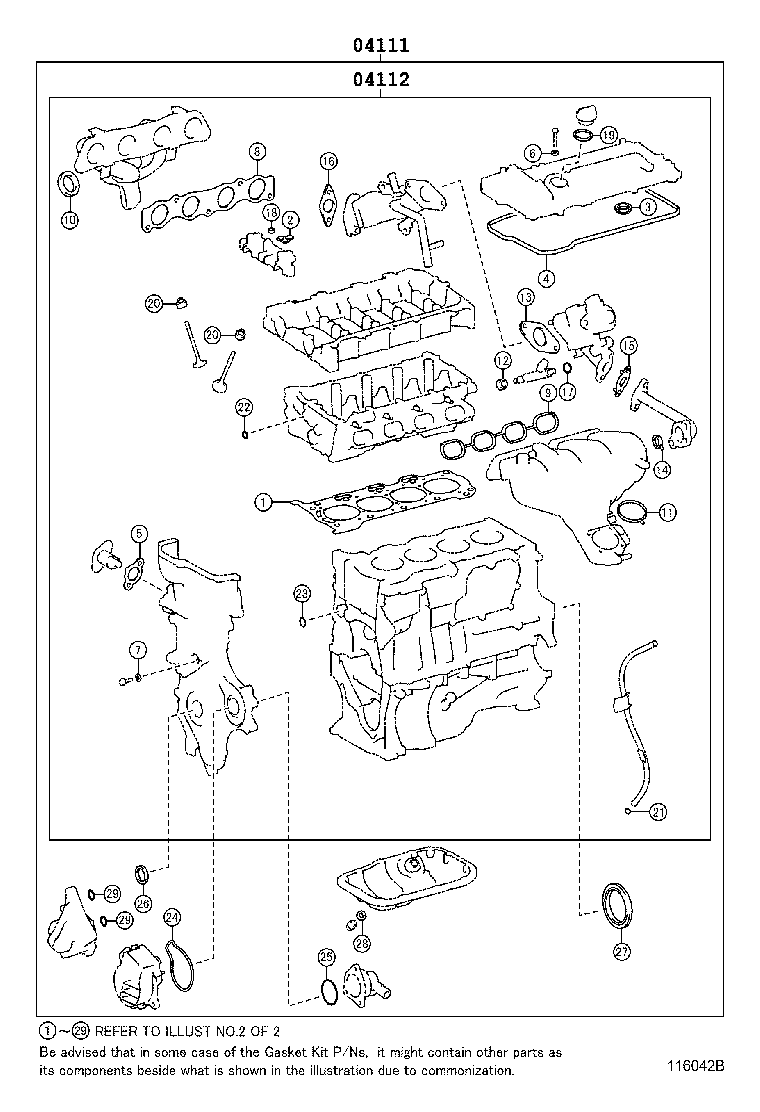

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-37312	2ZRFXE..ZVW35	01/2012 - 02/2012	1
04111-37313	2ZRFXE..ZVW35	03/2012 - 08/2014	1
04111-37315	2ZRFXE..ZVW35	02/2015 - 06/2015	1
04111-37314	2ZRFXE..ZVW35	08/2014 - 02/2015	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-37251	2ZRFXE..ZVW35	01/2012 - 02/2012	1
04112-37253	2ZRFXE..ZVW35	02/2015 - 06/2015	1
04112-37252	2ZRFXE..ZVW35	03/2012 - 02/2015	1

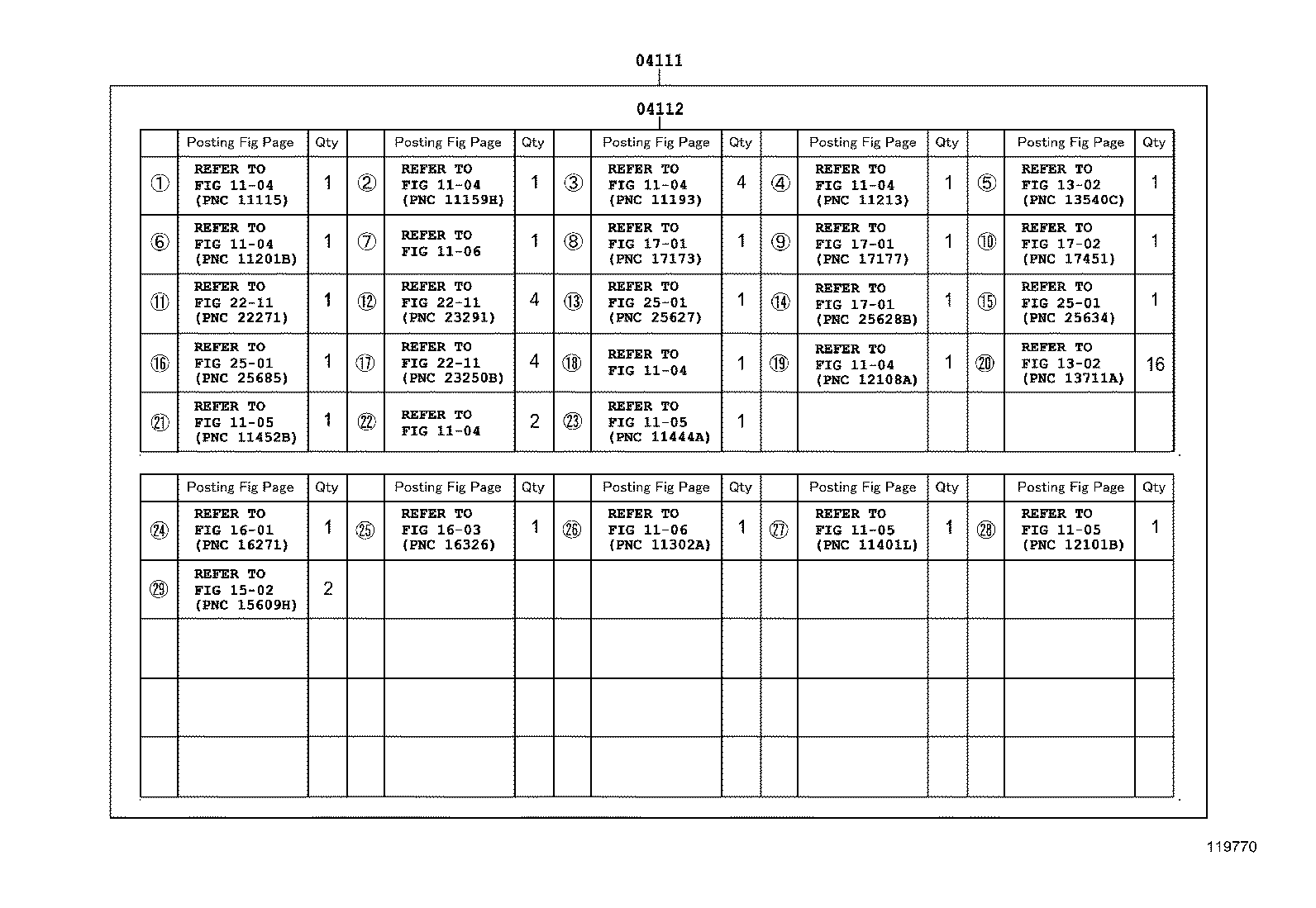

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-37312	2ZRFXE..ZVW35	01/2012 - 02/2012	1
04111-37313	2ZRFXE..ZVW35	03/2012 - 08/2014	1
04111-37315	2ZRFXE..ZVW35	02/2015 - 06/2015	1
04111-37314	2ZRFXE..ZVW35	08/2014 - 02/2015	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-37251	2ZRFXE..ZVW35	01/2012 - 02/2012	1
04112-37253	2ZRFXE..ZVW35	02/2015 - 06/2015	1
04112-37252	2ZRFXE..ZVW35	03/2012 - 02/2015	1
Linked diagrams
1104
1105
1106
1302
1502
1601
1603
1701
1702
2211
2501
