TCR20L-RFSGKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

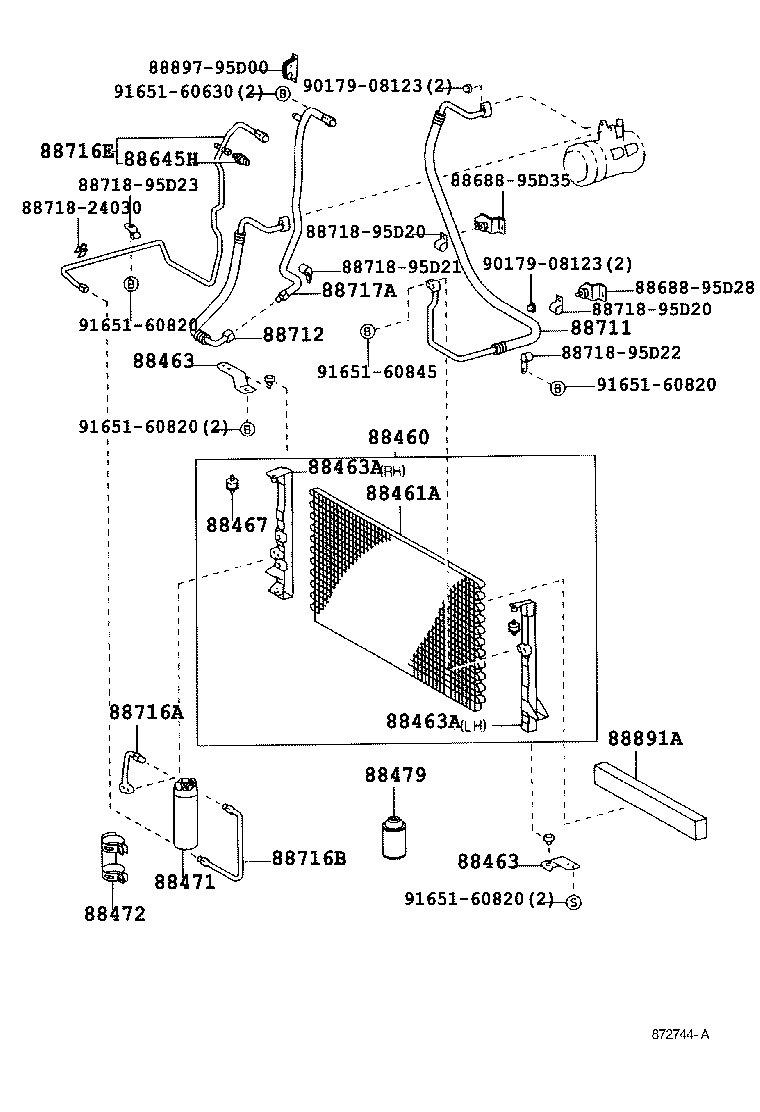

ILLUST NO. 1 OF 3(9001-9308)

Click highlighted areas on diagram

diagram 88460 88461A 88463 88463 88463A 88463A 88467 88471 88472 88479 88645H 8868895D28 8868895D35 88711 88712 88716A 88716B 88716E 88717A 8871824030 8871895D20 8871895D20 8871895D21 8871895D22 8871895D23 88891A 8889795D00 9017908123 9017908123 9165160630 9165160820 9165160820 9165160820 9165160820 9165160845
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28220

TCR10,20

 1
88460-95D08

TCR10,20

 1
88460-28220

TCR20..USA;TCR10..05S;TCR10..07S..USA

 1
88461A - CORE, COOLER CONDENSER
88461-95D04

TCR10,20

 1
88461-28080

TCR10,20

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-95D16

TCR10,20

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-95D16

TCR10,20

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-95D13

TCR10,20

RH

 1
88463-95D14

TCR10,20

LH

 1
88463-95D15

TCR10,20

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-95D13

TCR10,20

RH

 1
88463-95D14

TCR10,20

LH

 1
88463-95D15

TCR10,20

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28010

TCR10,20

 2
88467-89103

TCR10,20

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28030

TCR10,20

 1
88471-95J00

TCR10,20

W(CAP CAUTION PLATE)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95D03

TCR10,20

 1
88645H - SWITCH, PRESSURE NO.1
88645-30281

TCR10,20

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95D13

TCR10,20

 1
88711-28290

TCR10,20

NO.1

 1
88711-28290

TCR10,20

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95D04

TCR10,20

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2J520

TCR10,20

 1
88716-95D25

TCR10,20

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2J050

TCR20..USA;TCR10..05S;TCR10..07S..USA

 1
88716-2J050

TCR10,20

 1
88716-95D26

TCR10,20

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-28220

TCR10,20..07S..USA

W(COOL BOX)

 1
88716-95D35

TCR10,20

DUAL AIR CONDITIONER

 1
88716-28220

TCR10,20

W(COOL BOX & SINGLE AIR CONDITIONER);DUAL & W(COOL BOX)

 1
88716-28210

TCR10,20..07S..USA

 1
88716-95D34

TCR10,20

SINGLE AIR CONDITIONER

 1
88716-2J090

TCR10,20..07S..USA..EFI

 1
88716-28200

TCR10,20

SINGLE AIR CONDITIONER

 1
88716-2J100

TCR10,20..07S..USA..EFI

W(COOL BOX)

 1
88716-28210

TCR10,20

DUAL AIR CONDITIONER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95D19

TCR10,20

SINGLE

 1
88717-28150

TCR10,20

SINGLE

 1
88717-95D20

TCR10,20

SINGLE & W(COOL BOX) OR DUAL

 1
88717-28160

TCR10,20

SINGLE & W(COOL BOX) OR DUAL

 1
88717-28160

TCR10,20..07S..USA

 1
88717-28720

TCR10,20..USA..EFI

 1
88891A - PACKING A (FOR COOLER)
88578-28140

TCR10;TCR20..07S;TCR20..05S..USA

 2
88578-95D04

TCR10,20

40X50

 1
Common parts
88688-95D28
88688-95D35
88718-24030
88718-95D20
88718-95D21
88718-95D22
88718-95D23
88897-95D00
90179-08123
91651-60630
91651-60820
91651-60845

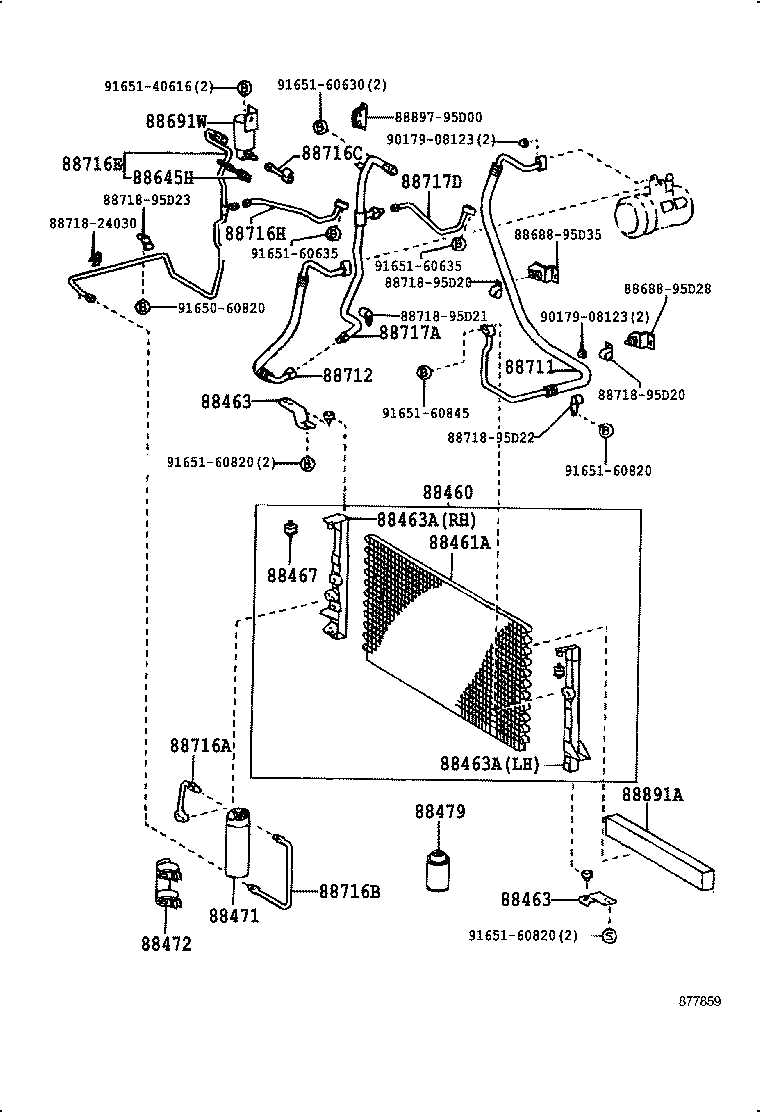

ILLUST NO. 1 OF 3(9001-9308)

Click highlighted areas on diagram

W(COOL BOX)

diagram 88460 88461A 88463 88463 88463A 88463A 88467 88471 88472 88479 88645H 8868895D28 8868895D35 88691W 88711 88712 88716A 88716B 88716C 88716E 88716H 88717A 88717D 8871824030 8871895D20 8871895D20 8871895D21 8871895D22 8871895D23 88891A 8889795D00 9017908123 9017908123 9165060820 9165140616 9165160630 9165160635 9165160635 9165160820 9165160820 9165160820 9165160845
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28220

TCR10,20

 1
88460-95D08

TCR10,20

 1
88460-28220

TCR20..USA;TCR10..05S;TCR10..07S..USA

 1
88461A - CORE, COOLER CONDENSER
88461-95D04

TCR10,20

 1
88461-28080

TCR10,20

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-95D16

TCR10,20

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-95D16

TCR10,20

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-95D13

TCR10,20

RH

 1
88463-95D14

TCR10,20

LH

 1
88463-95D15

TCR10,20

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-95D13

TCR10,20

RH

 1
88463-95D14

TCR10,20

LH

 1
88463-95D15

TCR10,20

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28010

TCR10,20

 2
88467-89103

TCR10,20

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28030

TCR10,20

 1
88471-95J00

TCR10,20

W(CAP CAUTION PLATE)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95D03

TCR10,20

 1
88645H - SWITCH, PRESSURE NO.1
88645-30281

TCR10,20

 1
88691W - VALVE, MAGNET
88690-28050

TCR10,20

 1
88690-28260

TCR10,20

 1
88690-28051

TCR10,20..ATM

 1
88690-28051

TCR10,20

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95D13

TCR10,20

 1
88711-28290

TCR10,20

NO.1

 1
88711-28290

TCR10,20

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95D04

TCR10,20

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2J520

TCR10,20

 1
88716-95D25

TCR10,20

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2J050

TCR20..USA;TCR10..05S;TCR10..07S..USA

 1
88716-2J050

TCR10,20

 1
88716-95D26

TCR10,20

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95D40

TCR10,20

 1
88716-95D40

TCR10,20

NO.2

 1
88716-95D36

TCR10,20

NO.1

 1
88716-2J280

TCR10,20

 1
88716-95D40

TCR10,20..ATM

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-28220

TCR10,20..07S..USA

W(COOL BOX)

 1
88716-95D35

TCR10,20

DUAL AIR CONDITIONER

 1
88716-28220

TCR10,20

W(COOL BOX & SINGLE AIR CONDITIONER);DUAL & W(COOL BOX)

 1
88716-28210

TCR10,20..07S..USA

 1
88716-95D34

TCR10,20

SINGLE AIR CONDITIONER

 1
88716-2J090

TCR10,20..07S..USA..EFI

 1
88716-28200

TCR10,20

SINGLE AIR CONDITIONER

 1
88716-2J100

TCR10,20..07S..USA..EFI

W(COOL BOX)

 1
88716-28210

TCR10,20

DUAL AIR CONDITIONER

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-95D47

TCR10,20

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95D19

TCR10,20

SINGLE

 1
88717-28150

TCR10,20

SINGLE

 1
88717-95D20

TCR10,20

SINGLE & W(COOL BOX) OR DUAL

 1
88717-28160

TCR10,20

SINGLE & W(COOL BOX) OR DUAL

 1
88717-28160

TCR10,20..07S..USA

 1
88717-28720

TCR10,20..USA..EFI

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-95D27

TCR10,20

 1
88891A - PACKING A (FOR COOLER)
88578-28140

TCR10;TCR20..07S;TCR20..05S..USA

 2
88578-95D04

TCR10,20

40X50

 1
Common parts
88688-95D28
88688-95D35
88718-24030
88718-95D20
88718-95D21
88718-95D22
88718-95D23
88897-95D00
90179-08123
91650-60820
91651-40616
91651-60630
91651-60635
91651-60820
91651-60845

ILLUST NO. 2 OF 3(9001-9410)

Click highlighted areas on diagram

diagram 62429C 62429C 8537495701 8714 8857895J09 8868895D43 88691K 88712B 8871895D24 8871895D26 8871895D27 8871895D28 8871895D29 8871895D35 88721A 88726A 88726A 88726B 88726E 88727A 88727B 88727E 88727E 8889528010 8889528010 8889728090 8889795D01 88899H 88899H 9015960038 9018906018 9095001189 9095001417 9165140616 9165140616 9165140616 9165140616 9165140816 9165140816 9165140816 9165140816 9331915008
Part # Description Qty Price
62429C - COVER, CENTER PILLAR SERVICE HOLE
62429-95D00

TCR10,20

 1
62429C - COVER, CENTER PILLAR SERVICE HOLE
62429-95D00

TCR10,20

 1
88691K - VALVE ASSY, MAGNET
88690-95D02

TCR10,20

 1
88690-28270

TCR10,20..EFI

 1
88690-28270

TCR10,20

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-95D05

TCR10,20

 1
88721A - HOSE, LIQUID, A
88721-28040

TCR10,20

 1
88721-95D09

TCR10,20

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95D43

TCR10,20

DUAL & W(COOL BOX)

 1
88716-95D42

TCR10,20..MTM;TCR10,20..07S..USA

 1
88716-95D42

TCR10,20

DUAL

 1
88716-2J190

TCR10,20..EFI

 1
88716-95D43

TCR10,20..07S..USA

W(COOL BOX)

 1
88716-2J190

TCR10,20..07S..USA..EFI

 1
88716-2J200

TCR10,20..07S..USA..EFI

W(COOL BOX)

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95D43

TCR10,20

DUAL & W(COOL BOX)

 1
88716-95D42

TCR10,20..MTM;TCR10,20..07S..USA

 1
88716-95D42

TCR10,20

DUAL

 1
88716-2J190

TCR10,20..EFI

 1
88716-95D43

TCR10,20..07S..USA

W(COOL BOX)

 1
88716-2J190

TCR10,20..07S..USA..EFI

 1
88716-2J200

TCR10,20..07S..USA..EFI

W(COOL BOX)

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95D30

TCR10,20

 1
88716-2J310

TCR10,20..EFI

 1
88726E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95D32

TCR10,20

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88715-95D12

TCR10,20

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-28870

TCR10,20

 1
88717-95D17

TCR10,20

 1
88727E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-95D23

TCR10,20

DUAL

 1
88717-95D24

TCR10,20..07S..USA

W(COOL BOX)

 1
88717-95D23

TCR10,20..MTM;TCR10,20..07S..USA

 1
88717-95D24

TCR10,20

DUAL & W(COOL BOX)

 1
88717-28790

TCR10,20..07S..USA..EFI

W(COOL BOX)

 1
88717-28780

TCR10,20..07S..USA..EFI

 1
88717-28780

TCR10,20..EFI

 1
88727E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-95D23

TCR10,20

DUAL

 1
88717-95D24

TCR10,20..07S..USA

W(COOL BOX)

 1
88717-95D23

TCR10,20..MTM;TCR10,20..07S..USA

 1
88717-95D24

TCR10,20

DUAL & W(COOL BOX)

 1
88717-28790

TCR10,20..07S..USA..EFI

W(COOL BOX)

 1
88717-28780

TCR10,20..07S..USA..EFI

 1
88717-28780

TCR10,20..EFI

 1
88899H - MOULDING, PROTECTOR
88899-28120

TCR10,20

 2
88899H - MOULDING, PROTECTOR
88899-28120

TCR10,20

 2
Common parts
85374-95701
88578-95J09
88688-95D43
88718-95D24
88718-95D26
88718-95D27
88718-95D28
88718-95D29
88718-95D35
88895-28010
88897-28090
88897-95D01
90159-60038
90189-06018
90950-01189
90950-01417
91651-40616
91651-40816
93319-15008
Linked diagrams
8714
