TCR20L-RESDVA (1994)
Toyota Previa
Production
Jan 1994
-
Jul 1997
Engine
2TZFZE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9503-9707)TCR20

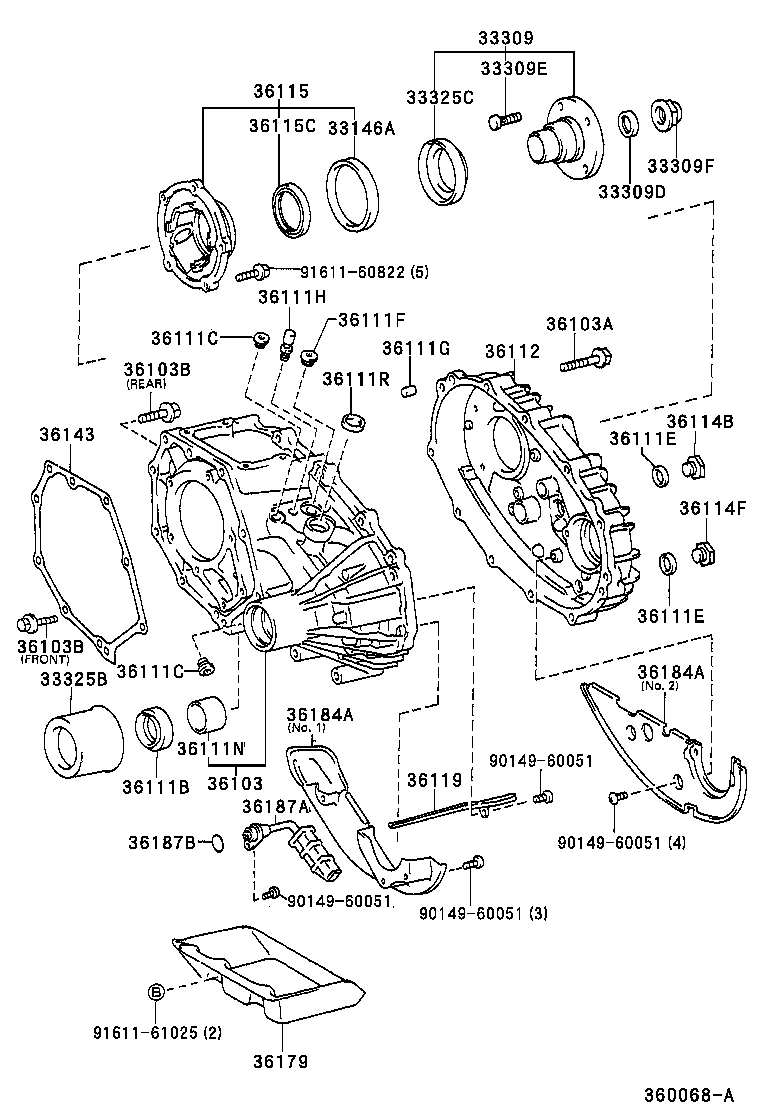

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-28020 |
TCR20 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-28020 |
TCR20 |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
TCR20 |
1 | ||
| 33309E - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
TCR20 |
4 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90179-20010 |
TCR20 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-28020 |
TCR20 |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-28010 |
TCR20 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-28020 |
TCR20 |
1 | ||
| 36103-26020 |
TCR20 |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-10610 |
TCR20 *10-1.25PX55-30 |
11 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
TCR20 *10-1.25PX47-30 |
8 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
TCR20 *10-1.25PX47-30 |
8 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-38039 |
TCR20 |
1 | ||
| 90311-37003 |
TCR20 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12014 |
TCR20 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12014 |
TCR20 |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
TCR20 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
TCR20 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14008 |
TCR20 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
TCR20 L=14,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
TCR20 |
1 | ||
| 36111N - BUSH (FOR TRANSFER CASE) | ||||
| 90999-72023 |
TCR20 |
1 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 96411-12800 |
TCR20 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-28040 |
TCR20 |
1 | ||
| 36112-26020 |
TCR20 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
TCR20 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
TCR20 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-28020 |
TCR20 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-54001 |
TCR20 |
1 | ||
| 90311-52021 |
TCR20 |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-25010 |
TCR20 |
1 | ||
| 36119-28010 |
TCR20 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-28020 |
TCR20 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-28020 |
TCR20 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-28010 |
TCR20 |
1 | ||
| 36184-26010 |
TCR20 NO.2 |
1 | ||
| 36184-28010 |
TCR20 NO.2 |
1 | ||
| 36184-28030 |
TCR20 NO.1 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-28010 |
TCR20 |
1 | ||
| 36184-26010 |
TCR20 NO.2 |
1 | ||
| 36184-28010 |
TCR20 NO.2 |
1 | ||
| 36184-28030 |
TCR20 NO.1 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-25010 |
TCR20 |
1 | ||
| 36187B - RING, O (FOR TRANSFER OIL STRAINER) | ||||
| 96721-24017 |
TCR20 |
1 | ||
| Common parts | ||||
| 90149-60051 | ||||
| 91611-60822 | ||||
| 91611-61025 | ||||
(9001-9503)TCR20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-28020 |
TCR20 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-28020 |
TCR20 |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
TCR20 |
1 | ||
| 33309E - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
TCR20 |
4 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90179-20010 |
TCR20 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-28020 |
TCR20 |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-28010 |
TCR20 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-28020 |
TCR20 |
1 | ||
| 36103-26020 |
TCR20 |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-10610 |
TCR20 *10-1.25PX55-30 |
11 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
TCR20 *10-1.25PX47-30 |
8 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-10615 |
TCR20 *10-1.25PX47-30 |
8 | ||
| 36104K - SEPARATOR SUB-ASSY, TRANSFER OIL | ||||
| 36104-28040 |
TCR20 |
1 | ||
| 36104L - RING, O (FOR TRANSFER OIL SEPARATOR) | ||||
| 96721-24016 |
TCR20 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-38039 |
TCR20 |
1 | ||
| 90311-37003 |
TCR20 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12014 |
TCR20 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-12014 |
TCR20 |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
TCR20 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
TCR20 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14008 |
TCR20 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
TCR20 L=14,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
TCR20 |
1 | ||
| 36111N - BUSH (FOR TRANSFER CASE) | ||||
| 90999-72023 |
TCR20 |
1 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 96411-12800 |
TCR20 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-28040 |
TCR20 |
1 | ||
| 36112-26020 |
TCR20 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
TCR20 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
TCR20 |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-28020 |
TCR20 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-54001 |
TCR20 |
1 | ||
| 90311-52021 |
TCR20 |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-25010 |
TCR20 |
1 | ||
| 36119-28010 |
TCR20 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-28020 |
TCR20 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-28020 |
TCR20 |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-28010 |
TCR20 |
1 | ||
| 36184-26010 |
TCR20 NO.2 |
1 | ||
| 36184-28010 |
TCR20 NO.2 |
1 | ||
| 36184-28030 |
TCR20 NO.1 |
1 | ||
| Common parts | ||||
| 90149-60051 | ||||
| 91611-60822 | ||||
| 91611-61025 | ||||
