TCR20L-RESDVA (1994)

Toyota Previa

Production Jan 1994 - Jul 1997
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9401-9707)TCR20..SPC

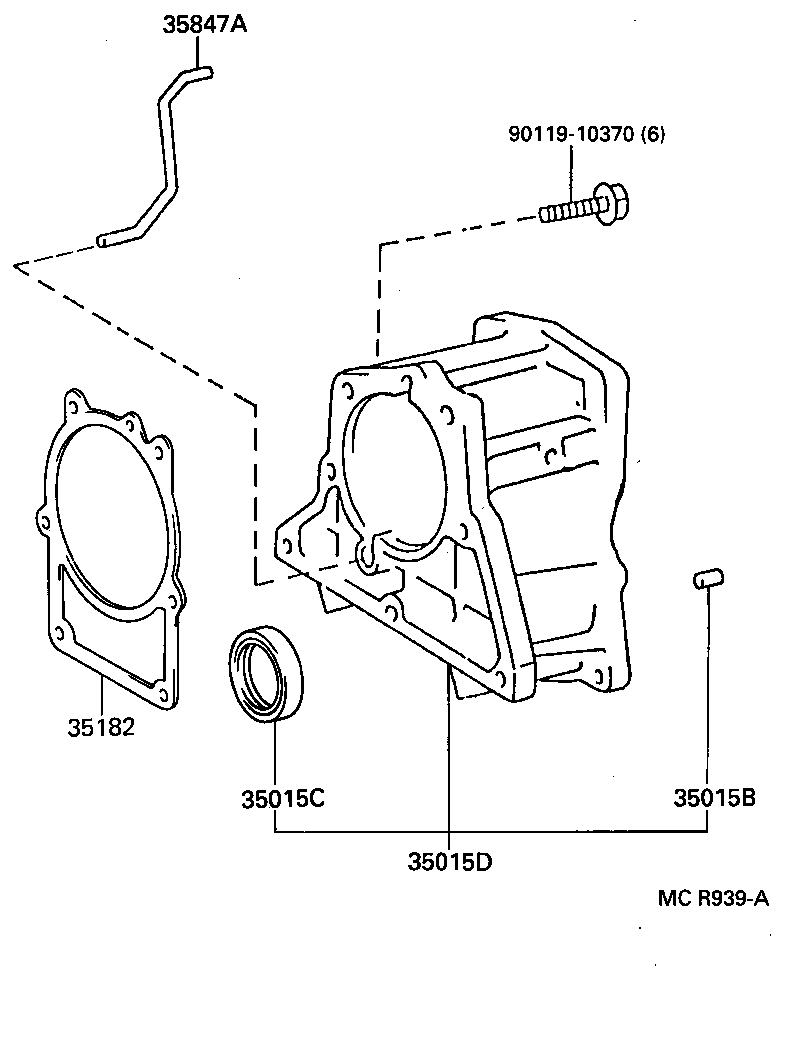

Click highlighted areas on diagram

A340F

diagram 35015B 35015C 35015D 35182 35847A 9011910370
Part # Description Qty Price
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90250-10214

TCR20..ATM

 2
35015C - SEAL, OIL(FOR TRANSMISSION CASE ADAPTER)
90310-40003

TCR20..ATM

 1
35015D - ADAPTER SUB-ASSY, TRANSMISSION CASE
35015-26020

TCR20..SPC

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

TCR10,20..ATM

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

TCR10..ATM;TCR20..SPC

 1
Common parts
90119-10370
